| Size | 3 dia. | 4 dia. | 5.4 dia. | 6.5 dia. | M4 | M5 | |||||
| Type | Shielded | Unshielded | Shielded | Unshielded | Shielded | Shielded | Unshielded | Shielded | Unshielded | Shielded | Unshielded |

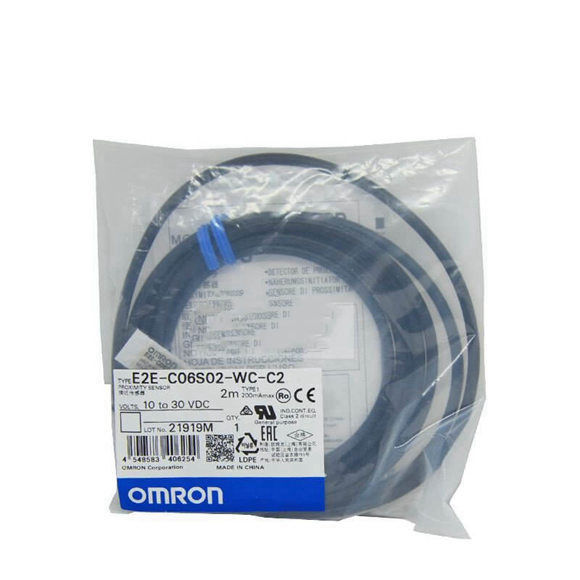

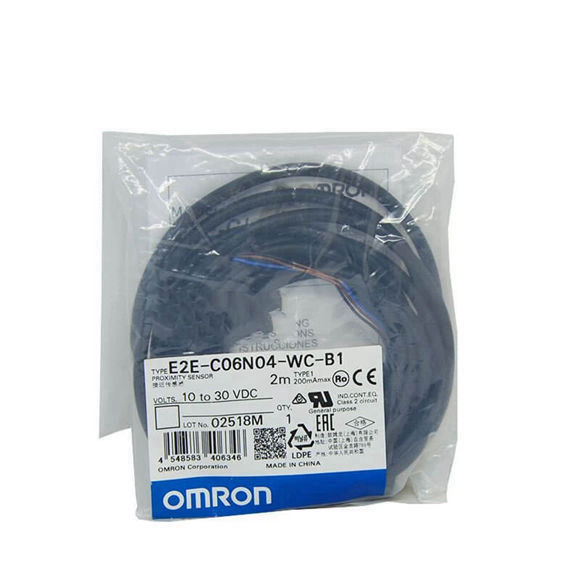

| Item Model | E2E- C03SR8@ | E2E- C03N02@ | E2E- C04S12@ | E2E- C04N03@ | E2E- C05S01@ | E2E- C06S02@ | E2E- C06N04@ | E2E- S04SR8@ | E2E- S04N02@ | E2E- S05S12@ | E2E- S05N03@ |
| Sensing distance (at 23°C) | 0.8 mm
±10% |
2 mm
±10% |
1.2 mm
±10% |
3 mm
±10% |
1mm
±10% |
2 mm
±10% |
4 mm
±10% |
0.8 mm
±10% |
2 mm
±10% |
1.2 mm
±10% |
3 mm
±10% |
| Setting distance *1 (Sensing distance × 0.7) | 0 to 0.56
mm |
0 to 1.4 mm | 0 to 0.84
mm |
0 to 2.1 mm | 0 to 0.7 mm | 0 to 1.4 mm | 0 to 2.8 mm | 0 to 0.56
mm |
0 to 1.4 mm | 0 to 0.84
mm |
0 to 2.1 mm |
| Differential travel | 15% max. of sensing distance | ||||||||||
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on page 7.) | ||||||||||
| Standard sensing object | Iron, 3 × 3
× 1 mm |
Iron, 6 × 6
× 1 mm |
Iron, 4 × 4
× 1 mm |
Iron, 9 × 9
× 1 mm |
Iron, 5.4 × 5.4
× 1 mm |
Iron, 6.5 × 6.5
× 1 mm |
Iron, 12 ´ 12
´ 1 mm |
Iron, 3 × 3
× 1 mm |
Iron, 6 × 6
× 1 mm |
Iron, 4 × 4
× 1 mm |
Iron, 9 × 9
× 1 mm |
| Response frequency *2 | 5 kHz | 3.5 kHz | 4 kHz | 2 kHz | 4 kHz | 3 kHz | 3 kHz | 5 kHz | 3.5 kHz | 4 kHz | 2 kHz |
| Power supply voltage *3 | 10 to 30 VDC (including 10% ripple (p-p)) | ||||||||||
| Current consumption | 10 mA max. | ||||||||||
| Load current | 50 mA max. | 100 mA max. | 200 mA max.
(60 to 70°C: 100 mA) |
50 mA max. | 100 mA max. | ||||||
| Residual voltage | 2 V max. *5 | ||||||||||
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. | ||||||||||
| Operation mode | B1/B2: PNP open collector, C1/C2: NPN open collector B1/C1 models: NO, B2/C2 models: NC | ||||||||||
| Protection circuits | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection | ||||||||||
| Ambient temperature range | Operation and storage: -25 to 70°C (with no icing or condensation) | ||||||||||
| Ambient humidity range | Operation and storage: 35% to 95% (with no condensation) | ||||||||||
| Temperature influence | ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C | ||||||||||
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||||||||
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||||||||
| Dielectric strength | 500 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||||||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||||||||
| Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions | ||||||||||
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant *6 | ||||||||||
| Pre-wired Models | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| M8 Pre-wired Connector Models |
Yes |
Yes |
No |
Yes |
Yes |
Yes |
|||||
| M8 Connector Models | No | Yes | No | Yes | No | Yes | |||||
| Pre-wired Models | Approx. 25 g | Approx. 30 g | Approx. 35 g | Approx. 35 g | Approx. 35 g | Approx. 55 g | Approx. 55 g | Approx. 30 g | Approx. 30 g | Approx. 35 g | Approx. 40 g |
| M8 Pre-wired Connector Models | Approx. 20 g | Approx. 20 g | Approx. 15 g | Approx. 20 g |
— |
Approx. 20 g | Approx. 25 g | Approx. 20 g | Approx. 20 g | Approx. 20 g | Approx. 20 g |
| M8 Connector Models | — | — | Approx. 10 g | Approx. 10 g | — | Approx. 10 g | Approx. 15 g | — | — | Approx. 15 g | Approx. 15 g |
