| Size | M8 | M12 | M18 | M30 | ||||
| Shielded | Shielded | Unshielded | Shielded | Unshielded | Shielded | Unshielded | Shielded | Unshielded |

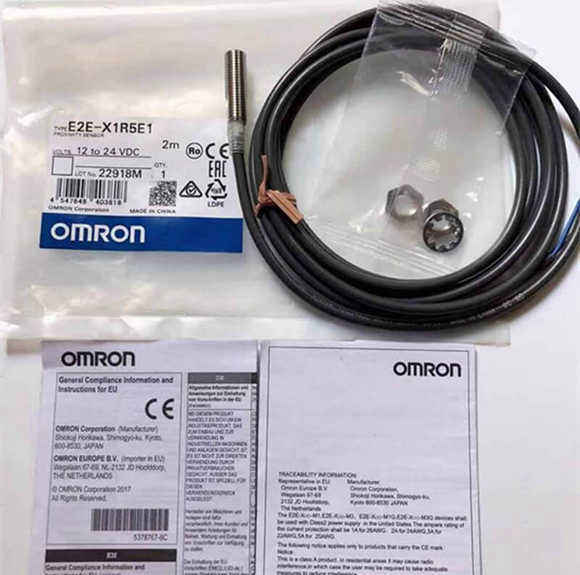

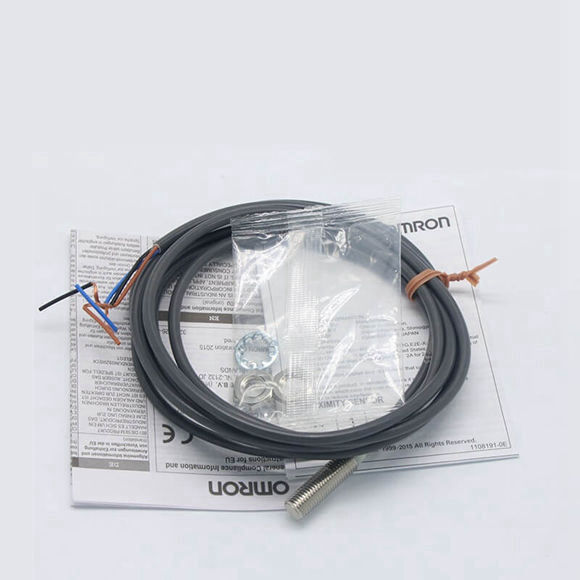

| Item Model | E2E
-X1R5E@/F@ |
E2E
-X2ME@/F@ |
E2E
-X2E@/F@ |

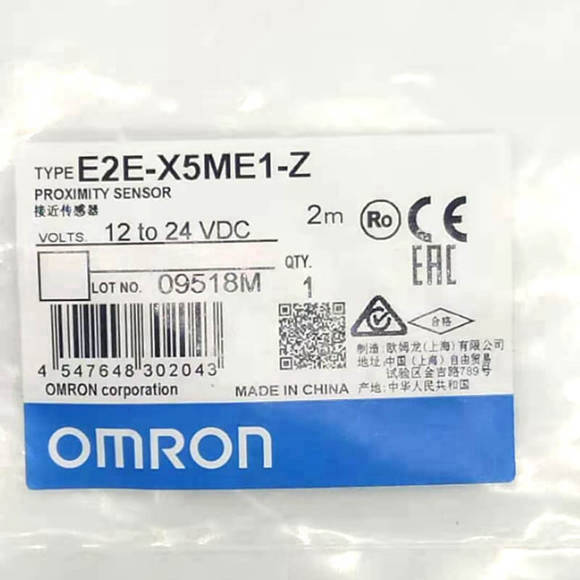

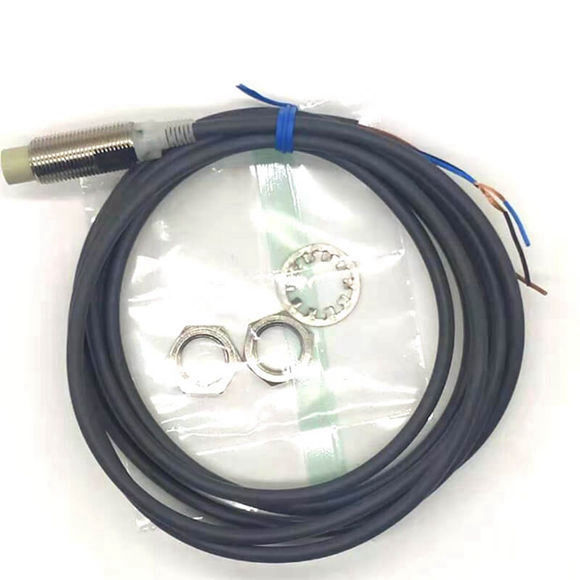

E2E
-X5ME@/F@ |
E2E
-X5E@/F@ |
E2E
-X10ME@/F@ |
E2E-X10E@/
F@ |
E2E
-X18ME@/F@ |
| Sensing distance | 1.5 mm ±10% | 2 mm ±10% | 5 mm ±10% | 10 mm ±10% | 18 mm ±10% | |||
| Set distance | 0 to 1.2 mm | 0 to 1.6 mm | 0 to 4 mm | 0 to 8 mm | 0 to 14 mm | |||
| Differential travel | 10% max. of sensing distance | |||||||
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on page 18.) | |||||||
| Standard sensing object | Iron,
8 ´ 8 ´ 1 mm |
Iron, 12 ´ 12 ´ 1 mm | Iron,
15 ´15 ´ 1 mm |
Iron,
18 ´ 18 ´ 1 mm |
Iron, 30 ´ 30 ´ 1 mm | Iron,
54 ´ 54 ´ 1 mm |
||
| Response frequency
*1 |
2 kHz | 0.8 kHz | 1.5 kHz | 0.4 kHz | 0.6 kHz | 0.2 kHz | 0.4 kHz | 0.1 kHz |
| Power supply voltage (operating voltage range) *2 | 12 to 24 VDC, ripple(p-p): 10% max. (10 to 30 VDC)
Connector Models Used as UL-certified Models: 12 to 24 VDC, ripple (p-p): 10% max. (The operating voltage range is also the same.) *3 |
|||||||
| Current consumption | 13 mA max. | |||||||
| Load current *2 | 200 mA max. | |||||||
| Residual voltage | 2 V max. (Load current: 200 mA, Cable length: 2 m) | |||||||
| Indicators | Operation indicator (red) | |||||||
| Operation mode (with sensing object approaching) | E1/F1 Models: NO E2/F2 Models: NC
Refer to the timing charts under /O Circuit Diagrams on page 21 for details. |
|||||||
| Protection circuits | Load short-circuit protection, Surge suppressor, Reverse polarity protection | |||||||
| Ambient temperature range *2 | Operating/Storage: -40 to 85°C (with no icing or condensation) | |||||||
| Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) | |||||||
| Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C
±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
|||||||
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | |||||||
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |||||||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current carry parts and case | |||||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||||||
|
Shock resistance |
Destruction: 500 m/s2
10 times each in X, Y, and Z directions |
Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
||||||
| Degree of protection | Pre-wired Models : IEC 60529 IP67, in-house standards: oil-resistant Connector Models : IEC 60529 IP67 | |||||||
| Connection method | Pre-wired Models (Standard cable length: 2 m) and Connector Models | |||||||
