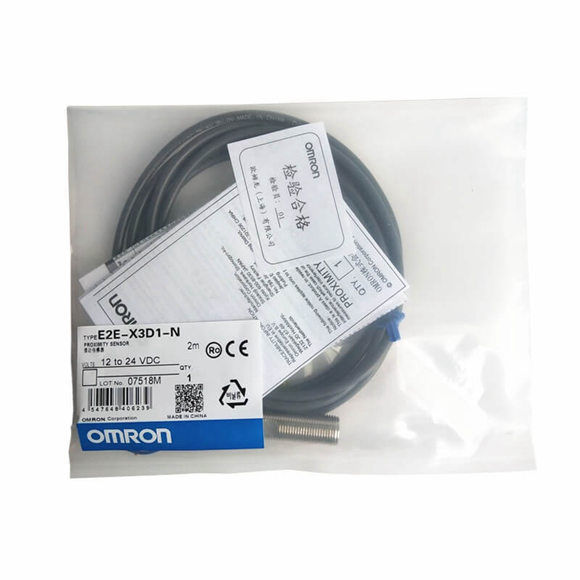

  • E2E X3D1 N 3

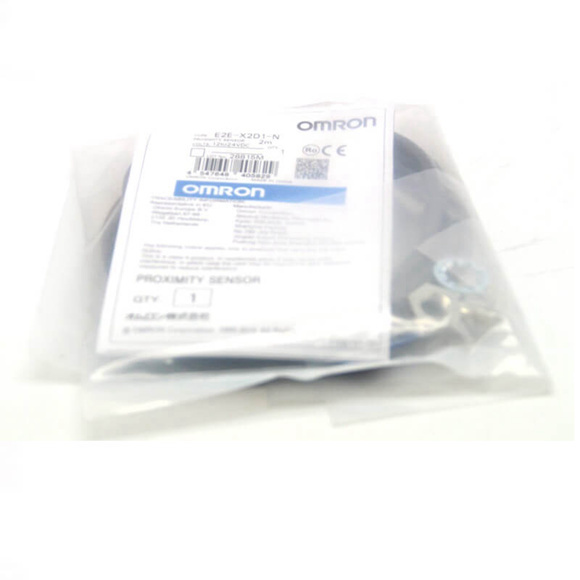

  • E2E X2D1 N 1 3

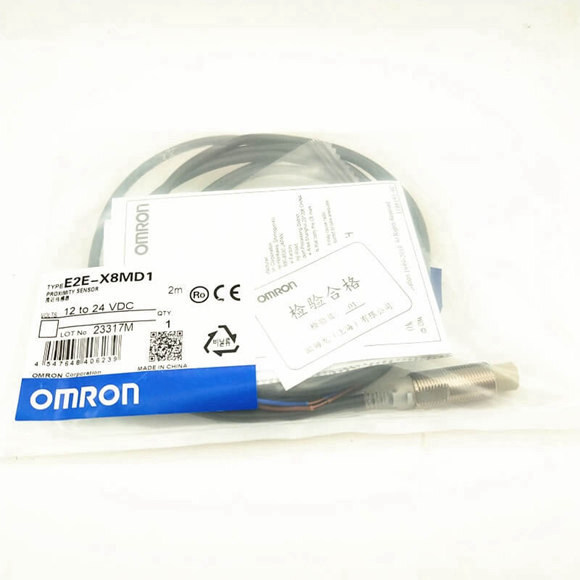

  • E2E X8MD1 3
  • E2E X2D1 N 3
  • E2E X3D1 N 3
  • E2E X2D1 N 1 3
  • E2E X8MD1 3

Omron Proximity Sensor E2E-X1R5Y1/-X1R5Y2/-X2Y1 E2E-X2Y2/-X5Y1/-X5Y2/-X10Y1

Series#: Omron Proximity Sensor

Product Details

Qty:

Specification

Size M18 M30
Shielded Shielded Unshielded Shielded Unshielded

Model E2E-X5Y[] E2E-X10MY[] E2E-X10Y[] E2E-X18MY[]
Sensing distance 5 mm ±10% 10 mm ±10% 18 mm ±10%
Set distance 0 to 4 mm 0 to 8 mm 0 to 14 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron,
18 × 18 × 1 mm
Iron, 30 × 30 × 1 mm Iron,
54 × 54 × 1 mm
Response frequency 25 Hz
Power supply voltage
(operating voltage range) *1
24 to 240 VAC (20 to 264 VAC), 50/60 Hz
Leakage current 1.7 mA max.
Control output  5 to 300 mA
Control output  Refer to Engineering Data on Data Sheet.
Indicators Operation indicator (red)
Operation mode
(with sensing object
approaching)
Y1 Models: NO
Y2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits Surge suppressor
Ambient temperature range
*1 *2
Operating/Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range Operating/storage: 35% to 95% (with no condensation)
Temperature influence ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C,
±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 4,000 VAC (M8 Models: 2,000 VAC), 50/60 Hz for 1 min between current-carrying
parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant
Connector Models: IEC 60529 IP67
Connection method Pre-wired Models (Standard cable length: 2 m) and Connector Models
Weight Approx. 130 g Approx. 175 g
Weight Approx. 40 g Approx. 90 g
