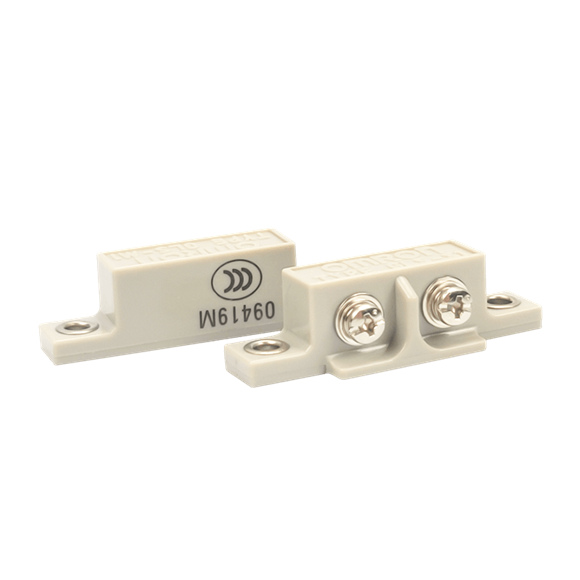

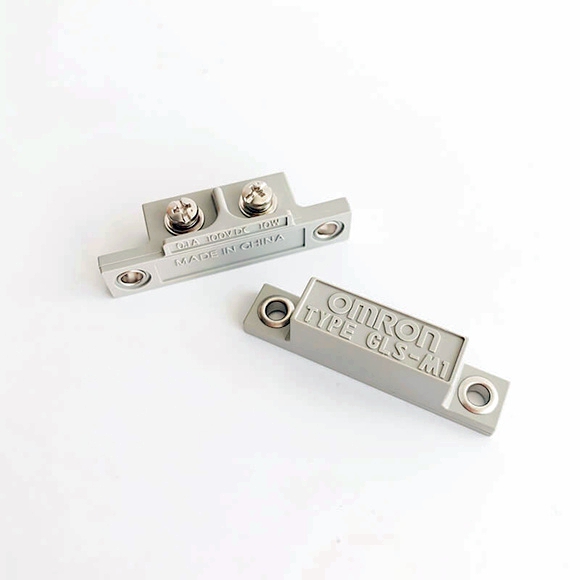

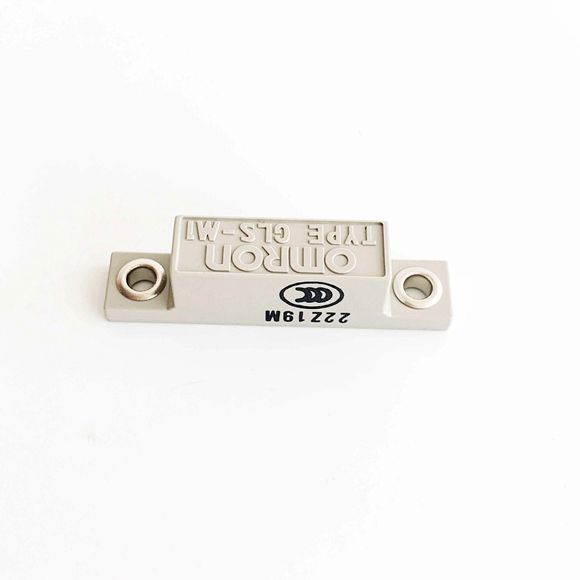

| Model | GLS-1 | GLS-1L | |
|---|---|---|---|
| Sensing distance | 15 mm *1 | ||
| Contact circuit | SPST-NO | ||
| Switching capacity *2 | Maximum operating voltage: 100 VDC Maximum operating current: 0.1 A DC Maximum switching capacity: 10 W (for both open and closed contacts) |
||
| Contact dielectric strength | 250 VDC for 1 min with a leakage current of 1 mA max. | ||
| Response frequency | 20 Hz max. | ||
| Ambient temperature range | Operating/Storage: -20 to 60°C (with no icing or condensation) | ||
| Ambient humidity range | Operating/storage: 35% to 85% (with no condensation) | ||
| Contact resistance | 150 mΩ max. | 250 mW max. (including conductor resistance of lead wire) | |
| Dielectric strength | 1,000 VAC for 1 min between terminals and case | ||
| Life expectancy | 50,000,000 times min. with 0.1-A resistive load at 24 VDC | ||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||
| Shock resistance | Destruction: 300 m/s2 3 times each in X, Y, and Z directions | ||
| Degree of protection | IP40 (IEC) | ||
| Connection method | Terminal block | Pre-wired (standard cable length: 1 m) | |
| Materials | Sensor | ABS | |
| Magnet | |||
