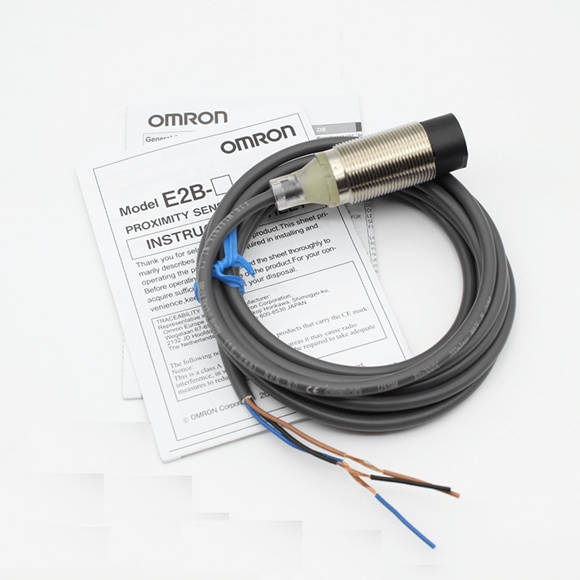

Item Size | M18 | |||
Sensing distance | Single | Double | ||
Type | Shielded | Unshielded | Shielded | Unshielded |
Model | E2B-M18@S05 | E2B-M18@N10 | E2B-M18@S08 | E2B-M18@N16 |
Sensing distance | 5 mm ± 10% | 10 mm ± 10% | 8 mm ± 10% | 16 mm ± 10% |
Setting distance | 0 to 4 mm | 0 to 8 mm | 0 to 6.4 mm | 0 to 12.8 mm |
Differential travel | 10% max. of sensing distance | |||
Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) | |||
Standard sensing object (mild steel ST37) | 18 × 18 × 1 mm | 30 × 30 × 1 mm | 24 × 24 × 1 mm | 48 × 48 × 1 mm |
Response frequency (See note 1.) | 600 Hz | 400 Hz | 500 Hz | 400 Hz |
Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |||
Current consumption | 10 mA max. | |||
Output type | -B models: PNP open collector-C models: NPN open collector | |||
Load current | 200 mA max. (30 VDC max.) | |||
Residual voltage | 2 V max. (under load current of 200 mA with cable length of 2 m) | |||
Indicator | Operation indicator (Yellow LED) | |||
Operation mode(with sensing object approaching) | -B1/-C1 models: NO-B2/-C2 models: NC | |||
Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection | |||
Ambient air temperature | Operation and storage : -25 to 70ºC (with no icing or condensation) | |||
Temperature influence | ±10% max. of sensing distance at 23ºC within temperature range of -10 to 55ºC±15% max. of sensing distance at 23ºC within temperature range of -25 to 70ºC | |||
Ambient humidity | Operation and Storage: 35 to 95% | |||
Voltage influence | ±1% max. of sensing distance in 24 VDC ±15% | |||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |||
Dielectric strength | 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case | |||
Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions | |||
Shock resistance | 1,000 m/s2, 10 times each in X, Y and Z directions | |||
Standard and listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) | |||
Connecting method | Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connector models (M12-4pin) |
