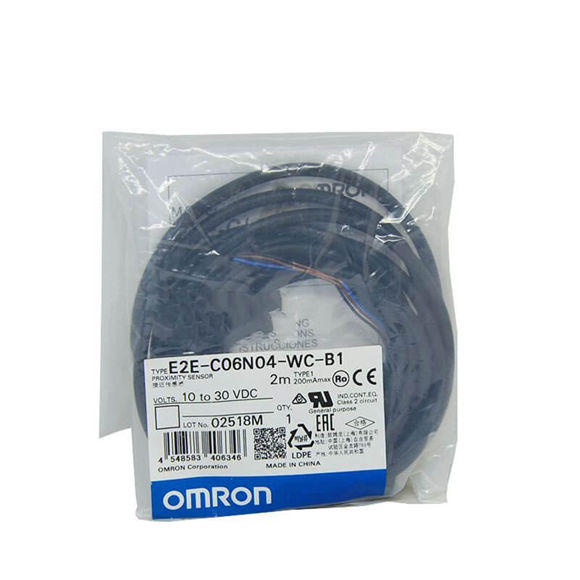

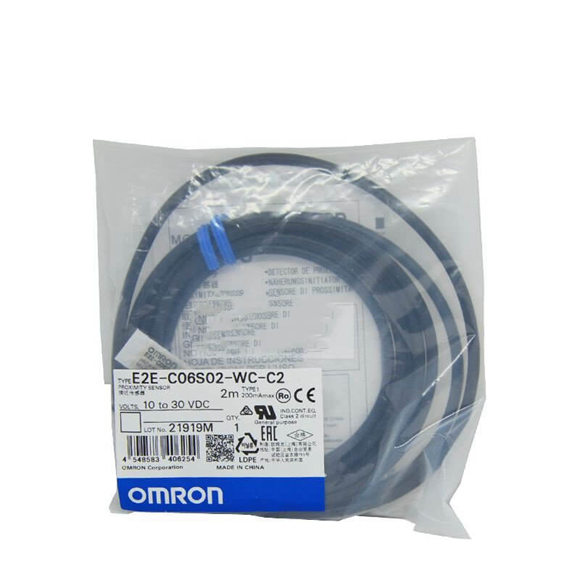

Omron Proximity Sensors E2E-C04N03-MC-C1/-B1/-C2/-B2 E2E-C06N04-WC-C1/-B1 /-C2-B2

Series#: Omron Proximity Sensors

Product Details

Qty:

Specification

Size  3 dia. 4 dia. 5.4 dia. 6.5 dia. M4 M5
Type Shielded Unshielded Shielded Unshielded Shielded Shielded Unshielded Shielded Unshielded Shielded Unshielded
Item Model E2E- C03SR8@ E2E- C03N02@ E2E- C04S12@ E2E- C04N03@ E2E- C05S01@ E2E- C06S02@ E2E- C06N04@ E2E- S04SR8@ E2E- S04N02@ E2E- S05S12@ E2E- S05N03@
Sensing distance (at 23°C) 0.8 mm±10% 2 mm±10% 1.2 mm±10% 3 mm±10% 1mm±10% 2 mm±10% 4 mm±10% 0.8 mm±10% 2 mm±10% 1.2 mm±10% 3 mm±10%
Setting distance *(Sensing distance × 0.7) 0 to 0.56mm 0 to 1.4 mm 0 to 0.84mm 0 to 2.1 mm 0 to 0.7 mm 0 to 1.4 mm 0 to 2.8 mm 0 to 0.56mm 0 to 1.4 mm 0 to 0.84mm 0 to 2.1 mm
Differential travel 15% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on page 7.)
Standard sensing object Iron, 3 × 3× 1 mm Iron, 6 × 6× 1 mm Iron, 4 × 4× 1 mm Iron, 9 × 9× 1 mm Iron, 5.4 × 5.4× 1 mm Iron, 6.5 × 6.5× 1 mm Iron, 12 ´ 12´ 1 mm Iron, 3 × 3× 1 mm Iron, 6 × 6× 1 mm Iron, 4 × 4× 1 mm Iron, 9 × 9× 1 mm
Response frequency *2 5 kHz 3.5 kHz 4 kHz 2 kHz 4 kHz 3 kHz 3 kHz 5 kHz 3.5 kHz 4 kHz 2 kHz
Power supply voltage *3 10 to 30 VDC (including 10% ripple (p-p))
Current consumption 10 mA max.
Load current 50 mA max. 100 mA max. 200 mA max.(60 to 70°C: 100 mA) 50 mA max. 100 mA max.
Residual voltage 2 V max. *5
Indicators Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output.
Operation mode B1/B2: PNP open collector, C1/C2: NPN open collector B1/C1 models: NO, B2/C2 models: NC
Protection circuits Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection
Ambient temperature range Operation and storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operation and storage: 35% to 95% (with no condensation)
Temperature influence ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 500 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant *6
Pre-wired Models Yes Yes Yes Yes Yes Yes
M8 Pre-wired Connector Models  Yes  Yes  No  Yes  Yes  Yes
M8 Connector Models No Yes No Yes No Yes
Pre-wired Models Approx. 25 g Approx. 30 g Approx. 35 g Approx. 35 g Approx. 35 g Approx. 55 g Approx. 55 g Approx. 30 g Approx. 30 g Approx. 35 g Approx. 40 g
M8 Pre-wired Connector Models Approx. 20 g Approx. 20 g Approx. 15 g Approx. 20 g   Approx. 20 g Approx. 25 g Approx. 20 g Approx. 20 g Approx. 20 g Approx. 20 g
M8 Connector Models Approx. 10 g Approx. 10 g Approx. 10 g Approx. 15 g Approx. 15 g Approx. 15 g
