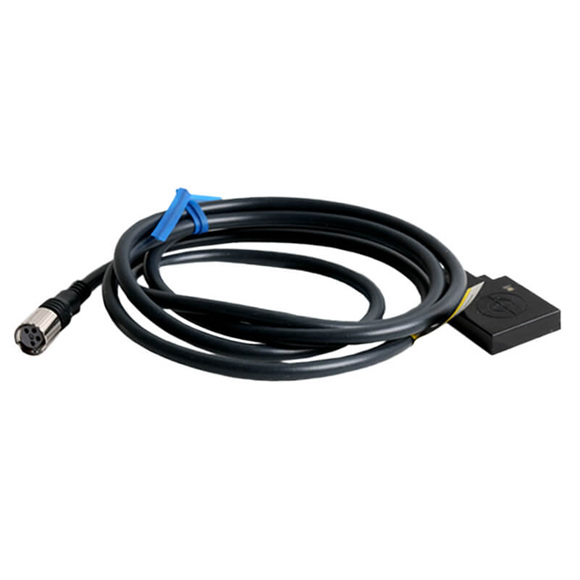

Model | E2J-W10MA | E2J-W20MA |
Sensing distance | 10 mm | 20 mm |
Sensing distance adjustable range |
4 to 10 mm | 8 to 20 mm |
Differential travel | 15% max. of sensing distance | |
Detectable object | Conductors and dielectrics | |
Standard sensing object | Grounded metal plate: 50 × 50 × 1 mm | |
Response frequency | 70 Hz min. | |
Indicators | Detection indicator (red) | |
Ambient temperature range | Operating/Storage: -10 to 55°C (with no icing or condensation) | |
Ambient humidity range | Operating/Storage: 35% to 85% (with no condensation) | |
Vibration resistance | Destruction: 10 to 500 Hz, 2-mm double amplitude or 150 m/s2 for 2 hours each in X, Y, and Z directions |
|
Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |
Degree of protection | IP66 (IEC) | |
Connection method | Pre-wired Connector Models (Robotics cable, Standard cable length: 1m) | |
Weight (packed state) | Approx. 30 g | Approx. 40 g |
Model | E2J-JC4A | |
Power supply voltage | 24 VDC ±20%, ripple (p-p): 10% max. | |
Current consumption | 30 mA max. | |
Load current | NPN open-collector output, 100 mA max. (30 VDC max.) | |
Residual voltage | 1 V max. | |
Indicators | Operation indicator (orange) Power indicator (green) |
|
Number of turns of sensitivity adjustment |
8 turns with an indicator | |
Protection circuits | Load short-circuit protection, Surge suppressor, Reverse polarity protection | |
Ambient temperature range | Operating/Storage: -10 to 55°C (with no icing or condensation) | |
Ambient humidity range | Operating/Storage: 35% to 85% (with no condensation) | |
Temperature influence (Sensor with Amplifier) |
±25% max. of sensing distance at 23°C in the temperature range of 0 to 40°C | |
Voltage influence | ±1% max. of sensing distance at the rated voltage in the ±20% rated voltage range | |
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case | |
Vibration resistance | Destruction: 10 to 150 Hz, 1.5-mm double amplitude or 100 m/s2 for 2 hours each in X, Y, and Z directions | |
Shock resistance | Destruction: 300 m/s2 3 times each in X, Y, and Z directions | |
Degree of protection | IP50 (IEC) | |
Connection method | Pre-wired Models (Standard cable length: 2 m) | |
Weight (packed state) | Approx. 60 g |
