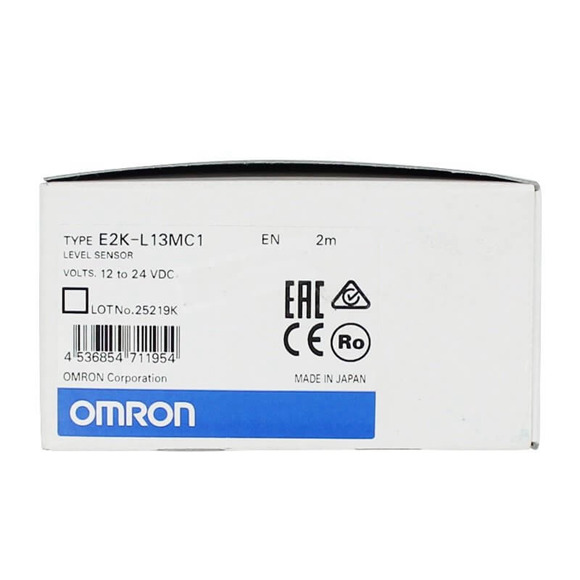

tem | E2K-L13MC[] | E2K-L26MC[] |
Materials | Non-metal | |
Diameter Size | 8 to 11 mm | 12 to 26 mm |
Thickness Size | 1 mm max. | 1.5 mm max. |
Detectable object | Liquid * | |
Repeat accuracy | ±0.2 mm max. | |
Differential travel (Reference value, varies with pipe size and liquid.) |
0.6 to 5 mm | 0.3 to 3 mm |
Power supply voltage (operating voltage range) |
12 to 24 VDC (10.8 to 30 VDC), ripple (p-p): 10% max. | |
Current consumption | 12 mA max. | |
Load current | 100 mA max. | |
Residual voltage | 1 V max. (Load current: 100 mA, Cable length: 2 m) | |
Sensing liquid position | Indented mark position (For details, refer to Datasheet) | |
Indicators | Detection indicator (orange) | |
Ambient temperature range | Operating: 0 to 55°C (with no icing or condensation), Storage: -10 to 65°C (with no icing or condensation) |
|
Ambient humidity range | Operating/Storage: 25% to 85% (with no condensation) | |
Temperature influence | ±4 mm of detection level at 23°C in the temperature range of 0 to 55°C (with pure water or 20% saline solution) (±6 mm for E2K-L13MC[] with pure water and a pipe diameter of 8 mm) |
|
Voltage influence | ±0.5 mm of detection level at the rated voltage in rated voltage ±10% range | |
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |
Dielectric strength | 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case | |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
|
Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |
Degree of protection | IP66 (IEC) | |
Connection method | Pre-wired Models (Standard cable length: 2 m) | |
Weight (packed state) | Approx. 70 g | |
Case, Cover | Heat-resistant ABS | |
Cable clamp | NBR | |
Accessories | Two bands, Four slip-proof tubes, One driver for sensitivity adjustment, Instruction manual |
