| Item Model |

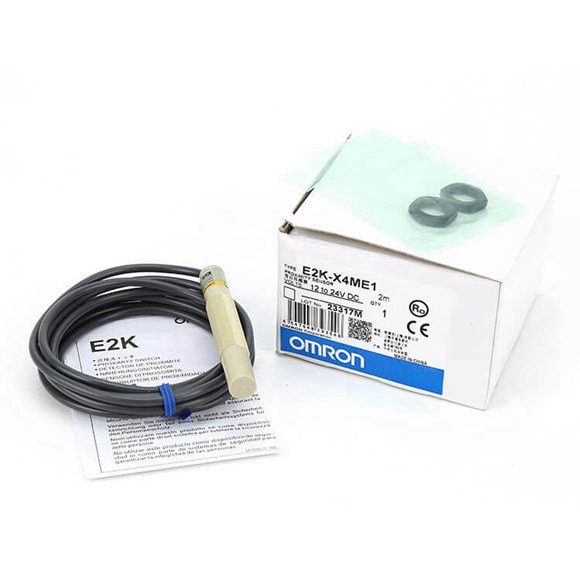

E2K-X4ME@, E2K-X4MF@, E2K-X4MY@ |
E2K-X8ME@, E2K-X8MF@, E2K-X8MY@ |
E2K-X15ME@, E2K-X15MF@, E2K-X15MY@ |
| Sensing distance |
4mm ±10% |
8 mm ±10% |
15 mm ±10% |
| Set distance *1 |
0 to 2.8 mm |
0 to 5.6 mm |
0 to 10 mm |
| Differential travel |
4% to 20% of sensing distance |
| Detectable object |
Conductors and dielectrics |
| Standard sensing object |
Grounded metal plate: 50 ´ 50 ´ 1 mm |
| Response frequency |
E and F Models: 100 Hz, Y Models: 10 Hz |
| Power supply voltage*2 (operating voltage range) |
E and F Models: 12 to 24 VDC (10 to 30 VDC)Y Models: 100 to 220 VAC (90 to 250 VAC) |
| Current consumption |
E and F Models: 15 mA max. |
| Leakage current |
Y Models: 2.2 mA max. (Refer to page 4.) |
| Load current |
E and F Models: 200 mA max.*2, Y Models: 10 to 200 mA |
| Residual voltage |
E and F Models: 2 V max. (Load current: 200 mA, Cable length: 2 m), Y Models: Refer to Engineering Data on page 4. |
| Indicators |
E and F Models: Detection indicator (red), Y Models: Operation indicator (red) |
| Operation mode (with sensing object approaching) |
E1, F1, and Y1 Models: NOE2, F2, and Y2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on page 4 for details. |
| Protection circuits |
E and F Models: Reverse polarity protection, Surge suppressor, load short-circuit protection, output reverse polar- ity protection, Y Models: Surge suppressor |
| Ambient temperature range |
Operating/Storage: -25 to 70°C (with no icing or condensation) |
Operating/Storage: -10 to 55°C (with no icing or condensation) |
| Ambient humidity range |
Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence |
±20% max. of sensing distance at 23°C in the operating temperature range |
| Voltage influence |
E and F Models: ±2% max. of sensing distance at rated voltage at rated voltage ±20% Y Models: ±2% max. of sensing distance at rated voltage at rated voltage ±10% |
| Insulation resistance |
50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength |
E and F Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance |
Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Degree of protection |
IP66 (IEC), in-house standards: oil-resistant |
| Connection method |
Pre-wired Models (Standard cable length: 2 m) |
| Weight (packed state) |
Approx. 65 g |
Approx. 145 g |
Approx. 205 g |
