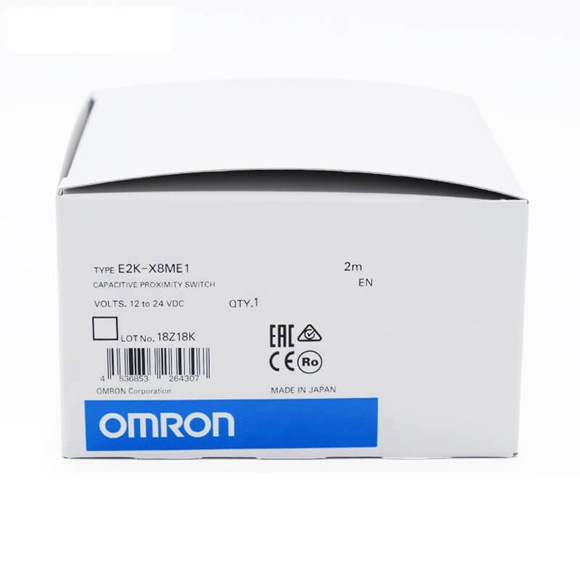

Omron Proximity Sensors E2K-X8MF1 E2K-X8MY1 E2K-X15ME1 E2K-X15MF1

Series#: Omron Proximity Sensors

Product Details

Qty:

Specification

Item Model E2K-X4ME@, E2K-X4MF@, E2K-X4MY@ E2K-X8ME@, E2K-X8MF@, E2K-X8MY@ E2K-X15ME@, E2K-X15MF@, E2K-X15MY@
Sensing distance 4mm ±10% 8 mm ±10% 15 mm ±10%
Set distance *1 0 to 2.8 mm 0 to 5.6 mm 0 to 10 mm
Differential travel 4% to 20% of sensing distance
Detectable object Conductors and dielectrics
Standard sensing object Grounded metal plate: 50 ´ 50 ´ 1 mm
Response frequency E and F Models: 100 Hz, Y Models: 10 Hz
Power supply voltage*2 (operating voltage range) E and F Models: 12 to 24 VDC (10 to 30 VDC)

Y Models: 100 to 220 VAC (90 to 250 VAC)

Current consumption E and F Models: 15 mA max.
Leakage current Y Models: 2.2 mA max. (Refer to page 4.)
Load current E and F Models: 200 mA max.*2, Y Models: 10 to 200 mA
Residual voltage E and F Models: 2 V max. (Load current: 200 mA, Cable length: 2 m), Y Models: Refer to Engineering Data on page 4.
Indicators E and F Models: Detection indicator (red), Y Models: Operation indicator (red)
Operation mode (with sensing object approaching) E1, F1, and Y1 Models: NO

E2, F2, and Y2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on page 4 for details.

Protection circuits E and F Models: Reverse polarity protection, Surge suppressor, load short-circuit protection, output reverse polar- ity protection, Y Models: Surge suppressor
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation) Operating/Storage: -10 to 55°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±20% max. of sensing distance at 23°C in the operating temperature range
Voltage influence E and F Models: ±2% max. of sensing distance at rated voltage at rated voltage ±20% Y Models: ±2% max. of sensing distance at rated voltage at rated voltage ±10%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength E and F Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Degree of protection IP66 (IEC), in-house standards: oil-resistant
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight (packed state) Approx. 65 g Approx. 145 g Approx. 205 g
