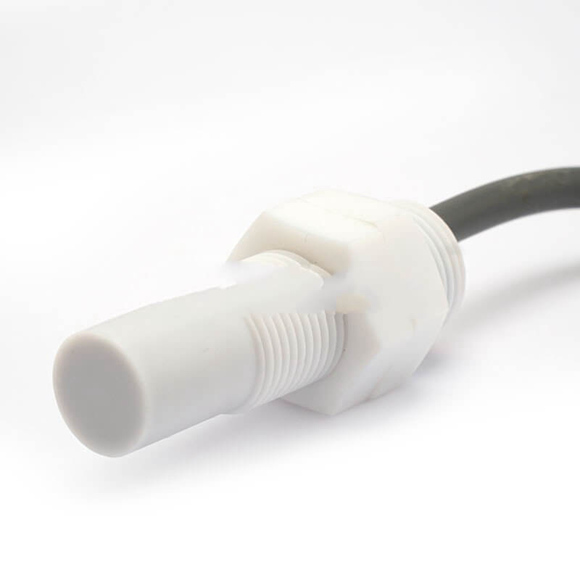

Model | E2KQ-X10ME1 | E2KQ-X10ME2 |
Sensing distance *1 | 10 mm | |
Sensing distance adjustable range | 6 to 10 mm | |
Differential travel | 4% to 20% of sensing distance | |
Detectable object | Conductors and dielectrics | |
Standard sensing object | Grounded metal plate: 50 × 50 × 1 mm | |
Response frequency | 35 Hz | |
Power supply voltage (operating voltage range) |
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. | |
Current consumption | 15 mA max. | |
Load current | 100 mA | |
Residual voltage | 1.5 V max. (Load current: 100 mA, Cable length: 2 m) | |

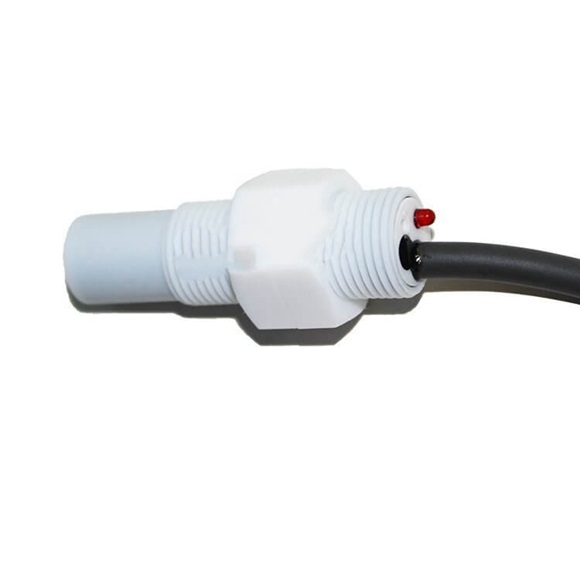

Indicators | Detection indicator (red) | |
Operation mode (with sensing object approaching) *2 |
NO | NC |
Protection circuits | Reverse polarity protection, Surge suppressor | |
Ambient temperature range | Operating: -10 to 55°C, Storage: -25 to 55°C (with no icing or condensation) | |
Ambient humidity range | Operating/storage: 35% to 85% (with no condensation) | |
Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C | |
Voltage influence | ±2% max. of sensing distance at rated voltage at rated voltage ±20% | |
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |
Dielectric strength | 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case | |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |
Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |
Degree of protection | IP66 (IEC), in-house standards: oil-resistant | |

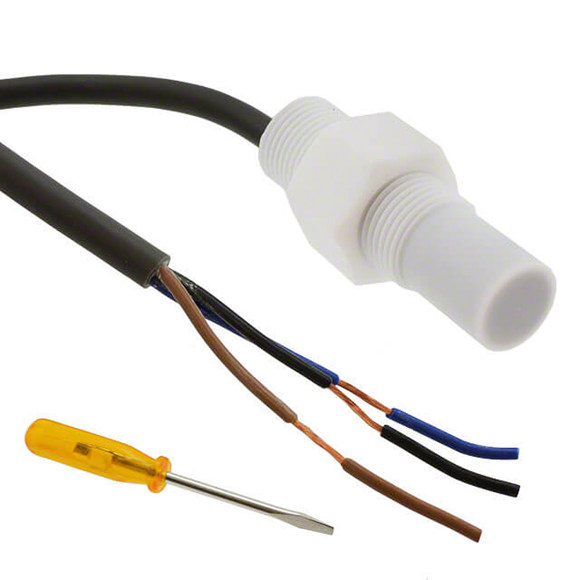

Connection method | Pre-wired Models (Standard cable length: 2 m) | |
Weight (packed state) | Approx. 150 g |
