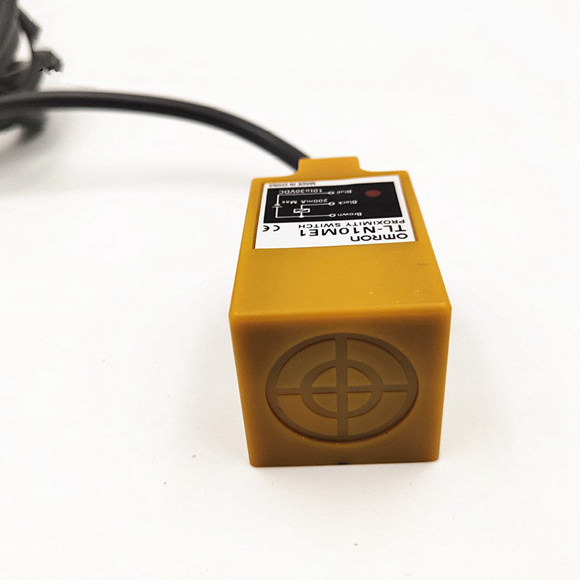

Omron Proximity Sensors TL-N10MF1 TL-N10MY1/MY2 TL-N20MY1 TL-N20ME1/ME2

Series#: Omron Proximity Sensors

Product Details

Qty:

Specification

Item Model TL-N5ME@, TL-N5MY@ TL-N10ME@, TL-N10MY@, TL-N10MF1 TL-N20ME@, TL-N20MY@
Sensing distance 5 mm ±10% 10 mm ±10% 20 mm ±10%
Set distance 0 to 4 mm 0 to 8 mm 0 to 16 mm
Differential travel 15% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on pages 6 and 7.)
Standard sensing object Iron, 30 ´ 30 ´ 1 mm Iron, 40 ´ 40 ´ 1 mm Iron, 50 ´ 50 ´ 1 mm
Response frequency *1 E/F Models: 500 Hz Y Models: 10 Hz E Models: 40 Hz Y Models: 10 Hz
Power supply voltage *2 (operating voltage range)

E/F Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.

Y Models: 100 to 220 VAC (90 to 250 VAC), 50/60 Hz

Current consumption E/F Models: 8 mA max. at 12 VDC, 15 mA max. at 24 VDC
Leakage current Y Models: Refer to Engineering Data on page 5.
Load current E/F Models: 100 mA max. at 12 VDC, 200 mA max. at 24 VDC Y Models: 10 to 200 mA
Residual voltage E/F Models: 1 V max. (load current: 200 mA)

Y Models: Refer to Engineering Data on page 5.

Indicators E/F Models: Detection indicator (red) Y Models: Operation indicator (red)
Operation mode (with sensing ob- ject approaching) E1/F1/Y1 Models: NO E2/Y2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on page 7 for details.
Protection circuits E Models: Reverse polarity protection, Surge suppressor Y Models: Surge suppressor
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence E/F Models: ±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range Y Models: ±1% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength E/F Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight (packed state) Approx. 190 g Approx. 240 g Approx. 340 g
