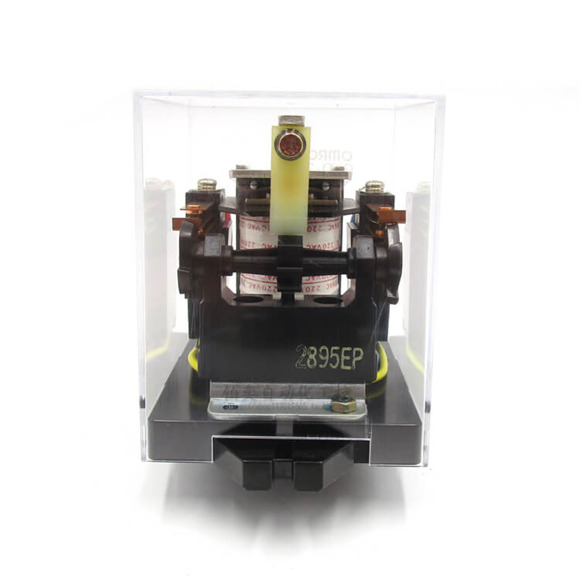

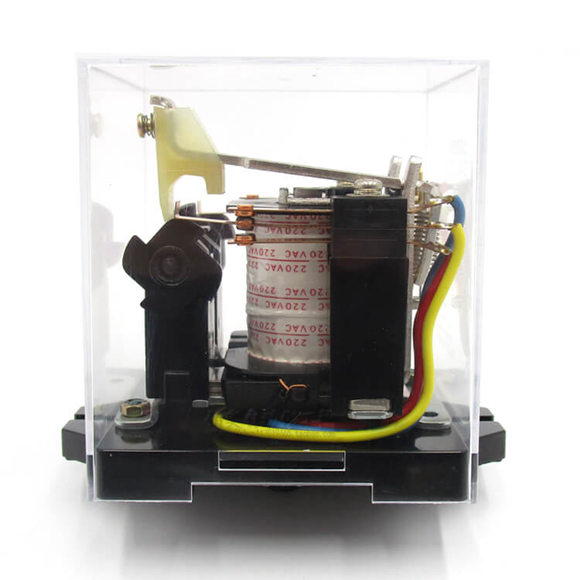

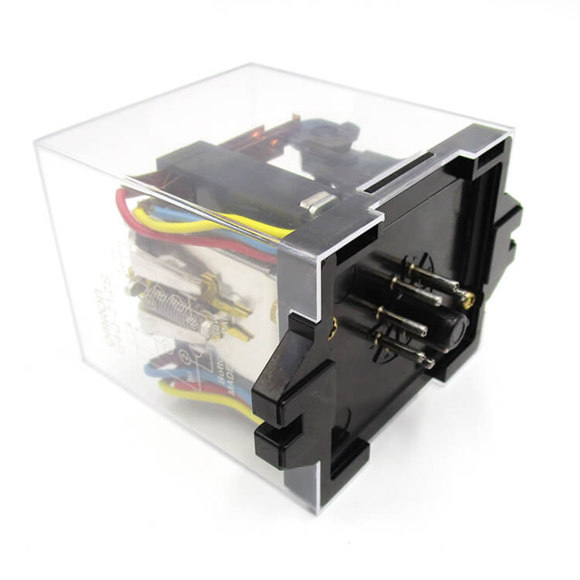

| Contact resistance (See note 2.) | 50 mW max. | |
| Operate time (See note 3.) | 60 ms max. | |
| Max. operating frequency | Mechanical: 1,200 operations/hr
Electrical: 1,200 operations/hr (under rated load) |
|
| Insulation resistance (See note 4.) | 100 MW min. (at 500 VDC) | |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min between coil and contact (1,000 VAC, 50/60 Hz for 1 min between con- tacts of same polarity) (2,000 VAC between contacts of different polarities) | |
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude) |
|
| Shock resistance | Destruction: Malfunction: | 500 m/s2
100 m/s2 |
| Endurance | Mechanical: Electrical: | 5,000,000 operations min. (at operating frequency of 1,200 operations/hr) 500,000 operations min. (under rated load and at operating frequency of 1,200 operations/hr) (See note 5.) |
| Error rate (See note 6.) | 1 A at 5 VDC (0.1 A at 5 VDC) | |
| Ambient temperature | Operating: | –10°C to 55°C (with no icing or no condensation) |
| Ambient humidity | Operating: | 5% to 85% |
| Weight | Open model: Approx. 240 g; cased model: Approx. 340 g | |
