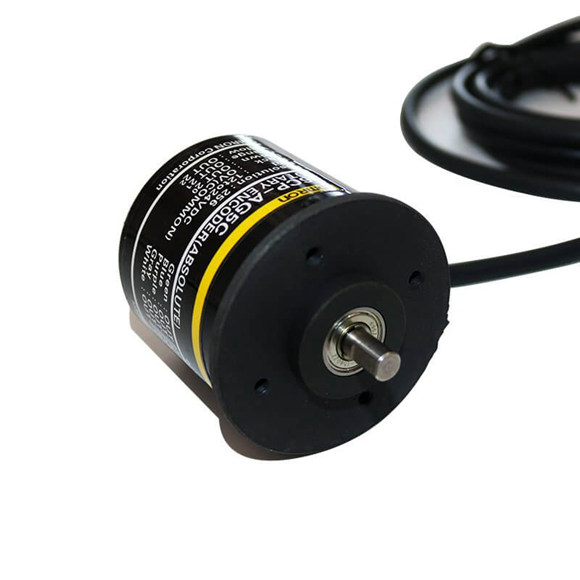

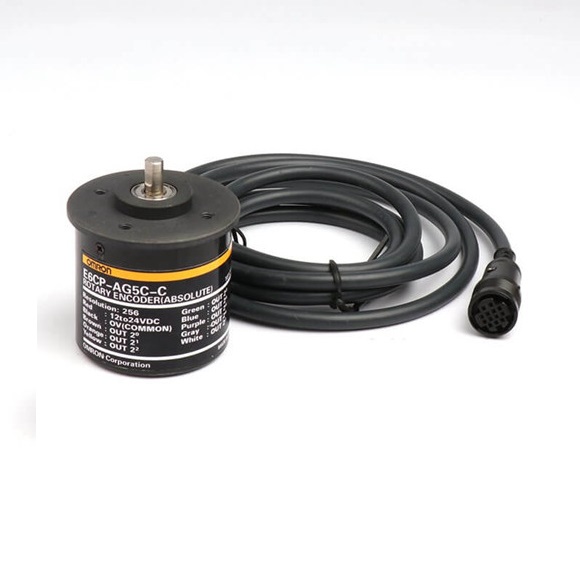

Omron Rotary Encoder E6F-AB3C-C E6F-AB3C E6F-AB5C-C E6F-AB5C/-AB5B

Series#: Omron Rotary Encoder

Product Details

Qty:

Specification

Model E6F-AG5C-C E6F-AG5C E6F-AG5B
Power supply voltage 12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
Current consumption *1 60 mA max.
Resolution
(pulses/rotation) *2
256, 360, 720 256, 360, 720, 1024
Output code Gray code
Output configuration NPN open-collector output PNP open-collector output
Output capacity Applied voltage: 30 VDC max.
Sink current: 35 mA max.
Residual voltage: 0.4 V max. (at sink current of 35 mA)
Source current: 35 mA max.
Residual voltage: 0.4 V max.
(at source current of 35 mA)
Maximum response
frequency *3
20 kHz
Logic Negative logic (high = 0, low = 1) Positive logic (high = 1, low = 0)
Direction of rotation Output code incremented by CW (as viewed from the end of the shaft)
Rise and fall times of
output
1 μs max. (E6F-AB3C, A[]5C: Load voltage: 5 V, Load resistance: 1 kΩ, Output cable: 2 m
max.; E6F-A[]5B: Power supply voltage: 12 V, Load resistance: 1 kΩ, Output cable: 2 m max.)
Starting torque 9.8 mNm max. at room temperature, 14.7 mNm max. at low temperature
Moment of inertia 1.5 × 10-6 kgm2 max.
Maximum permissible
speed
5000 r/min
Ambient temperature
range
Operating: -10 to 70°C (with no icing), Storage: -25 to 80°C (with no icing)
Ambient humidity range Operating: 35% to 85% (with no condensation), Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 500 Hz, 2-mm double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP65, in-house standards: oilproof
Connection method Connector Models (Standard
cable length: 2m)
Pre-wired Models (Standard cable length: 2 m)
Material Case: Zinc alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron
Weight (packed state) Approx. 500 g
Accessories Servo Mounting Bracket, Coupling (provided with Pre-wired Models only), Hexagonal wrench
(provided with Pre-wired Models only), Instruction manual
