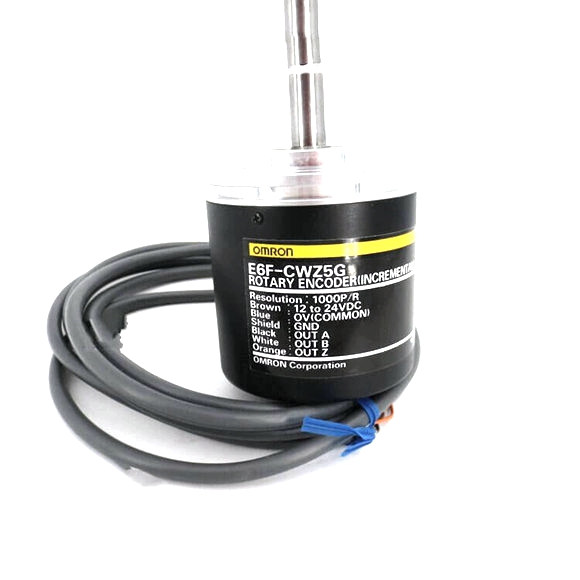

Omron Rotary Encoder E6F-CWZ5G E6F-CWZ5C

Series#: Omron Rotary Encoder

Product Details

Omron Rotary Encoder E6F-CWZ5G E6F-CWZ5C
We are First Class Omron sensor dealer and Omron sensor distributor in China.
We can Supply all kinds of Omron sensor parts,such as Omron Photomicro Sensors,Omron Proximity Sensors,Omron Fiber Sensors,Omron Photoelectric Sensors and Omron Rotary Encoder.
All parts are 100% Original and new in stock by Omron and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Model	E6F-CWZ5G	E6F-CWZ5C
Power supply voltage	12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
*Current consumption 1**	100 mA max.
Resolution (pulses/rotation)	100, 200, 360, 500, 600, 1,000	1,000
Output configuration	Complementary outputs *2	NPN open-collector output
Output capacity	Output voltage: VH = Vcc -3 V min. (Io = 30 mA), VL = 2 V max. (Io = -30 mA) Output current: ±30 mA	Applied voltage: 30 VDC max. Sink current: 35 mA max. Residual voltage: 0.4 V max. (at sink current of 35 mA)
Maximum response frequency	83 kHz
Phase difference between outputs	90°± 45° between A and B (1/4 T ± 1/8 T)
Rise and fall times of output	1 μs max. (Cable length: 2 m, Output current: 30 mA)	1 μs max. (Cable length: 2 m, Control output voltage: 5 V, Load resistance: 1 kΩ)
Starting torque	10 mNm max. at room temperature, 15 mNm max. at low temperature
Moment of inertia	3 ×10^-6 kgm² max.; 1.5 × 10^-6 kgm² max. at 600 P/R max.
Maximum permissible speed	5,000 r/min
Protection circuits	Power supply reverse polarity protection, Output load short-circuit protection
Ambient temperature range	Operating: -10 to 70°C (with no icing), Storage: -25 to 85°C (with no icing)
Ambient humidity range	Operating/Storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 500 Hz, 150 m/s² or 2-mm double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance	Destruction: 1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP65, in-house standards: oilproof
Connection method	Pre-wired Models (Standard cable length: 2 m)
Material	Case: Zinc alloy, Main unit: Aluminum, Shaft: SUS420J2
Weight (packed state)	Approx. 400 g
Accessories	Instruction manual Note: Coupling, mounting bracket and hex-head spanner are sold separately.
