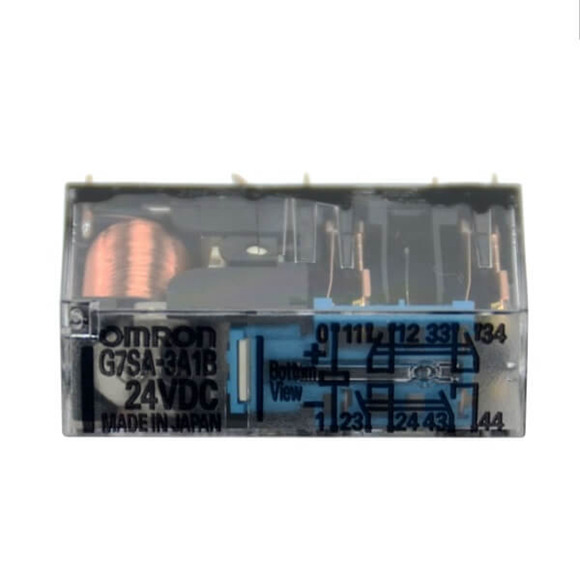

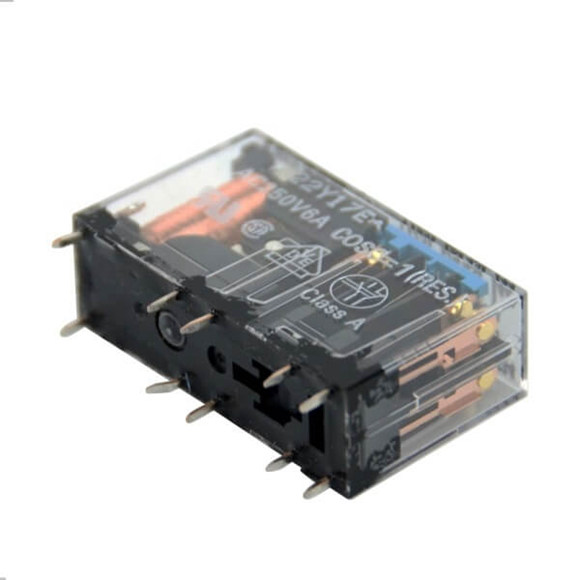

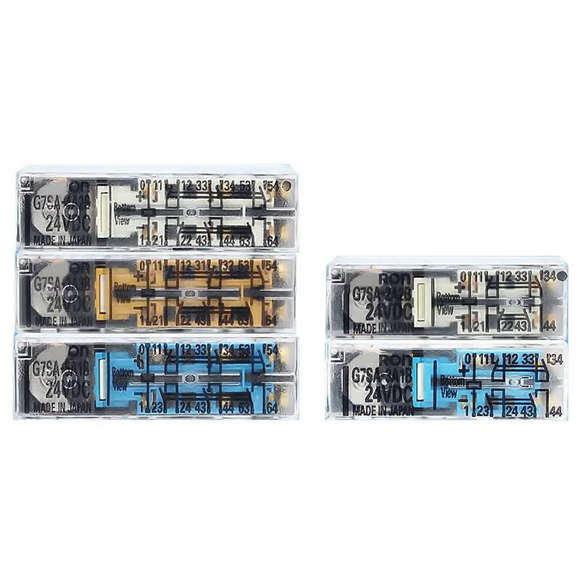

| Contact resistance *1 | 100 mΩ max. |
| Operating time *2 | 20 ms max. |
| Response time *3 | 10 ms max. |
| Release time *2 | 20 ms max. |
| Must operate voltage | 75% max. |
| Must release voltage | 10% min. |
| Mechanical | 36,000 operations/h |
| Rated load | 1,800 operations/h |
| Insulation resistance *4 | 1,000 MΩ min. |
| Between coil andcontacts | 4,000 VAC, 50/60 Hz for 1 min. |
| Betweencontacts of different polarity | 4,000 VAC, 50/60 Hz for 1 min. (except for followings)4 poles (for poles 3-4 in 4-pole Relays),
6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min. |
| Between contactsof the same polarity | 1,500 VAC, 50/60 Hz for 1 min. |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Destruction | 1,000 m/s2 |
| Malfunction | 100 m/s2 |
| Mechanical | 10,000,000 operations min. (at approx. 36,000 operations/h) |
| Electrical | 100,000 operations min. (at the rated load) |
| Inductive load switching capability *8(IEC60947-5-1) | AC15 240 VAC, 2 ADC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A |
| Failure rate (P level) (reference value *9) | 5 VDC, 1 mA |
| Ambient operating temperature *10 | 12 to 48 VDC: -40 to 85°C (with no icing or condensation)110 VDC: -40 to 60°C (with no icing or condensation) |
| Ambient operating humidity | 5% to 85% |
| Weight | 4 poles: Approx. 22 g6 poles: Approx. 25 g |
