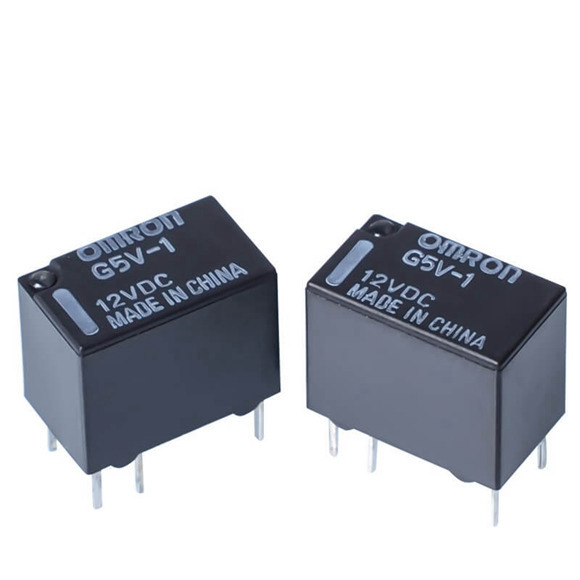

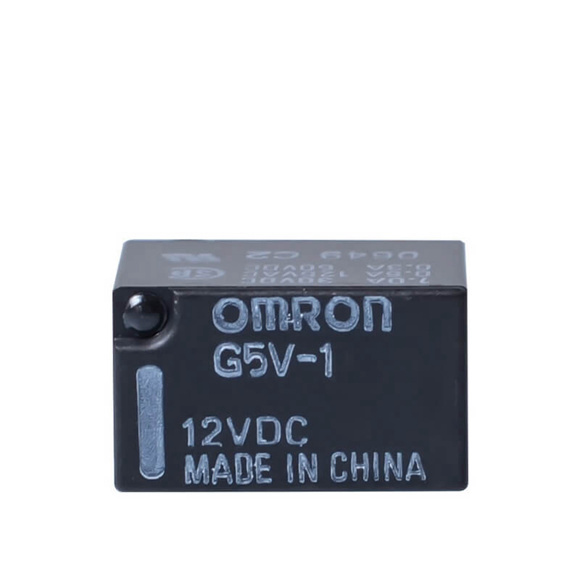

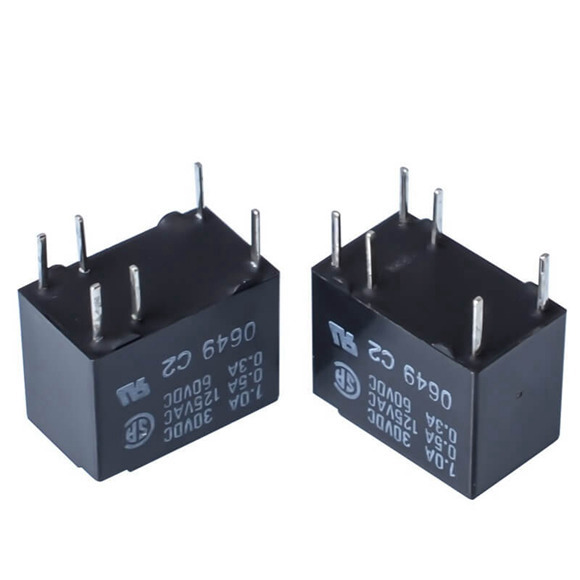

Omron Signal relay G5V-1

Series#: Omron Signal relays

Product Details

Qty:

Specification

Contact resistance 100 mW max.
Operate time 10 ms max.
Release time 5 ms max.
Bounce time Operate: Approx. 0.6 ms Release: Approx. 7.2 ms
Max. switching frequency Mechanical: 18,000 operations/hrElectrical: 1,800 operations/hr (under rated load)
Insulation resistance 100 MW min. (at 500 VDC)
Dielectric strength 750 VAC, 50/60 Hz for 1 min between contacts of same polarity 2,000 VAC, 50/60 Hz for 1 min between coil and contacts
Impulse withstand voltage 4,500 V between coil and contacts
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s2 (approx. 100G) Malfunction: 100 m/s2 (approx. 10G)
Life expectancy Mechanical:10,000,000 operations min. (at 18,000 operations/hr) Electrical: 100,000 operations min. (at 1,800 operations/hr)
Ambient temperature Operating: –40°C to 85°C
Ambient humidity Operating: 35% to 85%
Weight Approx. 12 g
