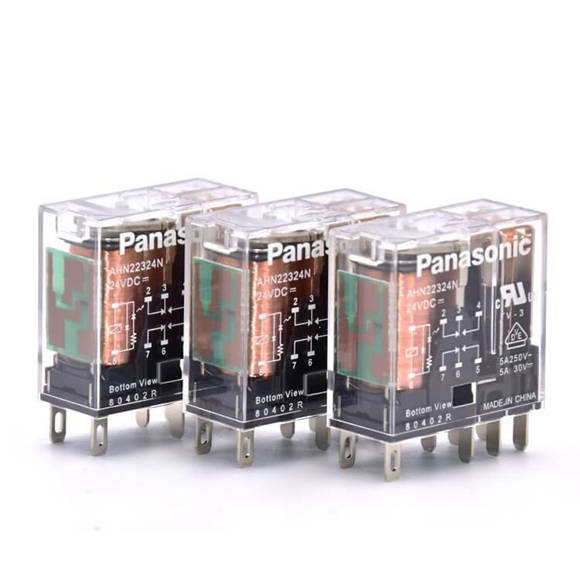

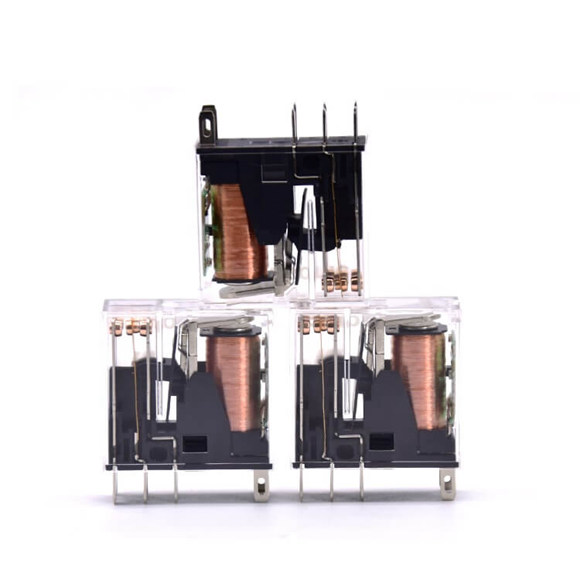

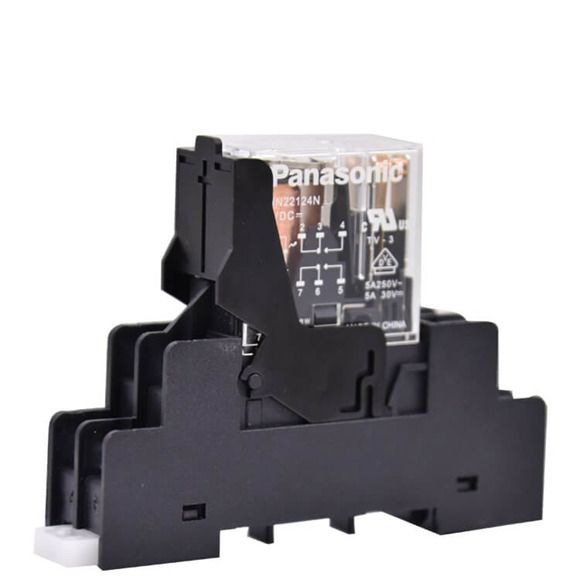

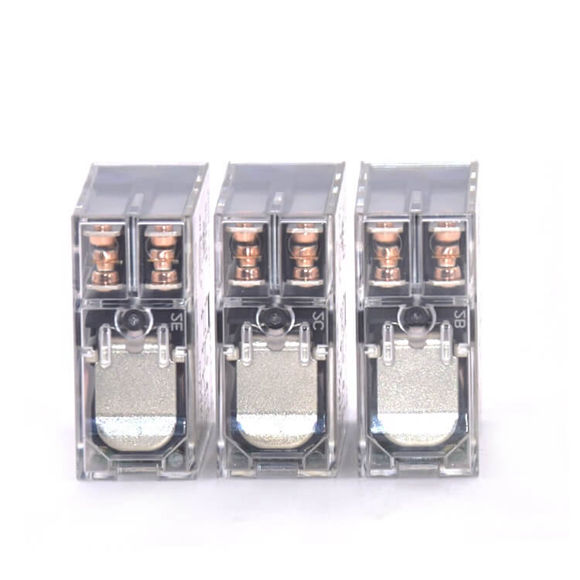

Panasonic Control Panel HN Relay AHN121X0

Series#: Panasonic Control Panel Relays

Product Details

Qty:

Specification

Item Specifications
Nominal coil voltage 1 Form C 2 Form C 1 Form C 2 Form C
5V DC AHN12005 AHN22005N AHN12105 AHN22105N
6V DC AHN12006 AHN22006N AHN12106 AHN22106N
12V DC AHN12012 AHN22012N AHN12112 AHN22112N
24V DC AHN12024 AHN22024N AHN12124 AHN22124N
48V DC AHN12048 AHN22048N AHN12148 AHN22148N
100V DC AHN120X0 AHN220X0N AHN121X0 AHN221X0N
110V DC AHN120X1 AHN220X1N AHN121X1 AHN221X1N
12V AC AHN11012 AHN21012N AHN11112 AHN21112N
24V AC AHN11024 AHN21024N AHN11124 AHN21124N
100/110V AC AHN110X0 AHN210X0N AHN111X0 AHN211X0N
110/120V AC AHN110X1 AHN210X1N AHN111X1 AHN211X1N
200/220V AC AHN110Y0 AHN210Y0N AHN111Y0 AHN211Y0N
220/240V AC AHN110Y2 AHN210Y2N AHN111Y2 AHN211Y2N
Arrangement 1 Form C 2 Form C 1 Form A (TM type)
Contact resistance (Initial) Max. 100 mΩ

(By voltage drop 6 V DC 1A)

Max. 50 mΩ

(By voltage drop 6 V DC 1A)

Max. 100 mΩ

(By voltage drop 6 V DC 1A)

Contact material AgSnO2 type AgNi type AgSnO2 type
Nominal switching capacity (resistive load) 10A 250V AC, 10A 30V DC 5A 250V AC, 5A 30V DC 16A 250V AC, 16A 30V DC
Max. switching power (resistive load) 4,000VA, 300W 1,250VA, 150W 4,000VA, 480W
Max. switching voltage 250V AC, 30V DC
Max. switching current 16A (at AC load), 10A (at DC load) 5A 16A
Nominal operating power 0.53W, 0.9VA
Min. switching capacity (Reference value)*1 100mA 5V DC 10mA 5V DC 100mA 5V DC
Insulation resistance (Initial) Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
Between open contacts 1,000 Vrms for 1min. (Detection current: 10mA.)
Between contact sets 3,000 Vrms for 1min. (Detection current: 10mA.)
Between contact and coil 5,000 Vrms for 1min. (Detection current: 10mA.)
Temperature rise (coil) (at 70°C 158°F) Max. 60°C 140°F (By resistive method, nominal coil voltage)
Operate time (at 20°C 68°F)*2 Max. 15ms (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time (at 20°C 68°F)*2 Max. 5ms (Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)/Max. 20ms (with diode)
Shock resistance Functional Min. 100 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10ms.)
Shock resistance Destructive Min. 1,000 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Vibration resistance Functional 10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10ms.)
Destructive 10 to 55 Hz at double amplitude of 1.5 mm
Mechanical AC: Min. 107; DC: Min. 2´107 (at 300 times/min.)
Electrical (at nominal switching capacity) Min. 105 (at 20 times/min.) Min. 105 (at 10 times/min.)
Conditions for operation, transport and storage*3 (Not freezing and condensing at low temperature) Ambient temperature: –40°C to +70°C –40°F to +158°F

Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

Max. Operating speed 20 times/min. (at nominal switching capacity) 10 times/min.

(at nominal switching capacity)

Weight Approx. 19 g .67 oz Approx. 17 g .60 oz
