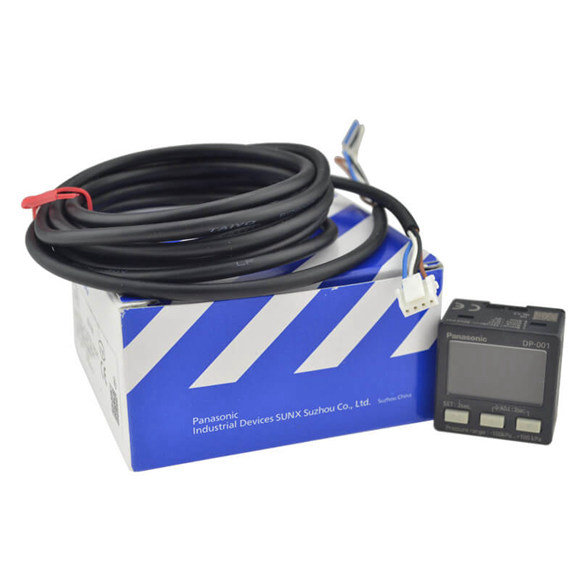

Panasonic Digital Pressure Sensor(For Gas) DP-001 DP-001-P DP-002 DP-002-P

Series#: Panasonic Digital Pressure Sensor

Product Details

Qty:

Specification

Type Low pressure High pressure
Model No.NPN output DP-001 DP-002
Model No.PNP output DP-001-P DP-002-P
CE marking directive compliance EMC Directive, RoHS Directive
Type of pressure Gauge pressure
Rated pressure range -100.0 to +100.0 kPa 0.000 to +1.000 MPa
Set pressure range -101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2
-1.010 to + 1.010 bar
-14.65 to +14.65 psi
-756 to +756 mmHg
-0.010 to +1.010 MPa
-0.1 to +10.30 kgf/cm2
-0.1 to + 10.10 bar
-0.1 to +146.5 psi
Pressure withstandability 500 kPa 1.5 MPa
Applicable fluid Air, non-corrosive gas
Selectable unit Low pressure type: kPa, kgf/cm2, bar, psi, mmHg
High pressure type: MPa, kgf/cm2, bar, psi
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power consumption 30 mA or less
Comparative output <NPN output type>
NPN open-collector transistor
• Maximum sink current: 50 mA
• Applied voltage: 30 V DC or less (between comparative output and 0 V)
• Residual voltage: 2 V or less (at 50 mA sink current)<PNP output type>
PNP open-collector transistor
• Maximum source current: 50 mA
• Applied voltage: 30 V DC or less (between comparative output and +V)
• Residual voltage: 2 V or less (at 50 mA source current)


Output operation

Selectable either NO or NC by key operation
Hysteresis Minimum 2 digits (variable)
Repeatability ±0.2 % F.S. (within ±4 digits) ±0.4 % F.S. (within ±4 digits)
Response time 2.5 ms, 25 ms, 250 ms, selectable by key operation
Short-circuit protection Incorporated
Display 3 + 1/2 digits, 3-color (white / red / pink) LCD display (Display update period: 250 ms)


Protection

IP40 (IEC)
Ambient temperature 0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), Storage: -10 to +60 ℃ +14 to +140 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Voltage withstandability 500 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50 MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Pollution degree 2
Overvoltage category I
Usable altitude 2,000 m 6,562 ft or less
Temperature characteristics
(+20℃ standard)
+10 to +40℃ +50 to +104 ℉: Within ±1 % F.S.
0 to +50℃ 32 to +122℉: Within ±2.5 % F.S.
+10 to +40℃ +50 to +104℉: Within ±2 % F.S.
0 to +50℃ 32 to +122℉: Within ±5 % F.S.
Grounding method Floating
Pressure port M5 female thread
Material Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Pressure port: Brass (nickel plated),
Mounting threaded part: Brass, O-ring: Nitrile rubber (NBR), Key section: Polycarbonate
Weight 25 g approx.
Accessory CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1 pc.
