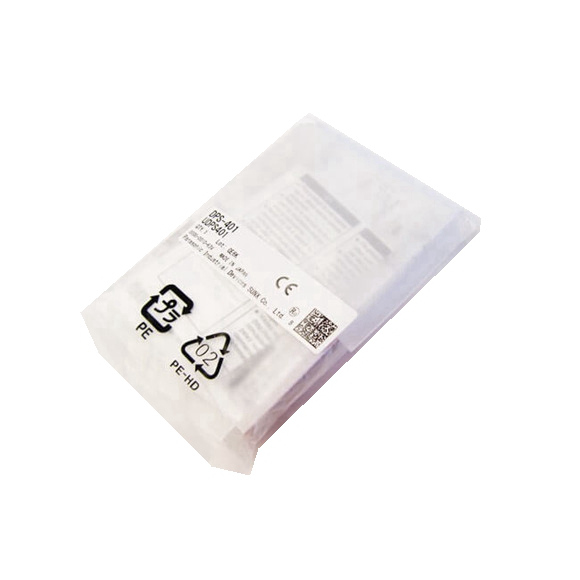

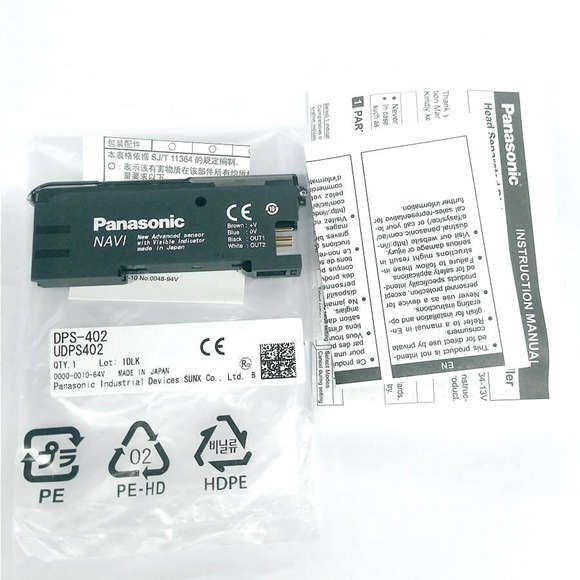

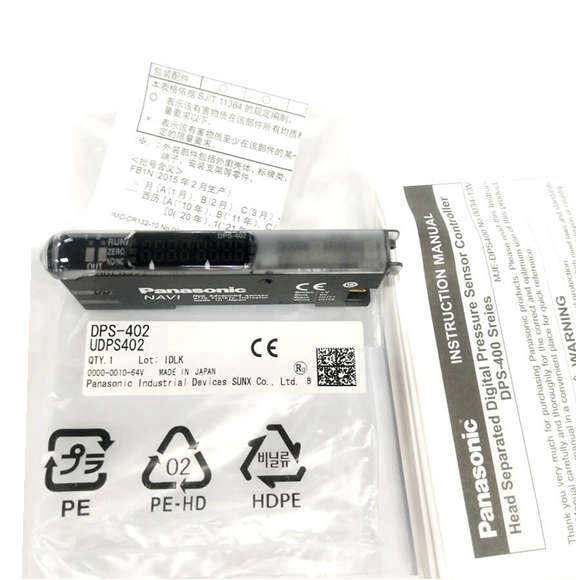

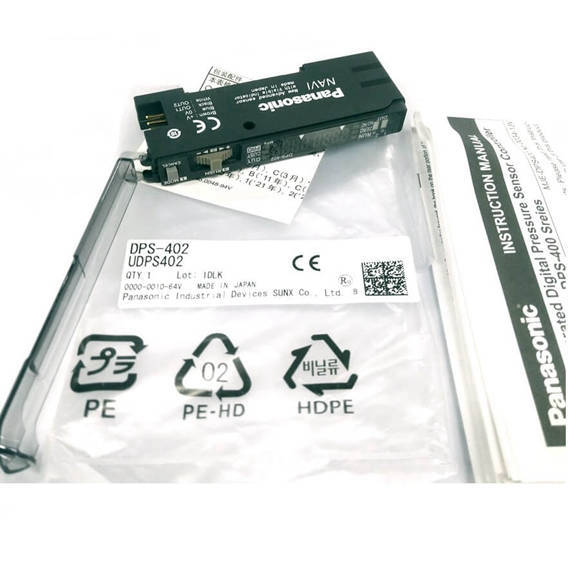

Panasonic Digital Pressure Sensor(For Gas) DPS-401 DPS-402

Series#: Panasonic Pressure Sensor

Product Details

Qty:

Specification

Type For compound pressure / vacuum pressure For positive pressure
Model No. DPS-401 DPS-402
CE marking directive compliance EMC Directive, RoHS Directive
Applicable sensor head Compound pressure : DPH-101□
Vacuum pressure : DPH-103□
Positive pressure : DPH-102□
Rated pressure range Compound pressure: -100.0 to +100.0kPa
Vacuum pressure: 0 to -101kPa
Positive pressure: 0 to +1.000MPa
Display / set pressure range Compound pressure: –199.9 to +199.9 kPa
Vacuum pressure: +101.3 to –101.3 kPa
Positive pressure: –1.050 to +1.050 MPa
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power consumption
(Note 2)
Normal operation: 650 mW or less (Current consumption 25 mA or less at 24 V supply voltage)
ECO mode: 500 mW or less (Current consumption 20 mA or less at 24 V supply voltage)
Sensor head supply voltage Same as supply voltage
Sensor head input Input voltage range: 1 to 5 V DC (over rated pressure range)
Comparative outputs
(Comparative output 1, 2)
NPN open-collector transistor
・Maximum sink current: 50 mA (Note 3)
・Applied voltage: 30 V DC or less (between comparative output and 0 V)
・Residual voltage: 1.5 V or less (Note 4) [at 50 mA (Note 3) sink current]
Output operation NO / NC, selectable by jog switch
Hysteresis Minimum 0 digit, variable by hysteresis setting
Repeatability With compound pressure type connected: within ±0.2 % F.S. (±4 digits), With vacuum / positive pressure type connected: within ±0.2 % F.S. (±2 digits)
Response time 150 μs, 500 μs, 1 ms, 5 ms, 10 ms, 50 ms, 100 ms, 500 ms, selectable by jog switch
Ambient temperature –10 to +50℃ +14 to +122℉ (cascading 8 to 16 controllers: –10 to +45℃ +14 to +133℉) (No dew condensation or icing allowed), Storage: –20 to +70℃ –4 to +158℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Temperature characteristics Over ambient temperature range –10 to +50℃ +14 to +122℉: within ±0.5 % F.S. of pressure at +25℃ +77℉
Material Enclosure: Heat-resistant ABS, Protective cover: Polycarbonate, Jog switch: ABS, MODE key: Acrylic
Weight Net weight:20 g approx.
