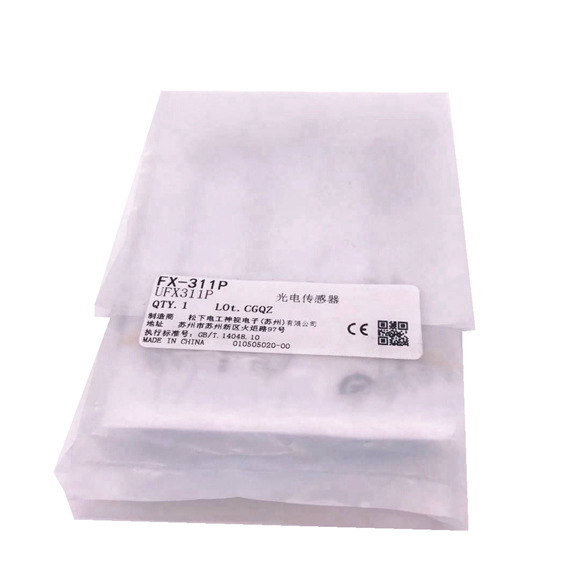

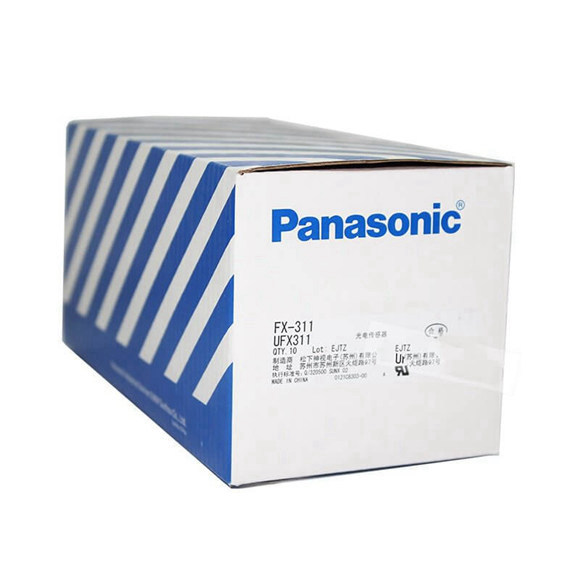

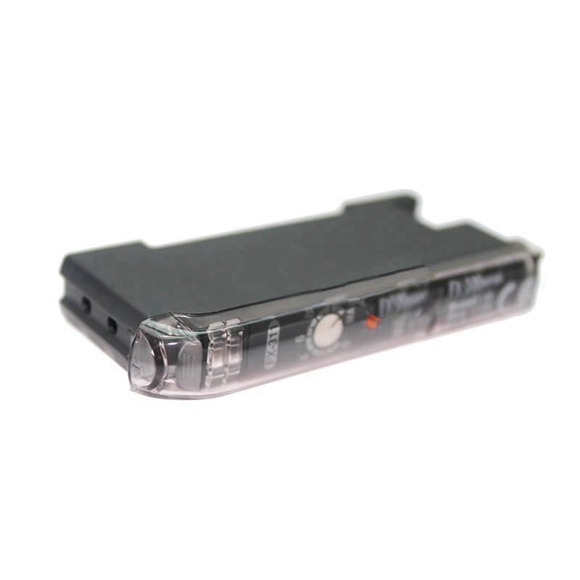

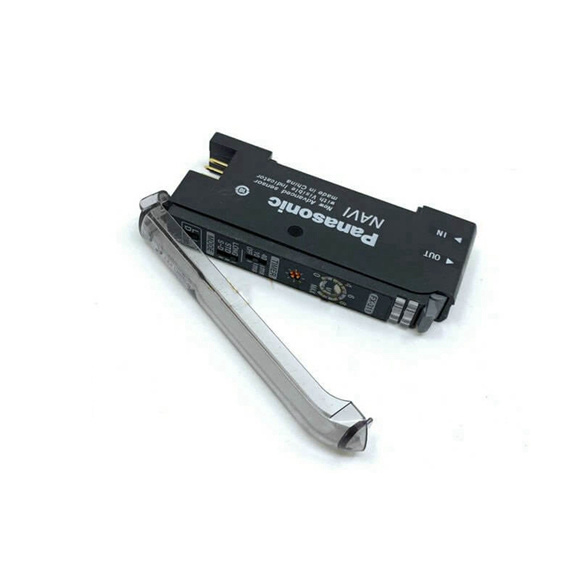

Panasonic Fiber Sensor FX-311 FX-311B FX-311G FX-311P FX-311BP FX-311GP

Series#: Panasonic Fiber Sensor

Product Details

Qty:

Specification

Type Red LED Blue LED Green LED
NPN output FX-311 FX-311B FX-311G
PNP output FX-311P FX-311BP FX-311GP
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power consumption 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage)
Output <NPN open-collector transistor>
• Maximum sink current: 100 mA
(50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 1.5 V or less
[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]<PNP open-collector transistor>
• Maximum source current: 100 mA
(50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage: 1.5 V or less
[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]
Response time <Red LED type>
250 μs or less (STD / S-D), 2 ms or less (LONG) selectable with selection switch<Blue LED type / Green LED type>
150 μs or less (FAST), 250 μs or less (STD), 2 ms or less (LONG) selectable with selection switch
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable light received condition or stable dark condition)
Sensitivity adjuster 12-turn potentiometer with indicator (Pointer part: red backlight) (Note 2)
Timer function Incorporated with OFF-delay timer, selectable either effective (approx. 10 ms or 40 ms) or ineffective
Automatic interference
prevention function
Incorporated (Up to 4 sets of fiber heads can be mounted close together.) (Note 3)
Pollution degree 3 (Industrial environment)
Ambient temperature -10 to +55 ℃ -14 to +131 ℉
(If 4 to 7 units are connected in cascade: -10 to +50 ℃ +14 to +122 ℉,
if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉)
(No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 ℓx at the light-receiving face
EMC EN 60947-5-2
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note 4)
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note 4)
Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.03 in amplitude in X, Y and Z directions for two hours each
Shock resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each
Emitting element
(modulated)
Red LED Blue LED Green LED
Material Enclosure: Heat-resistant ABS, Case cover: Polycarbonate
Connecting method Connector (Note 5)
Cable length Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 15 g approx., Gross weight: 20 g approx.
