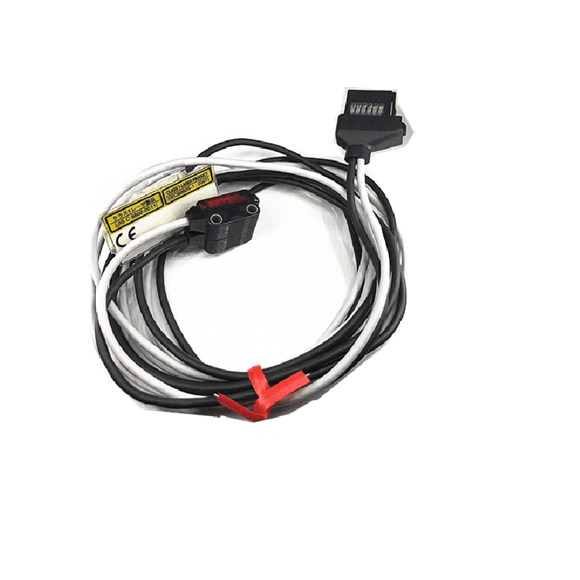

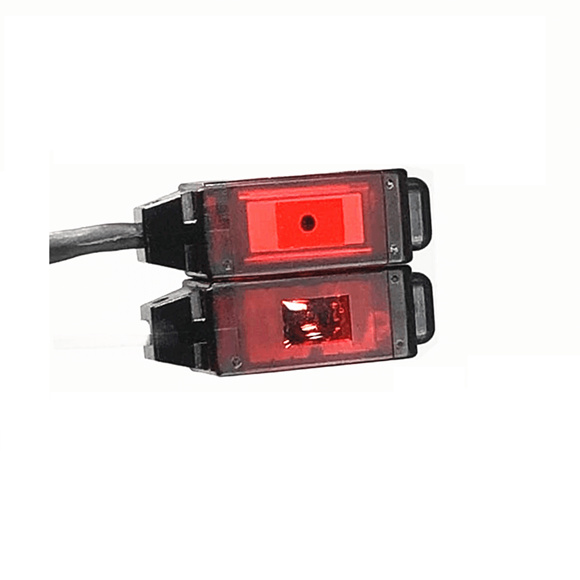

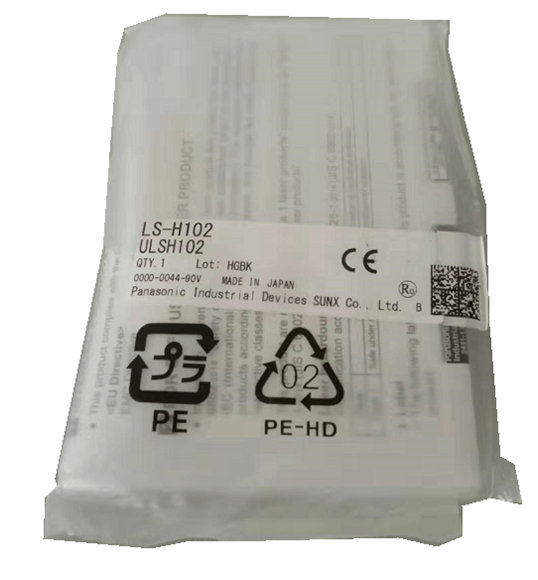

Panasonic Laser Sensor LS-H101 LS-H102 LS-H201 LS-H901

Series#: Panasonic Laser Sensor

Product Details

Qty:

Specification

Type Thru-beam type Coaxial reflective type Coaxial retroreflective type
Type Cylindrical Square
Model No. LS-H101 LS-H102 LS-H201 LS-H901
CE marking directive compliance EMC Directive, RoHS Directive
Applicable amplifiers LS-501(P), LS-501(P)-C2 (Note 2)


H-SP

1m 3.281 ft 1m 3.281 ft 150mm 5.906 in 0.01 to 1m 0.033 to 3.281 ft
FAST 1m 3.281 ft 1m 3.281 ft 200mm 7.874 in 0.01 to 1m 0.033 to 3.281 ft
STD 1m 3.281 ft 1m 3.281 ft 300mm 11.811 in 0.01 to 1m 0.033 to 3.281 ft
LONG 1m 3.281 ft 1m 3.281 ft 450mm 17.717 in 0.01 to 1.5m 0.033 to 4.921 ft
U-LG 1m 3.281 ft 1m 3.281 ft 600mm 23.622 in 0.01 to 2m 0.033 to 6.562 ft
HYPR 1m 3.281 ft 1m 3.281 ft 750mm 29.528 in 0.01 to 2.5m 0.033 to 8.202 ft
Spot size ø5 mm ø0.197 in approx. or less
(at a distance from the
emitter of 1 m 3.281 ft)
ø5 mm ø0.197 in approx. or less
(at a distance from the emitter of 1 m 3.281 ft)
ø2 mm ø0.079 inapprox. or less (at a distance from the sensor head of 300 mm 11.811 in) ø6 mm ø0.236 inapprox. or less
(at a distance from the sensor head of 1 m 3.281 ft)
Sensing object Opaque, translucent, or transparent object (Note 5)
Operation indicator Orange LED (lights up when the amplifier output is ON)


Protection

IP40 (IEC) IP67 (IEC) IP40 (IEC) IP40 (IEC)
Ambient temperature -10 to +55℃ + 14 to + 131 ℉ (No dew condensation or icing allowed),
Storage:-20 to +70℃ -4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage:35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage resistance 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Material Enclosure: Stainless steel (SUS303)
Cover: Polycarbonate
Enclosure: PBT
Cover: Acrylic
Enclosure: PBT, Indicator cover: Polycarbonate
Beam-emitting / receiving surfaces: Glass
Cable 0.09 mm,2 2-core shielded cable, 2 m 6.562 ft long (Note 7) 0.15 mm,2 2-core two parallel shielded cables, 2 m 6.562 ft long (Note 7)
Weight Net weight: 50 g approx.
Gross weight: 75 g approx.
Net weight: 50 g approx.
Gross weight: 70 g approx.
Net weight: 50 g approx.
Gross weight: 80 g approx.
Net weight: 50 g approx.
Gross weight: 85 g approx.
Accessories M6 screw: 4 pcs.
Toothed lock washer: 2 pcs.
MS-EXL2-2
(Mounting plate): 2 pcs.
MS-LS-1
(Mounting bracket): 1pc.
MS-LS-1(Mounting bracket):1pc.
RF-330(Refrector): 1pc.
