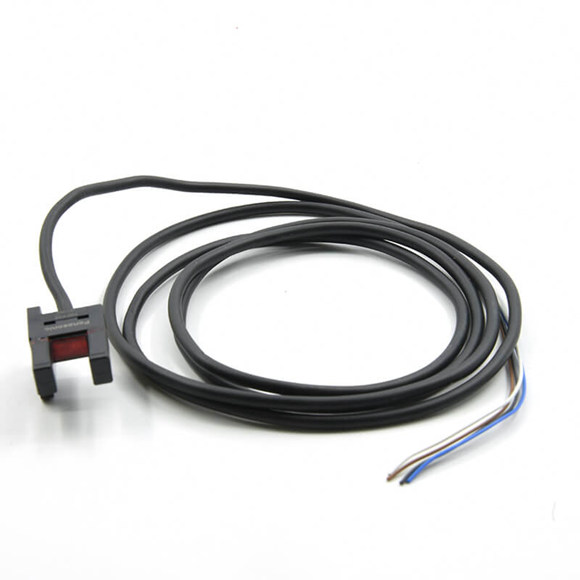

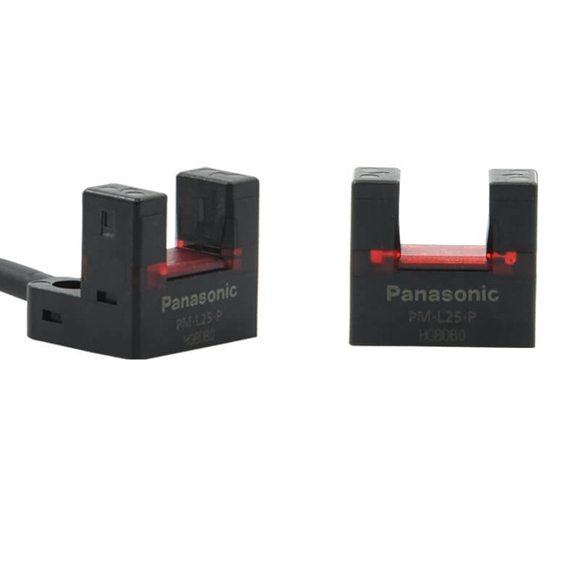

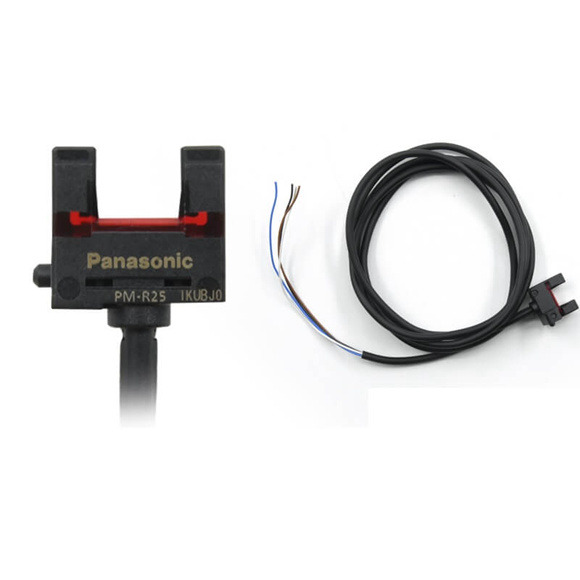

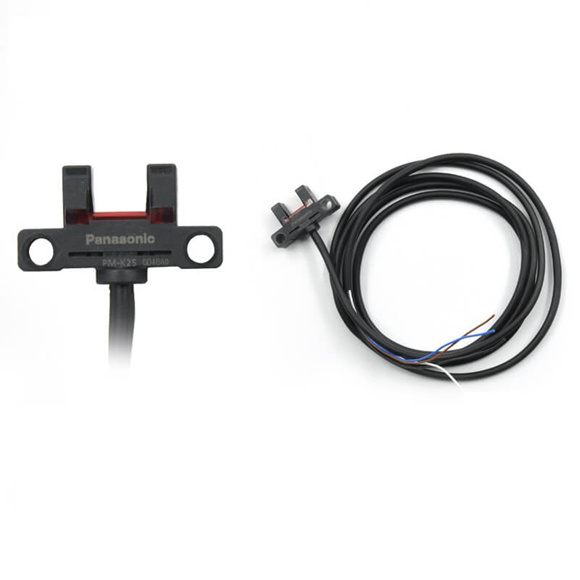

Panasonic Micro Photoelectric Sensor PM-K25 PM-L25 PM-U25 PM-F25 PM-R25

Series#: Panasonic Micro Photoelectric Sensor

Product Details

Qty:

Specification

Type Ultra-small / Cable type
Type Bending-resistant cable 3 m 9.843 ft cable
 NPN output PM-□25 PM-□25-R PM-□25-C3
PNP output PM-□25-P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 6 mm 0.236 in (fixed)
Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output <NPN output type>
NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)<PNP output type>
PNP open-collector transistor
・Maximum source current: 50 mA
・Applied voltage: 30 V DC or less (between output and + V)
・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)


Output operation

Incorporated with 2 outputs: Light-ON / Dark-ON
Short-circuit protection Incorporated
Response time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz) (Note 2)
Operation indicator Orange LED (lights up under light received condition)
Pollution degree 3
Protection IP64(IEC)
Ambient temperature
(Note 3, 4)
–25 to +55 ℃ –13 to +131 ℉ (No dew condensation or icing allowed), Storage: –30 to +80 ℃ –22 to +176 ℉
Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT, Display section: Polycarbonate
Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long 0.1-mm2 4-core bending-resistant cabtyre cable, PVC, 1 m 3.281 ft long (Note 5, 6) 0.09-mm2 4-core cabtyre cable, PVC, 3 m 9.843 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 7)
Weight Net weight: 10 g approx., Gross weight: 15 g approx. Net weight: 30 g approx.,
Gross weight: 35 g approx.
