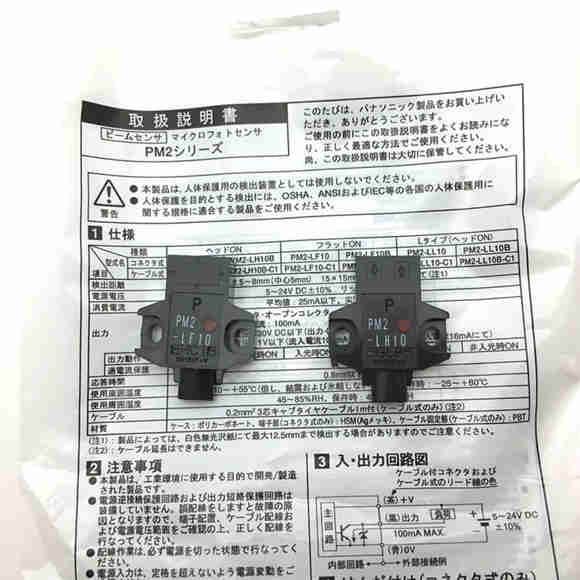

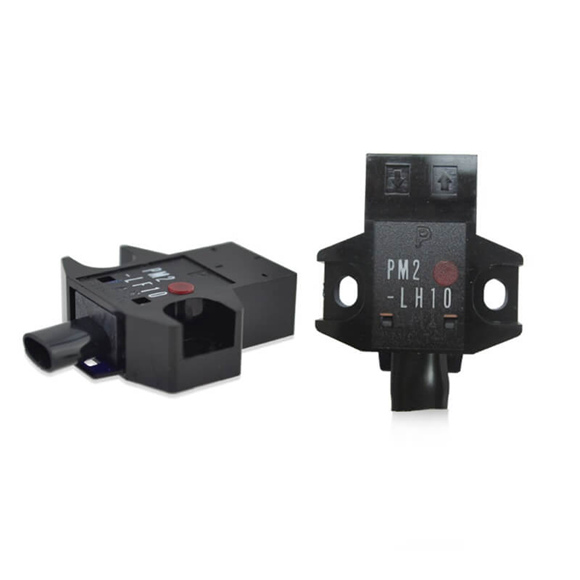

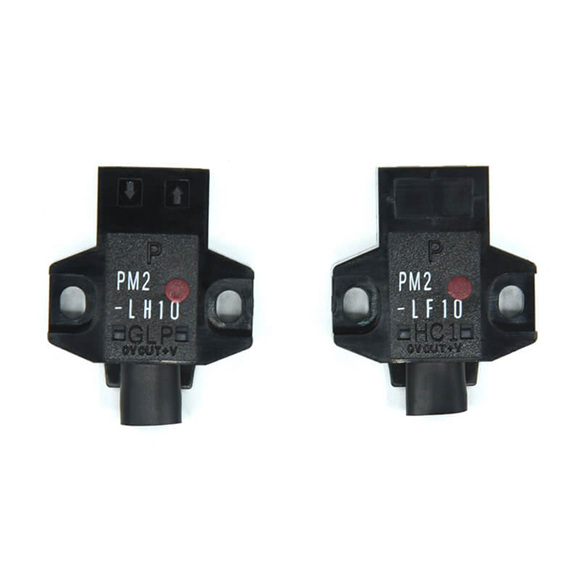

| Type | Connector type | ||
| Type | Top sensing | Front sensing | L type (Top sensing) |
| Light-ON | PM2-LH10 | PM2-LF10 | PM2-LL10 |
| Dark-ON | PM2-LH10B | PM2-LF10B | PM2-LL10B |
| CE marking directive compliance | EMC Directive, RoHS Directive | ||
| Sensing range | 2.5 to 8 mm 0.098 to 0.315 in (Conv. point: 5 mm 0.197 in) with white non-glossy paper (15 x 15 mm 0.591 in x 0.591 in) (Note 2) | ||
| Min. sensing object | ø0.05 mm ø0.002 in copper wire (Setting distance: 5 mm 0.197 in) | ||
| Hysteresis | 20 % or less of operation distance with white non-glossy paper (15 x 15 mm 0.591 x 0.591 in) | ||
| Repeatability (perpendicular to sensing axis) |
0.08 mm 0.003 in or less (Note 3) | ||
| Supply voltage | 5 to 24 V DC ±10 % Ripple P-P 5 % or less | ||
| Current consumption | Average: 25 mA or less, Peak: 80 mA or less | ||
| Output | NPN open-collector transistor • Maximum sink current: 100 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) |
||
| Utilization category | DC-12 or DC-13 | ||
| Overcurrent operation |
Incorporated | ||
| Response time | 0.8 ms or less | ||
| Operation indicator | Red LED (lights up when the output is ON) | ||
| Pollution degree | 3 (Industrial environment) | ||
| Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: –25 to +80 ℃ –13 to +176 ℉ |
||
| Ambient humidity | 45 to 85 % RH, Storage: 45 to 85 % RH | ||
| Ambient illuminance | Incandescent light: 3,500 lx or less at the light-receiving face | ||
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each | ||
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each | ||
| Emitting element | Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated) | ||
| Material | Enclosure: Polycarbonate, Terminal part: Copper alloy (Ag plated) | ||
| Cable | – | ||
| Wiring length | Total length up to 2 m 6.562 ft is possible with 0.3 mm2, or more, cable. (If the cable is extended for 2 m 6.562 ft, or more, a capacitor of 10 µF must be connected between +V and 0 V terminals.) |
||
| Weight | Net weight: 4.5 g approx. Gross weight: 85 g approx. (10 pcs. package) |
Net weight: 4 g approx. Gross weight: 80 g approx. (10 pcs. package) |
|
