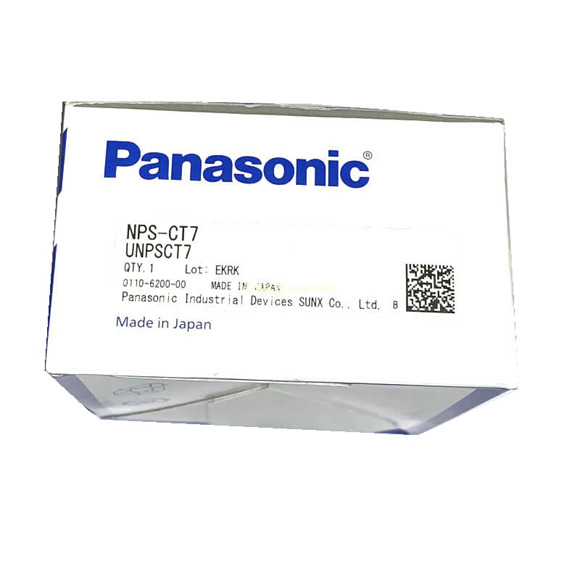

Panasonic ON / OFF Input Sensor Controller NPS-C7 NPS-CT7 NPS-C7W

Series#: Panasonic Proximity Sensor

Product Details

Qty:

Specification

Type DIN rail mounting
Type General use High-performance Two sensor connection
Model No. NPS-C7 NPS-CT7 NPS-C7W
Applicable sensors Photoelectric sensor, inductive proximity sensor, etc., with NPN transistor output or relay output
Supply voltage 100 to 240 V AC ± 10 %
Power consumption 6 VA or less
Voltage 12 V DC ± 10 % (incorporated with short-circuit protection)
Current 150 mA max. 130 mA max. 120 mA max.
Output Relay contact 1c
・Switching capacity:
250 V 3 A AC (resistive load)
・Electrical life:
100,000 switching operations or more
(rated load)(at 1,800 operations/hour)
・Mechanical life:
10 million switching operations or more
(at 36,000 operations/hour)NPN open-collector transistor
・Maximum sink current: 100 mA or less
・Applied voltage: 30 V DC or less
(between output and 0 V)
・Residual voltage:
1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
Relay contact 1c x2
・Switching capacity:
250 V 3 A AC (resistive load)
・Electrical life:
100,000 switching operations or more
(rated load)(at 1,800 operations/hour)
・Mechanical life:
10 million switching operations or more
(at 36,000 operations/hour)


Output operation

Switchable normal operation or inverse operation
Response time Relay contact: 10 ms approx., NPN open-collector transistor: 5 μs or less 10 ms approx.


Power

Red LED (lights up when the power is ON)
Output (Note 2) Red LED (lights up when the output is ON)
Sensor signal input Red LED
(lights up when the sensor signal
input is effective)
External
synchronization input
Red LED
(lights up when the external
synchronization input is effective)
External synchronization function Gate trigger Gate trigger and edge trigger
Timer function Three function selectable timer
(Timer period: switchable either
40 ms to 1 sec. or 0.4 sec. to 10 sec.)
Ambient temperature -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Voltage withstandability 1,500 V AC for one min. between the power and the output terminals
Insulation resistance 10 MΩ, or more, with 500 V DC megger between the power and the output terminals
Vibration resistance 10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions two times each
Material Enclosure: ABS, Terminal block: PBT (Glass fiber reinforced)
Connecting method Terminal block
Weight Net weight: 160 g approx.
Accessories Short bar: 1 pc., NPS-CV (Protection cover): 1 pc., Short-circuit protection plate: 1 pc., Adjusting screwdriver: 1 pc. (NPS-CT7 only)
