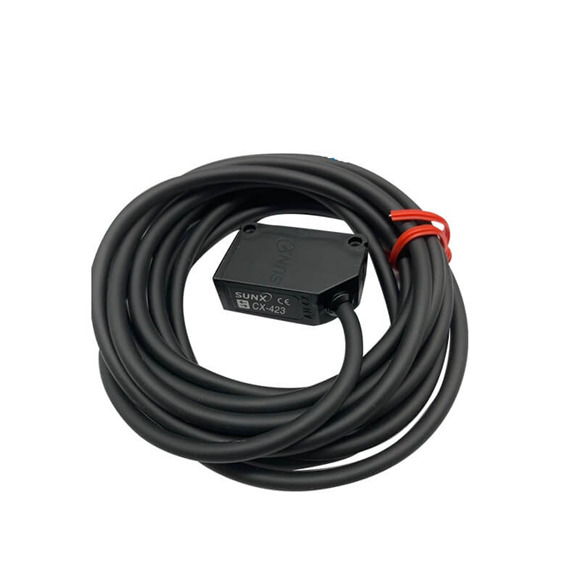

Panasonic Photoelectric Sensor CX-424/-421/-422 CX-424-P/-421-P/-422-P/-423-P

Series#: Panasonic Photoelectric Sensor

Product Details

Qty:

Specification

Type Diffuse reflective
Type Narrow-view
NPN output CX-424 CX-421 CX-422 CX-423
PNP output CX-424-P CX-421-P CX-422-P CX-423-P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 100 mm
3.937 in
(Note 3)
300 mm
11.811 in
(Note 3)
800 mm
31.496 in
(Note 3)
70 to 300 mm
2.756 to 11.811 in
(Note3)
Sensing object Opaque, translucent or
transparent object (Note 5)
Opaque, translucent
or transparent
object (Note 5)
(Min. sensing object:
ø0.5 mm ø0.020 in
copper wire)
Hysteresis 15 % or less of operation distance (Note 3)
Repeatability
(perpendicular to sensing axis)
1 mm 0.039 in or less 0.5 mm 0.020 in or less
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption 13 mA or less 15 mA or less
Output <NPN output type>
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 100 mA sink current)
1 V or less (at 16 mA sink current)<PNP output type>
PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less (between output and +V)
・Residual voltage: 2 V or less (at 100 mA source current)
1 V or less (at 16 mA source current)


Output operation

Switchable either Light-ON or Dark-ON
Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED
(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability indicator Green LED
(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type)
Power indicator
Sensitivity adjuster Continuously variable adjuster
(incorporated on the receiver for thru-beam type)
Automatic interference
prevention function
Incorporated
(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient temperature – 25 to +55 ℃ -13 to +131 ℉
(No dew condensation or icing allowed ),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated) Infrared LED Red LED
Peak emission wavelength 860 nm 0.034 mil 645 nm 0.025 mil
Material Enclosure: PBT (polybutylene terephthalate),
Lens: acrylic (CX-48□: polycarbonate),
Indicator cover: acrylic (CX-48□: polycarbonate)
Cable 0.2 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable
(thru-beam type: both emitter and receiver).
 Net weight 50 g approx.
Gross weight 60 g approx.
