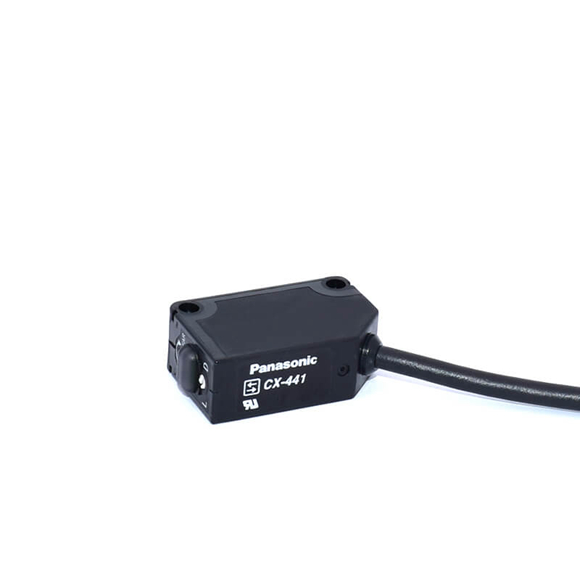

Panasonic Photoelectric Sensor CX-441(-P) CX-443(-P) CX-444(-P) CX-442(-P)

Series#: Panasonic Photoelectric Sensor

Product Details

Qty:

Specification

Type Adjustable range reflective
 NPN output CX-441 CX-443 CX-444 CX-442
PNP output CX-441-P CX-443-P CX-444-P CX-442-P
CE marking directive compliance EMC Directive, RoHS Directive
Adjustable range (Note 2) 20 to 50 mm 0.787 to 1.969 in 20 to 100 mm
0.787 to 3.937 in
40 to 300 mm
1.575 to 11.811 in
Sensing range
(with white non-glossy paper)
2 to 50 mm 0.079 to 1.969 in 15 to 100 mm
0.591 to 3.937 in
20 to 300 mm
0.787 to 11.811 in
Hysteresis 2 % or less of operation distance
(with white non-glossy paper)
5 % or less of operation distance
(with white non-glossy paper)
Repeatability Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption 20 mA or less
Output <NPN output type>
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 100 mA sink current)
1 V or less (at 16 mA sink current)<PNP output type>
PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less (between output and +V)
・Residual voltage: 2 V or less (at 100 mA source current)
1 V or less (at 16 mA source current)


Output operation

Switchable either Detection-ON or Detection-OFF
Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable operating condition)
Distance adjuster 5-turn mechanical adjuster
Sensing mode BGS / FGS functions switchable with wiring of sensing mode selection input
Automatic interference
prevention function (Note 3)
Incorporated
Protection IP67 (IEC)
Ambient temperature -25 to +55 ℃ -13 to +131 ℉
(No dew condensation or icing allowed ),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
EMC EN 60947-5-2
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Red LED (Peak emission wavelength: 650 nm 0.026 mil, modulated)
Spot diameter ø2 mm ø0.079 in approx.
(at 50 mm 1.969 in distance)
ø6.5 mm ø0.256 in approx.
(at 50 mm 1.969 in distance)
ø9 mm ø0.354 in approx.
(at 100 mm 3.937 in distance)
ø15 mm ø0.591 in approx.
(at 300 mm 11.811 in distance)
Material Enclosure: PBT (Polybutylene terephthalate), Front cover: Polycarbonate, Indicator cover: Polycarbonate
Cable 0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 55 g approx., Gross weight: 65 g approx.
