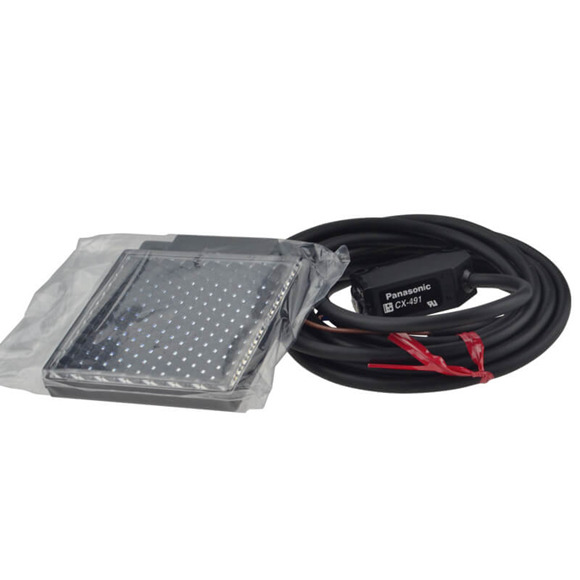

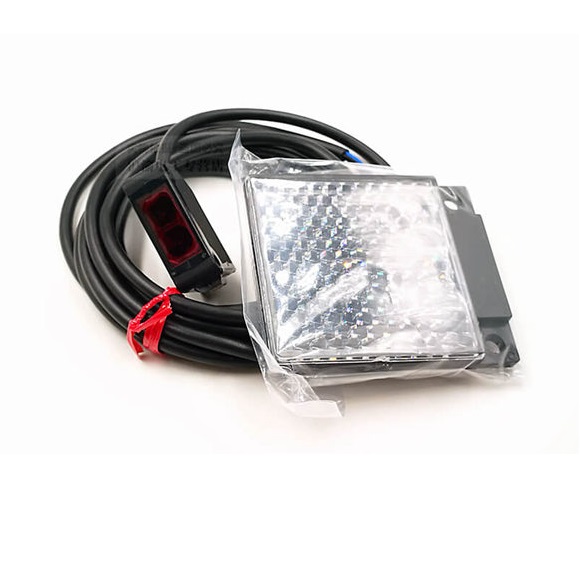

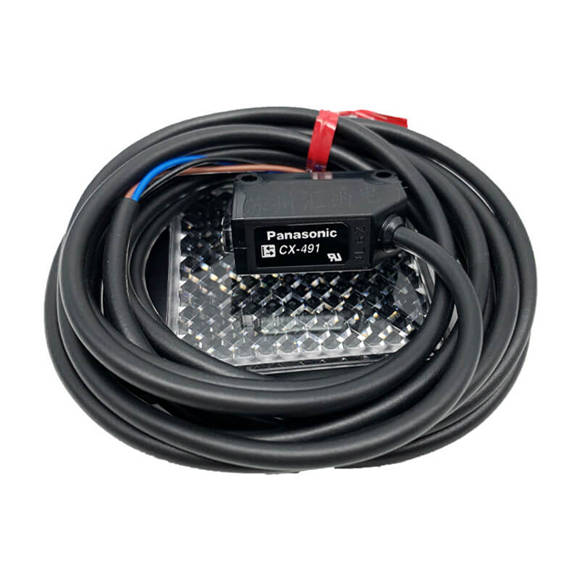

Panasonic Photoelectric Sensor CX-491/-491-P/-493 CX-493-P CX-481 CX-481-P

Series#: Panasonic Photoelectric Sensor

Product Details

Qty:

Specification

Type Retroreflective
Type With polarizing filters Long sensing range For transparent object sensing
NPN output CX-491 CX-493 CX-481 CX-483 CX-482
PNP output CX-491-P CX-493-P CX-481-P CX-483-P CX-482-P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 3 m
9.843 ft (Note 2)
5 m
16.404 ft (Note 2)
50 to 500 mm
1.969 to 19.685 in (Note 2)
50 to 1,000mm
1.969 to 39.37 in (Note 2)
0.1 to 2 m
0.328 to 6.562 ft (Note 2)
Sensing object ø50 mm
ø1.969 in or
more opaque,
translucent or
specular object
(Note 2, 5)
ø50 mm
ø1.969 in or
more opaque
or translucent
object
(Note 2, 5)
ø50 mm ø1.969 in or more transparent,
translucent or opaque object
(Note 2, 5)
Hysteresis
Repeatability
(perpendicular to sensing axis)
0.5 mm 0.020 in or less
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption 13 mA or less 10 mA or less
Output <NPN output type>
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 100 mA sink current)
1 V or less (at 16 mA sink current)<PNP output type>
PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less (between output and +V)
・Residual voltage: 2 V or less (at 100 mA source current)
1 V or less (at 16 mA source current)


Output operation

Switchable either Light-ON or Dark-ON
Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED
(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability indicator Green LED
(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power indicator
Sensitivity adjuster Continuously variable adjuster
(incorporated on the receiver for thru-beam type)
Automatic interference
prevention function
Incorporated
(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient temperature – 25 to +55 ℃ -13 to +131 ℉
(No dew condensation or icing allowed ),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated) Red LED Infrared LED


Peak emission wavelength

680 nm 0.027 mil 650 nm 0.026 mil 870 nm 0.034 mil
Material Enclosure: PBT (polybutylene terephthalate),
Lens: acrylic (CX-48□: polycarbonate),
Indicator cover: acrylic (CX-48□: polycarbonate)
Cable 0.2 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable (thru-beam type: both emitter and receiver).
Net weight 50 g approx.
Gross weight 80 g approx.
Accessory RF-230 (Reflector): 1 pc.
