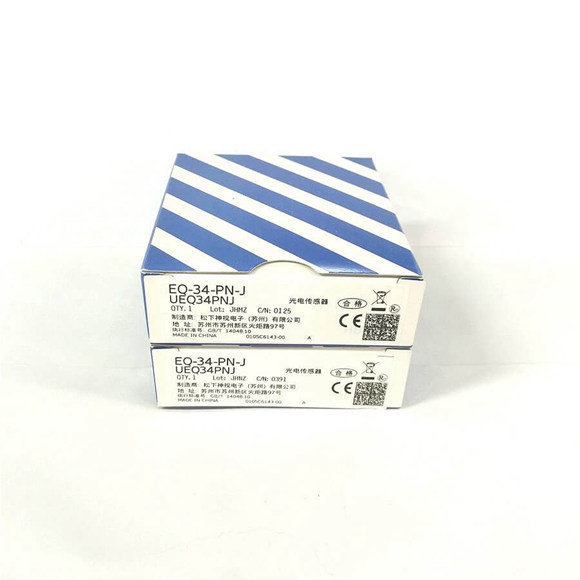

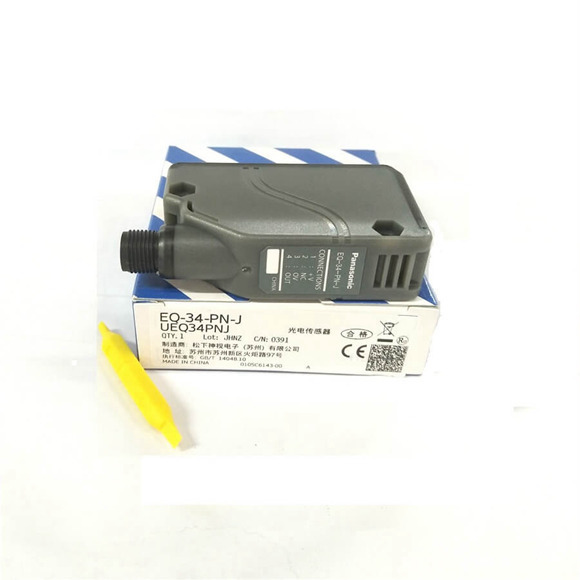

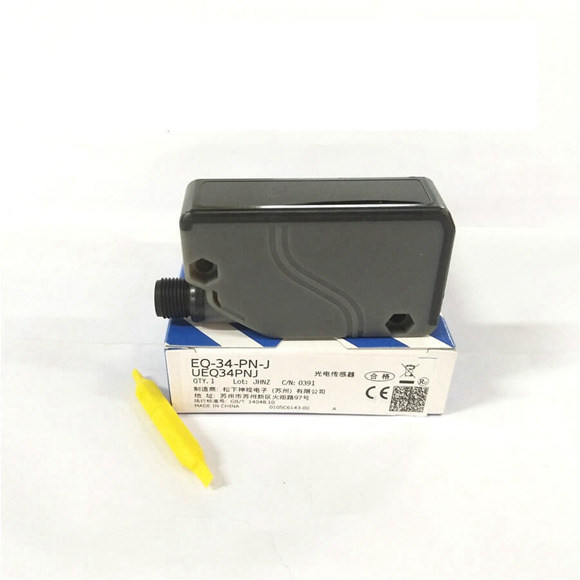

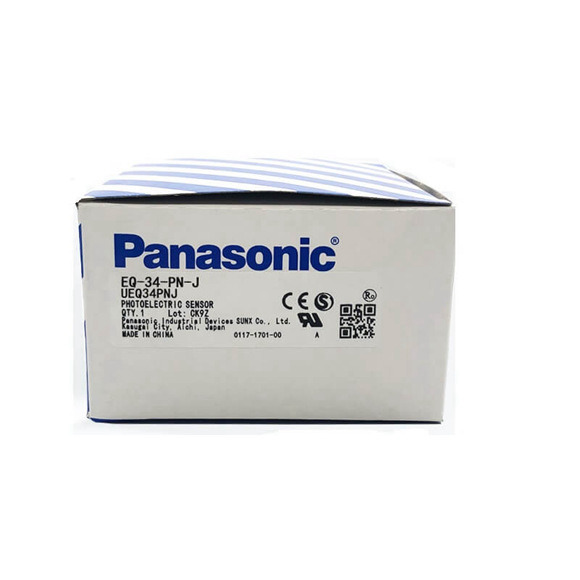

Panasonic Photoelectric Sensor EQ-34 EQ-34-PN EQ-34W

Product Details

Qty:

Specification

Type NPN output PNP output
Model No. EQ-34 EQ-34-PN
CE marking directive compliance EMC Directive, RoHS Directive
Adjustable range (Note 2) 0.2 to 2 m 0.656 to 6.562 ft
Sensing range
(with white non-glossy paper
at setting distance 2 m 6.562 ft)
0.1 to 2 m 0.328 to 6.562 ft
Hysteresis 10 % or less of operation distance (With white non-glossy paper)
Repeatability Along sensing axis: 10 mm 0.394 in or less, Perpendicular to sensing axis: 1 mm 0.039 in or less (with white non-glossy paper)
Supply voltage 10 to 30 V DC Ripple P-P 10 % or less
Current consumption 50 mA or less 55 mA or less
Output NPN open-collector transistor
• Maximum sink current: 100 mA
• Applied voltage:
30 V DC or less
(between output and 0 V)
• Residual voltage:
1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
PNP open-collector transistor
• Maximum source current: 100 mA
• Applied voltage:
30 V DC or less (between output and +V)
• Residual voltage:
1 V or less (at 100 mA source current)
0.4 V or less (at 16 mA source current)


Utilization category

DC-12 or DC-13
Output operation Switchable either Detection-ON or Detection-OFF
Short-circuit protection Incorporated
Response time 2 ms or less
Operation indicator Red LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable light received condition or stable dark condition)
Distance adjuster 2-turn mechanical adjuster with pointer
Automatic interference
prevention function
Incorporated (Note 3)


Pollution degree

3 (Industrial environment)
Protection IP67 (IEC)
Ambient temperature -20 to +55 ℃ -4 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Material Enclosure: Polyalylate and Polyethylene terephthalate, Lens: Polyalylate
Cable 0.3 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 150 g approx., Gross weight: 200 g approx.
Accessory Adjusting screwdriver: 1 pc.
