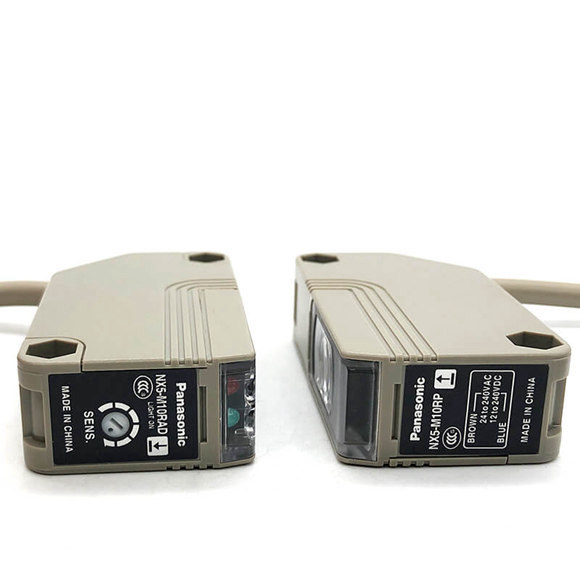

Type | Retroreflective | Diffuse reflective | ||||
Type | With polarizing filters | Long sensing range | ||||
Model No. | NX5-PRVM5A | NX5-PRVM5B | NX5-RM7A | NX5-RM7B | NX5-D700A | NX5-D700B |
Sensing range | 0.1 to 5 m 0.328 to 16.404 ft (Note 2) |
0.1 to 7 m 0.328 to 22.966 ft (Note 2) |
700 mm 27.559 in (Note 3) |
|||
Sensing object | φ50 mm φ1.969 in or more opaque, translucent or specular object (Note 2, 5) |
φ50 mm φ1.969 in or more opaque or translucent object (Note 2, 5) |
Opaque, translucent or transparent object (Note 5) |
|||
Hysteresis | – | 15 % or less of operation distance (Note 3) |
||||
Repeatability (perpendicular to sensing axis) |
0.2 mm 0.008 in or less | 0.3 mm 0.012 in or less | ||||
Supply voltage | 24 to 240 V AC +10–15 % or 12 to 240 V DC +10–15 % Ripple P-P 10 % or less | |||||
Power consumption | 2 VA or less | |||||
Output | Relay contact 1 c • Switching capacity: 250 V AC 1 A (resistive load) 30 V DC 2 A (resistive load) • Electrical life: 500,000 or more switching operations (switching frequency 3,600 operations/hour) 100,000 or more switching operations (switching frequency 3,600 operations/hour) • Mechanical life: 100 million or more switching operations (switching frequency 36,000 operations/hour) |
|||||
Output operation |
Light-ON | Dark-ON | Light-ON | Dark-ON | Light-ON | Dark-ON |
Response time | 10 ms or less | |||||
Operation indicator | Red LED (lights up when the output is ON) | |||||
Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
|||||
Power indicator | – | |||||
Sensitivity adjuster | Continuously variable adjuster | – | Continuously variable adjuster | |||
Automatic interference prevention function |
Incorporated (Two units of sensors can be mounted close together.) | |||||
Pollution degree | 3 (Industrial environment) | |||||
Protection | IP66 (IEC) | |||||
Ambient temperature | –20 to +55 ℃ –4 to +131 ℉ (No dew condensation or icing allowed) (Note 6), Storage: –30 to +70 ℃ –22 to +158 ℉ |
|||||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
Ambient illuminance | Incandescent light: 3,500 Lx at the light-receiving face | |||||
EMC | EN 61000-6-2, EN 61000-6-4 | |||||
Voltage withstandability | 1,500 V AC for one min. between power supply and output terminals, 1,000 V AC for one min. between relay contact terminals |
|||||
Insulation resistance | 20 MΩ, or more, with 500 V DC megger between power supply and output terminals, and between relay contact terminals | |||||
Vibration resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each | |||||
Shock resistance | 500 m/s2 (50 G approx.) in X, Y and Z directions for three times each | |||||
Emitting element | Red LED (modulated) | Infrared LED (modulated) | ||||
Peak emission |

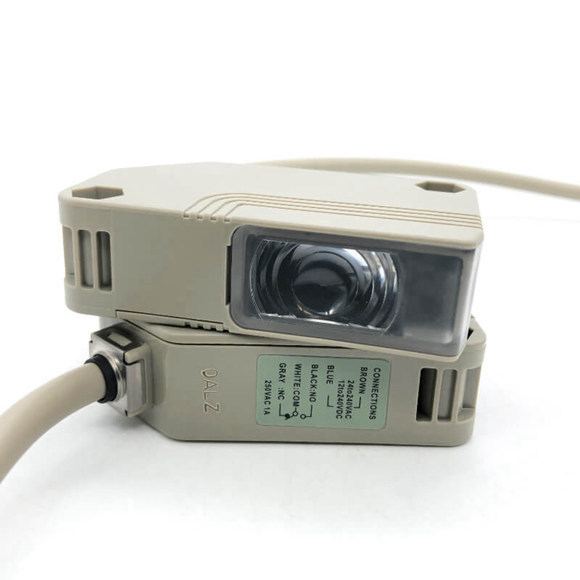

660 nm 0.026 mil | 880 nm 0.035 mil | ||||
Material | Enclosure: Polycarbonate, Lens: Polycarbonate, Cover: Polycarbonate, Front cover (retroreflective type sensor only) : Acrylic | |||||
Cable | 0.3 mm2 5-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long | |||||
Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable (thru-beam type: both emitter and receiver). | |||||
Net weight | 140 g approx. | |||||
Accessories | RF-230 (Reflector): 1 pc. Adjusting screwdriver: 1 pc. |
RF-230 (Reflector): 1 pc. | Adjusting screwdriver: 1 pc. |
