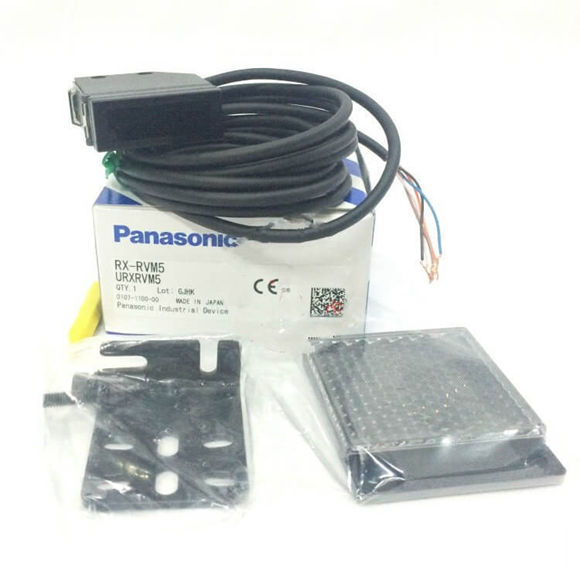

| Type | Thru-beam | |||
| Type | Infrared | Red | Green | |
| Type | Long sensing range |
|||
| Model No. | RX-M10 | RX-M50 | RX-M2R | RX-500G |
| CE marking directive compliance | EMC Directive, RoHS Directive | |||
| Sensing range | 10 m 32.808 ft |
50 m 164.042 ft |
2 m 6.562 ft |
500 mm 19.685 in |
| Sensing object | φ10 mm 0.394 in or more opaque object (Note 4) | |||
| Hysteresis | – | |||
| Repeatability (perpendicular to sensing axis) |
0.5 mm 0.020 in or less | |||
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||
| Current consumption | Emitter: 20 mA or less (RX-M50: 25 mA or less), Receiver: 25 mA or less |
|||
| Sensing output | NPN open-collector transistor • Maximum sink current: 100 mA • Applied voltage: 30 V DC or less (between sensing output and 0 V) • Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
|||
| Utilization category | DC-12 or DC-13 | |||
| Output operation | Switchable either Light-ON or Dark-ON | |||
| Short-circuit protection |
Incorporated | |||
| Self-diagnosis output | NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between self-diagnosis output and 0 V) • Residual voltage: 1.5 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
|||
| Response time | 1 ms or less | |||
| Test input (emission halt) function |
Incorporated | |||
| Operation indicator | Red LED (lights up when the sensing output is ON) | |||
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
|||
| Emitting indicator | Red LED (lights up during beam emission) | |||
| Sensitivity adjuster | Continuously variable adjuster | |||
| Automatic interference prevention function |
– | |||
| Pollution degree | 3 (Industrial environmrnt) | |||
| Protection | IP67 (IEC) | |||
| Ambient temperature | –25 to +60 ℃ –13 to +140 ℉ (No dew condensation or icing allowed), Storage: –30 to +70 ℃ –22 to +158 ℉ |
|||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
| Ambient illuminance | Incandescent light: 3,500 Lx or less at the light-receiving face | |||
| Voltage withstandability |
1,000 V AC for one min. between all supply terminals connected together and enclosure | |||
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each | |||
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each | |||
| Emitting element (modulated) |
Infrared LED | Red LED | Green LED | |
|
Peak emission |
880 nm 0.035 mil |
660 nm 0.026 mil |
570 nm 0.022 mil |
|
| Material | Enclosure: Die-cast zinc alloy, Indicator cover: Polyethersulphone, Lens: Polycarbonate |
|||
| Cable | Emitter: 0.15 mm2 3-core oil, heat and cold resistant cabtyre cable, 2 m 6.562 ft long Receiver: 0.15 mm2 4-core oil, heat and cold resistant cabtyre cable, 2 m 6.562 ft long |
|||
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable (thru-beam type: both emitter and receiver). |
|||
| Net weight | Emitter: 70 g approx. (RX-M50: 75 g approx.) Receiver: 70 g approx. (RX-M50: 75 g approx.) |
|||
| Accessories | MS-RX-1 (Sensor mounting bracket) : 1 set for emitter and receiver Adjusting screwdriver : 1 pc. |
|||
