Panasonic PLC Extension AFP0RE8X AFP0RE8YT AFP0RE8YP AFP0RE16X

Series#: Panasonic PLC

Product Details

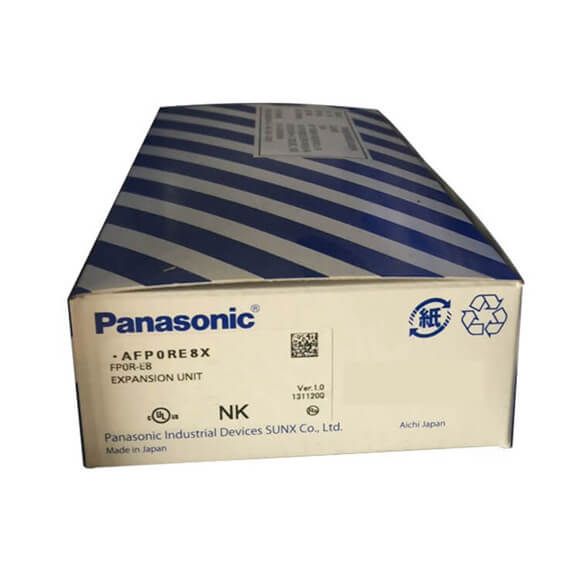

  • Panasonic PLC Extension AFP0RE8X AFP0RE8YT AFP0RE8YP AFP0RE16X
  • We are First Class Panasonic plc dealer and Panasonic plc distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor,Panasonic HMI,Panasonic VFD and Panasonic Sensors and Panasonic Relays So on,
  • 100% Original and new,In stock by Panasonic PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Product type of FP0R control unit C10

(Relay output type only)

C14

(Relay output type only)

C16

(Transistor output type only)

C32

(Transistor output type only)

T32

(Transistor output type only)

F32

(Transistor output type only)

Programming method / Control method Relay symbol / Cyclic operation




Control unit only (No expansion)

10 points

[Input: 6, Relay

Output: 4]

14 points

[Input: 8, Relay

Output: 6]

16 points

[Input: 8, Transistor

Output: 8]

32 points

[Input: 16, Transistor

Output: 16]

32 points

[Input: 16, Transistor Output: 16]



With expansion 1

Same type of control and expansion units (Note)

Max. 58 points Max. 62 points Max. 112 points Max. 128 points Max. 128 points


With expansion 2

Mix type of relay and transistor units (Note)

Max. 106 points Max. 110 points Max. 112 points Max. 128 points Max. 128 points
Program memory EEPROM (no backup battery required)
Program capacity 16 k steps 32 k steps
Number of instructions

Basic instructions

110 types approx.


High-level instructions

210 types approx.
Operation speed

Up to 3,000 steps

Basic instructions: 0.08 µs min. Timer instructions: 2.2 µs min. High-level instructions: 0.32 µs (MV instruction) min.


3,001st. and later steps

Basic instructions: 0.58 µs min. Timer instructions: 3.66 µs min. High-level instructions: 1.62 µs (MV instruction) min.


Operation memory

Relay

Internal relay (R)

4,096 points
Timer / Counter (T/C) 1,024 points
Memory area

Data register (DT)

12,315 words 32,765 words




Index register (IX, IY)

14 words (IO to ID)
Master control relay points (MCR) 256 words
Number of labels (JMP and LOOP) 256 labels
Differential points Equivalent to the program capacity
Number of step ladder 1,000 stages
Number of subroutines 500 subroutines
Special functions

High speed counter

Single-phase: 6 points (50 kHz max. each) 2-phase: 3 channels (15 kHz max. each) (Note)


Pulse output

Not available 4 points (50 kHz max. each) 2 channels can be controlled individually. (Note)


PWM output

Not available 4 points (6 Hz to 4.8 kHz)


Pulse catch input / interrupt input

Total 8 points (with high speed counter)


Interrupt program

Input: 8 programs (6 programs for C10 only) / Periodic: 1 program / Pulse match: 4 programs


Periodical interrupt

In units of 0.5 ms: 0.5 ms to 1.5 sec. / In units of 10 ms: 10 ms to 30 sec.


Constant scan

In units of 0.5 ms: 0.5 ms to 600 ms




RS-232C port

One RS-232C port is mounted on each of C10CRS, C10CRM, C14CRS, C14CRM, C16CT, C16CP, C32CT,

C32CP, T32CT, T32CP, F32CT and F32CP type (3P terminal block) Transmission speed (Baud rate): 2,400 to 115,200 bits/sec., Transmission distance: 15 m 9.843 ft. Communication method: half duplex



Operation memory

Stored fixed area in EEPROM Backup of the entire area by FeRAM (without the need for a battery)






Counter: 16 points Internal relay: 128 points

Data register: 315 words

Backup of the entire

area by a built-in secondary battery



Self-diagnostic function

Watchdog timer (690 ms approx.), program syntax check
Real-time clock function Not available Available Not available


Other functions

Rewriting in RUN mode, download in RUN mode (incl. comments) 8-character password setting, and program upload protection
