| Item | Without Ethernet | With Ethernet | ||
| Type | NPN type | PNP type | NPN type | PNP type |

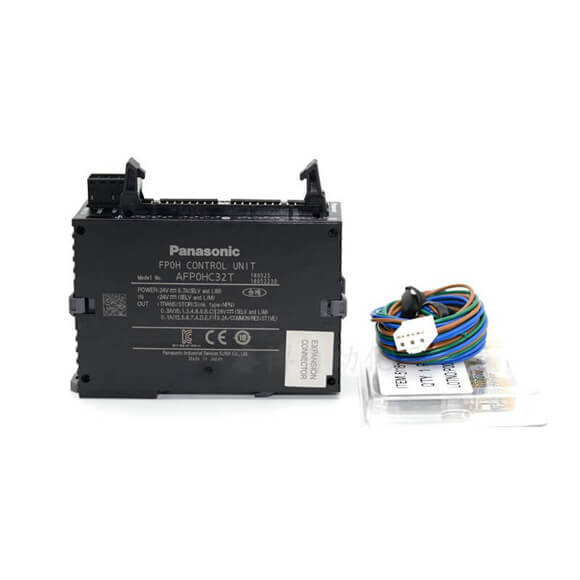

| Part No. | AFP0HC32T | AFP0HC32P | AFP0HC32ET | AFP0HC32EP |
| CE marking directive compliance | EMC Directive, RoHS Directive | |||
| Rated voltage | 24 V DC | |||
| Operating voltage range | 20.4 to 28.8 V DC | |||
| Consumption current | 140 mA or less | 170 mA or less | ||
| Allowed momentary power off time | 4 ms (at 20.4 V DC), 10 ms (24 V DC or higher) | |||
| Ambient temperature | 0 to +55 °C +32 to +131 °F, At storage: -40 to +70 °C – 40 to +158 °F | |||
| Ambient humidity | 10 to 95 % RH (at +25 °C +77 °F, no dew condensation allowed), At
storage: 10 to 95 % RH (at +25 °C +77 °F, no dew condensation allowed) |
|||
| Breakdown voltage
(Detection current: 5 mA) |
500 V AC for 1 minute
Input and output terminals ⇔ power and functional ground terminals Input terminals ⇔ Output terminals |
|||
| Insulation resistance
(Test voltage: 500 V DC) |
100 MΩ or more
Input and output terminals ⇔ power and functional ground terminals Input terminals ⇔ Output terminals |
|||
|
Vibration resistance |
5 to 8.4 Hz, single amplitude of 3.5 mm, 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, for 10 times each in X, Y, and Z directions (1 octave/min.) (JIS B 3502, IEC 61131-2) | |||
| Shock resistance | 147 m/s2, 4 times each in X, Y, and Z directions (JIS B 3502, IEC 61131-2) | |||
| Noise immunity | 1,000 V (p-p) with pulse widths 50 ns and 1 μs
(using a noise simulator) (Power supply terminal) |
|||
| Operating condition | Free from corrosive gasses and excessive dust | |||
| Overvoltage category | Category II | |||
| Degree of pollution | Pollution level 2 | |||
| Net weight | 110 g approx. each | 130 g approx. each | ||
