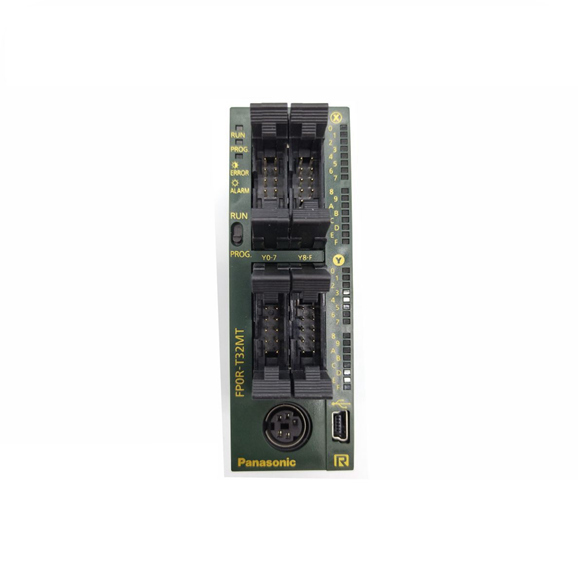

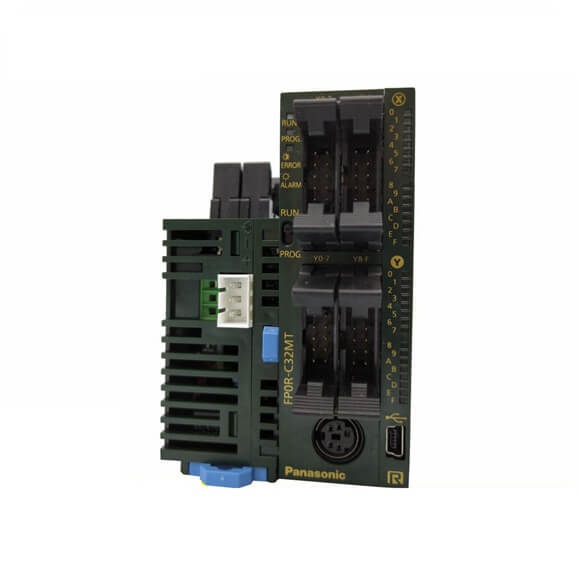

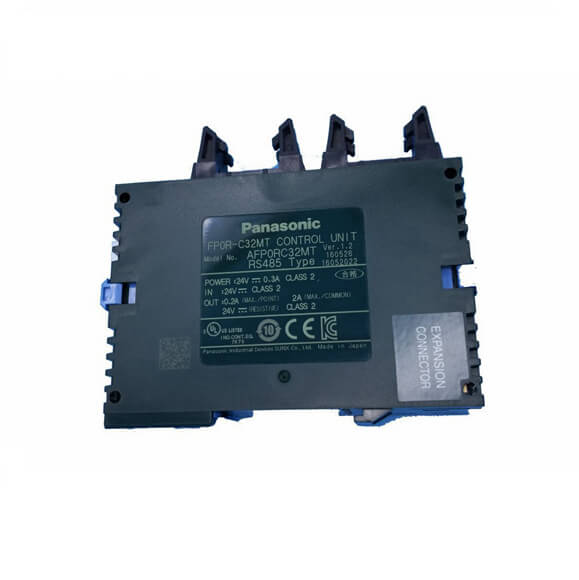

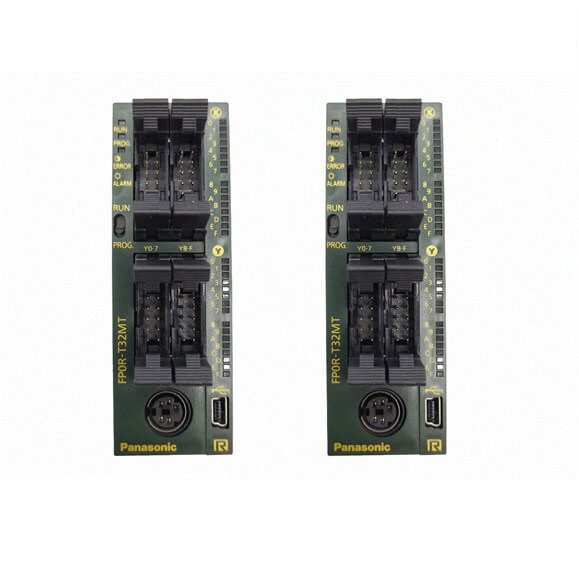

| Product type of FP0R control unit | C10(Relay output type only) | C14(Relay output type only) | C16(Transistor output type only) | C32(Transistor output type only) | T32(Transistor output type only) | F32(Transistor output type only) |
| Programming method / Control method | Relay symbol / Cyclic operation | |||||
| Control unit only (No expansion) | 10 points[Input: 6, Relay
Output: 4] |
14 points[Input: 8, Relay
Output: 6] |
16 points[Input: 8, Transistor
Output: 8] |
32 points[Input: 16, Transistor
Output: 16] |
32 points[Input: 16, Transistor Output: 16] | |
| With expansion 1Same type of control and expansion units (Note) | Max. 58 points | Max. 62 points | Max. 112 points | Max. 128 points | Max. 128 points | |
| With expansion 2Mix type of relay and transistor units (Note) | Max. 106 points | Max. 110 points | Max. 112 points | Max. 128 points | Max. 128 points | |
| Program memory | EEPROM (no backup battery required) | |||||
| Program capacity | 16 k steps | 32 k steps | ||||
| Basic instructions | 110 types approx. | |||||
| High-level instructions | 210 types approx. | |||||
| Up to 3,000 steps | Basic instructions: 0.08 µs min. Timer instructions: 2.2 µs min. High-level instructions: 0.32 µs (MV instruction) min. | |||||
| 3,001st. and later steps | Basic instructions: 0.58 µs min. Timer instructions: 3.66 µs min. High-level instructions: 1.62 µs (MV instruction) min. | |||||
| Relay Internal relay (R) | 4,096 points | |||||
| Timer / Counter (T/C) | 1,024 points | |||||
| Memory area Data register (DT) | 12,315 words | 32,765 words | ||||
| Index register (IX, IY) | 14 words (IO to ID) | |||||
| Master control relay points (MCR) | 256 words | |||||
| Number of labels (JMP and LOOP) | 256 labels | |||||
| Differential points | Equivalent to the program capacity | |||||
| Number of step ladder | 1,000 stages | |||||
| Number of subroutines | 500 subroutines | |||||
| High speed counter | Single-phase: 6 points (50 kHz max. each) 2-phase: 3 channels (15 kHz max. each) (Note) | |||||
| Pulse output | Not available | 4 points (50 kHz max. each) 2 channels can be controlled individually. (Note) | ||||
| PWM output | Not available | 4 points (6 Hz to 4.8 kHz) | ||||
| Pulse catch input / interrupt input | Total 8 points (with high speed counter) | |||||
| Interrupt program | Input: 8 programs (6 programs for C10 only) / Periodic: 1 program / Pulse match: 4 programs | |||||
| Periodical interrupt | In units of 0.5 ms: 0.5 ms to 1.5 sec. / In units of 10 ms: 10 ms to 30 sec. | |||||
| Constant scan | In units of 0.5 ms: 0.5 ms to 600 ms | |||||
| RS-232C port | One RS 232C port is mounted on each of C10CRS, C10CRM, C14CRS, C14CRM, C16CT, C16CP, C32CT,C32CP, T32CT, T32CP, F32CT and F32CP type (3P terminal block) Transmission speed (Baud rate): 2,400 to 115,200 bits/sec., Transmission distance: 15 m 9.843 ft. Communication method: half duplex | |||||
| Memory backup Program and system register | Stored program and system register in EEPROM | |||||
| Self-diagnostic function | Watchdog timer (690 ms approx.), program syntax check | |||||
| Real-time clock function | Not available | Available | Not available | |||
| Other functions | Rewriting in RUN mode, download in RUN mode (incl. comments) 8-character password setting, and program upload protection | |||||
