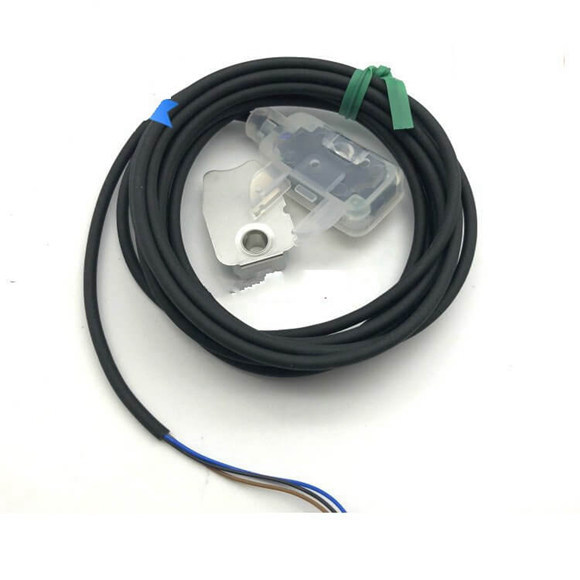

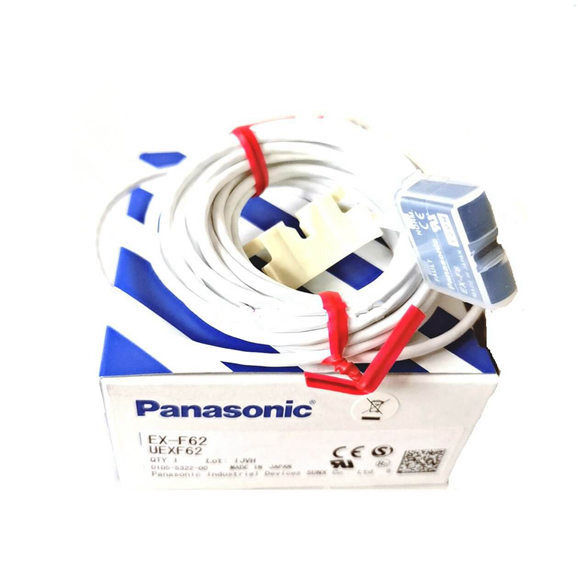

Panasonic PLeak Detection Sensor EX-F71/-F72/-F61/-F62 EX-F71-PN/-F72-PN/-F61-PN

Series#: Panasonic Photoelectric Sensor

Product Details

Qty:

Specification

Type General purpose Chemical-resistant
Type SUS mounting bracket type PVC mounting bracket type PFA mounting bracket type PVC mounting bracket type
NPN output EX-F71 EX-F72 EX-F61 EX-F62
PNP output EX-F71-PN EX-F72-PN EX-F61-PN EX-F62-PN
CE marking directive compliance EMC Directive, RoHS Directive
Sensing object Water, Fluorinert™ (Note 2, 3) Agent, such as Sulfuric acid, Hydrochloric acid, Phosphoric acid or Ammonia etc. (Note 2, 4, 6)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption 10 mA or less
(PNP output type: 15 mA or less)
15 mA or less
Output <NPN output type>
NPN open-collector transistor
– Maximum sink current: 50 mA
– Applied voltage: 30 V DC or less (between output and 0 V)
– Residual voltage: 1.0 V or less (at 50 mA sink current)
0.4 V or less (at 16 mA sink current)
<PNP output type>
PNP open-collector transistor
– Maximum source current: 50 mA
– Applied voltage: 30 V DC or less (between output and +V)
– Residual voltage: 1.0 V or less (at 50 mA source current)
0.4 V or less (at 16 mA source current)


Utilization category

DC-12 or DC-13
Output operation In normal state: ON, When leak detected or the sensor is mounted improperly: OFF
Short-circuit protection Incorporated
Response time 50 ms or less
FAULT indicator Red LED (lights up when the leak liquid is detected, or the sensor is mounted improperly)
NORMAL indicator Green LED (lights up when the sensor is mounted properly)
Pollution degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient temperature -10 to +60 ℃ +14 to +140 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ – 4 to +158 ℉ (Note 5)
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 1,000 lx or less at the light-receiving face
Emitting element Infrared LED (non-modulated)
Material Enclosure: Polypropylene Enclosure: PFA
Cable 0.1 mm2 3-core PVC cabtyre cable, 2 m 6.562 ft long 0.1 mm2 3-core PFA cabtyre cable, 3 m 9.843 ft long
Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 25 g approx. Net weight: 60 g approx.
Accessories MS-EX-F7-1
(SUS mounting bracket)
(Note 7): 1 pc.
MS-EX-F7-2, MS-EX-F7-3
(PVC mounting bracket) (Note 7): 1 pc.
each for two-point-fixing and adhesive-fixing
MS-EX-F6-1
(PFA mounting bracket): 1 pc.
MS-EX-F6-2
(PVC mounting bracket): 1 pc.
