| Item | Specifications | |||
| Contact arrangement | Nominal coil voltage | Single side stable | 2 coil latching | |

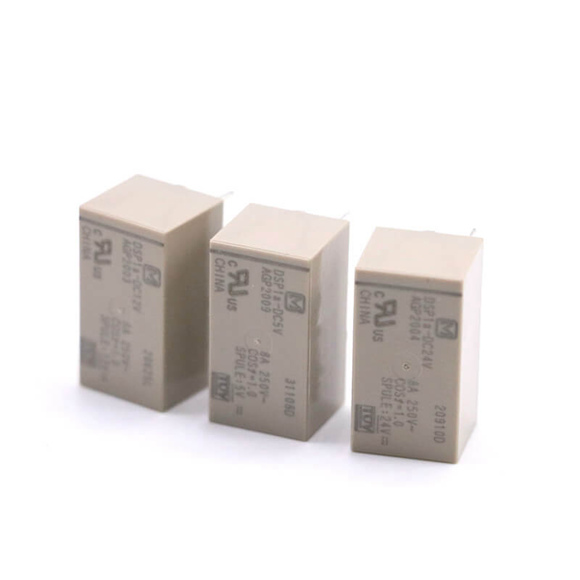

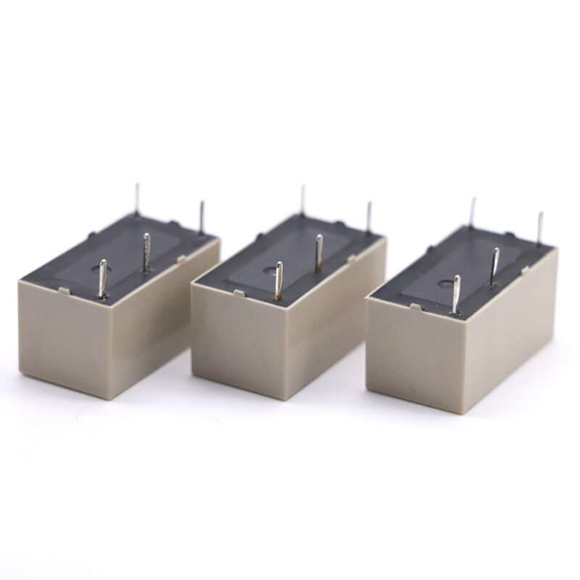

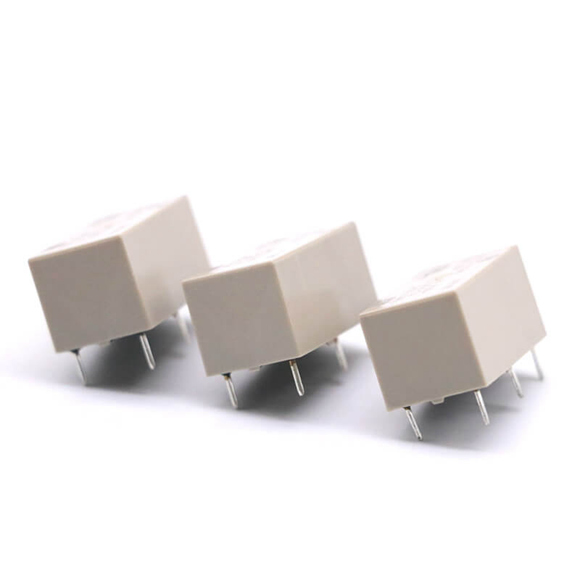

| 1 Form A | 3V DC | DSP1a-DC3V | DSP1a-L2-DC3V | |
| 1 Form A | 5V DC | DSP1a-DC5V | DSP1a-L2-DC5V | |
| 1 Form A | 6V DC | DSP1a-DC6V | DSP1a-L2-DC6V | |
| 1 Form A | 9V DC | DSP1a-DC9V | DSP1a-L2-DC9V | |
| 1 Form A | 12V DC | DSP1a-DC12V | DSP1a-L2-DC12V | |
| 1 Form A | 24V DC | DSP1a-DC24V | DSP1a-L2-DC24V | |

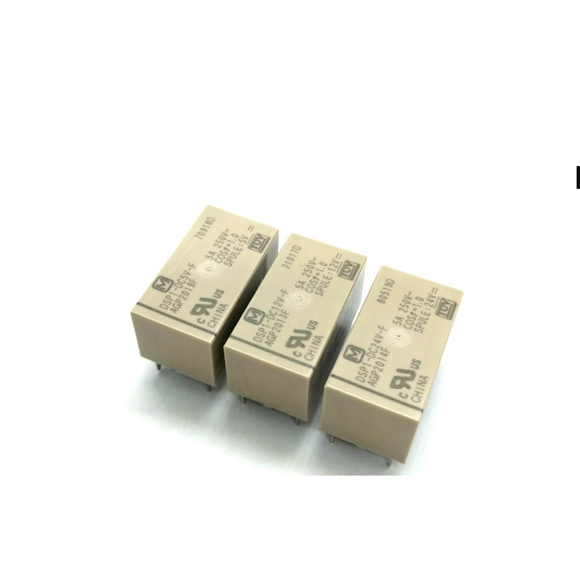

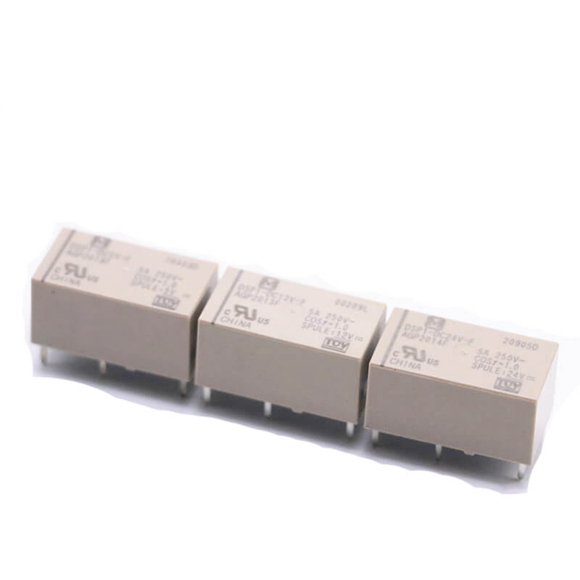

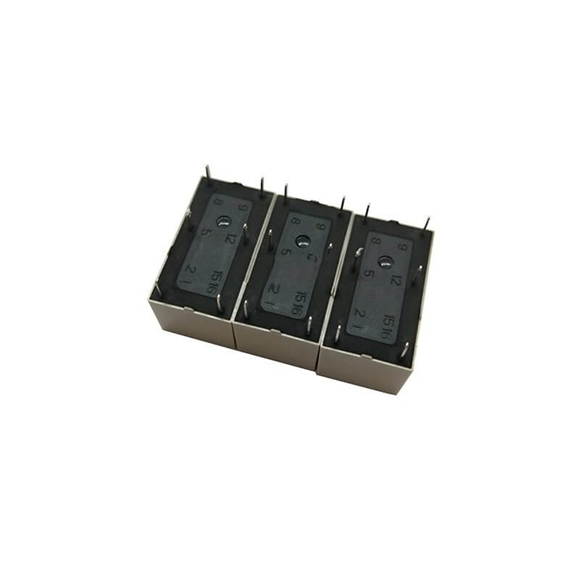

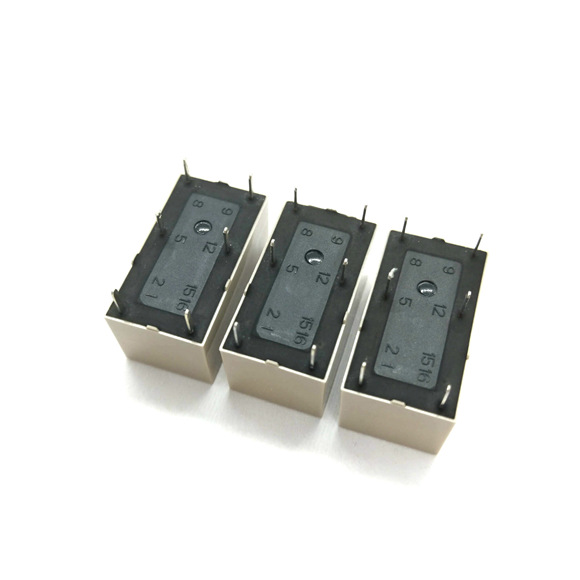

| 1 Form A | 3V DC | DSP1-DC3V-F | DSP1-L2-DC3V-F | |
| 1 Form B | 5V DC | DSP1-DC5V-F | DSP1-L2-DC5V-F | |
| 1 Form A | 6V DC | DSP1-DC6V-F | DSP1-L2-DC6V-F | |
| 1 Form B | 9V DC | DSP1-DC9V-F | DSP1-L2-DC9V-F | |
| 1 Form A | 12V DC | DSP1-DC12V-F | DSP1-L2-DC12V-F | |
| 1 Form B | 24V DC | DSP1-DC24V-F | DSP1-L2-DC24V-F | |
| 2 Form A | 3V DC | DSP2a-DC3V | DSP2a-L2-DC3V | |
| 2 Form A | 5V DC | DSP2a-DC5V | DSP2a-L2-DC5V | |
| 2 Form A | 6V DC | DSP2a-DC6V | DSP2a-L2-DC6V | |
| 2 Form A | 9V DC | DSP2a-DC9V | DSP2a-L2-DC9V | |
| 2 Form A | 12V DC | DSP2a-DC12V | DSP2a-L2-DC12V | |
| 2 Form A | 24V DC | DSP2a-DC24V | DSP2a-L2-DC24V | |
| Arrangement | 1 Form A | 1 Form A 1 Form B | 2 Form A | |
| Contact resistance (Initial) | Max. 30 mΩ (By voltage drop 6 V DC 1A) | |||
| Contact material | Au-flashed AgSnO2 type | |||
| Nominal switching capacity (resistive load) | 8A 250V AC, 5A 30V DC | 5A 250V AC, 5A 30V DC | ||
| Max. switching power (resistive load) | 2,000VA, 150W | 1,250VA, 150W | ||
| Max. switching voltage | 250 V AC, 125 V DC (0.2 A) | |||
| Max. switching current | 8A AC, 5A DC | 5A AC, DC | ||
| Nominal operating power | 300 mW | |||
| Min. switching capacity (Reference value)*1 | 10mA 5V DC | |||
| Insulation resistance (Initial) | Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section. | |||
|
Between open contacts |
1,000 Vrms for 1 min. (Detection current: 10 mA) | |||
| Between contact sets | 2,000 Vrms (1 Form A 1 Form B, 2 Form A) (Detection current: 10 mA) | |||
| Between contacts and coil | 3,000 Vrms for 1 min. (Detection current: 10 mA) | |||
| Surge breakdown voltage*2 (Initial)Between contacts and coil |
5,000V | |||
| Operate time [Set time] (at 20°C 68°F) (Initial) | Max. 10 ms [10ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) | |||
| Release time [Reset time] (at 20°C 68°F) (Initial) | Max. 5ms [10ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode) | |||
|
Functional |
Min. 196 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10μs.) | |||
| Destructive | Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.) | |||
| Mechanical | Min. 5 ×107 (at 180 times/min) | |||
| Electrical | Min.105 (resistive load) | |||
| Conditions for operation, transport and storage *3 (Not freezing and condensing at low temperature) |
Ambient temperature: –40°C to +60°C –40°F to +140°F |
Ambient temperature: –40°C to +65°C –40°F to +149°F |
Ambient temperature: –40°C to +60°C –40°F to +140°F |
|
| Approx. | 4.5 g .16 oz | |||
