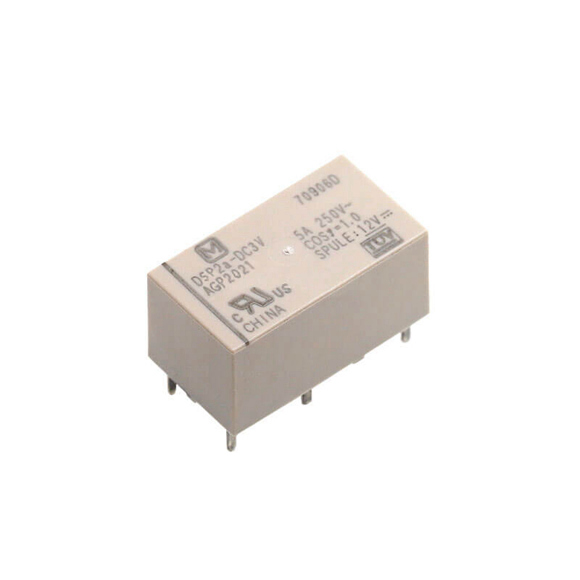

Panasonic Power DSP2a relays DSP2a-L2-DC12V DSP2a-L2-DC24V

Series#: Panasonic Power Relays

Product Details

Panasonic Power DSP2a relays DSP2a-L2-DC12V DSP2a-L2-DC24V
We are First Class Panasonic Relays dealer and Panasonic Relays distributor in China.
We can Supply All kinds of Panasonic Relays,such as Panasonic Control Panel Relays,Panasonic PhotoMOS Couplers,Panasonic Power Relays,Panasonic Signal Relays and Ect.
100% Original and new,In stock by Panasonic Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Specifications
Contact arrangement	Nominal coil voltage	Single side stable		2 coil latching
1 Form A	3V DC	DSP1a-DC3V		DSP1a-L2-DC3V
1 Form A	5V DC	DSP1a-DC5V		DSP1a-L2-DC5V
1 Form A	6V DC	DSP1a-DC6V		DSP1a-L2-DC6V
1 Form A	9V DC	DSP1a-DC9V		DSP1a-L2-DC9V
1 Form A	12V DC	DSP1a-DC12V		DSP1a-L2-DC12V
1 Form A	24V DC	DSP1a-DC24V		DSP1a-L2-DC24V
1 Form A	3V DC	DSP1-DC3V-F		DSP1-L2-DC3V-F
1 Form B	5V DC	DSP1-DC5V-F		DSP1-L2-DC5V-F
1 Form A	6V DC	DSP1-DC6V-F		DSP1-L2-DC6V-F
1 Form B	9V DC	DSP1-DC9V-F		DSP1-L2-DC9V-F
1 Form A	12V DC	DSP1-DC12V-F		DSP1-L2-DC12V-F
1 Form B	24V DC	DSP1-DC24V-F		DSP1-L2-DC24V-F
2 Form A	3V DC	DSP2a-DC3V		DSP2a-L2-DC3V
2 Form A	5V DC	DSP2a-DC5V		DSP2a-L2-DC5V
2 Form A	6V DC	DSP2a-DC6V		DSP2a-L2-DC6V
2 Form A	9V DC	DSP2a-DC9V		DSP2a-L2-DC9V
2 Form A	12V DC	DSP2a-DC12V		DSP2a-L2-DC12V
2 Form A	24V DC	DSP2a-DC24V		DSP2a-L2-DC24V
Arrangement	1 Form A		1 Form A 1 Form B	2 Form A
Contact resistance (Initial)	Max. 30 mΩ (By voltage drop 6 V DC 1A)
Contact material	Au-flashed AgSnO2 type
Nominal switching capacity (resistive load)	8A 250V AC, 5A 30V DC		5A 250V AC, 5A 30V DC
Max. switching power (resistive load)	2,000VA, 150W		1,250VA, 150W
Max. switching voltage	250 V AC, 125 V DC (0.2 A)
Max. switching current	8A AC, 5A DC		5A AC, DC
Nominal operating power	300 mW
Min. switching capacity (Reference value)*1	10mA 5V DC
Insulation resistance (Initial)	Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
Between open contacts	1,000 Vrms for 1 min. (Detection current: 10 mA)
Between contact sets	2,000 Vrms (1 Form A 1 Form B, 2 Form A) (Detection current: 10 mA)
Between contacts and coil	3,000 Vrms for 1 min. (Detection current: 10 mA)
Surge breakdown voltage*2 (Initial)Between contacts and coil	5,000V
Operate time [Set time] (at 20°C 68°F) (Initial)	Max. 10 ms [10ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time [Reset time] (at 20°C 68°F) (Initial)	Max. 5ms [10ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)
Functional	Min. 196 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10μs.)
Destructive	Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Mechanical	Min. 5 ×107 (at 180 times/min)
Electrical	Min.105 (resistive load)
Conditions for operation, transport and storage *3 (Not freezing and condensing at low temperature)	Ambient temperature: –40°C to +60°C –40°F to +140°F	Ambient temperature: –40°C to +65°C –40°F to +149°F		Ambient temperature: –40°C to +60°C –40°F to +140°F
Approx.	4.5 g .16 oz
