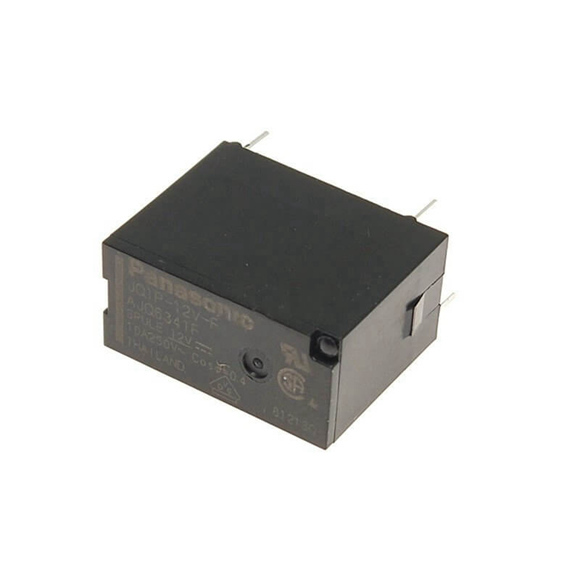

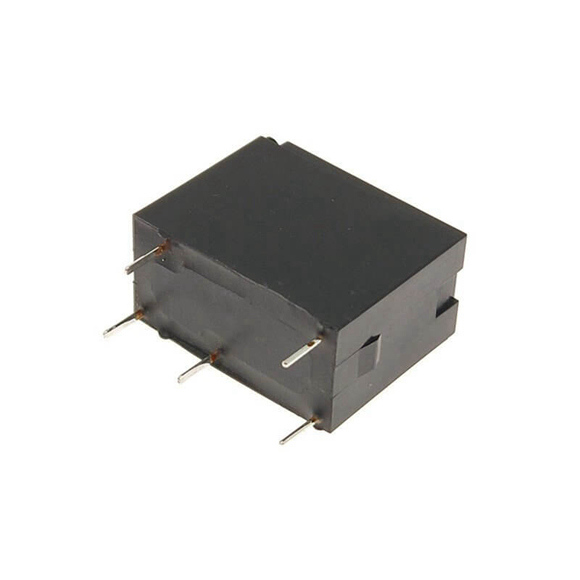

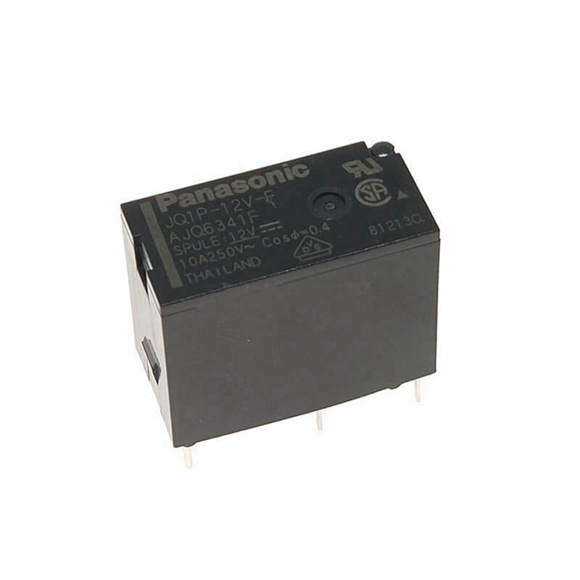

| Item | SpecificationsStandard type High capacity type | |||
| Arrangement | 1 Form A | 1 Form C | 1 Form A | 1 Form C |
| 5 V DC | JQ1a-5V-F | JQ1-5V-F | JQ1aP-5V-F | JQ1P-5V-F |
| 6 V DC | JQ1a-6V-F | JQ1-6V-F | JQ1aP-6V-F | JQ1P-6V-F |
| 9 V DC | JQ1a-9V-F | JQ1-9V-F | JQ1aP-9V-F | JQ1P-9V-F |
| 12 V DC | JQ1a-12V-F | JQ1-12V-F | JQ1aP-12V-F | JQ1P-12V-F |
| 18 V DC | JQ1a-18V-F | JQ1-18V-F | JQ1aP-18V-F | JQ1P-18V-F |
| 24 V DC | JQ1a-24V-F | JQ1-24V-F | JQ1aP-24V-F | JQ1P-24V-F |
| 48 V DC | – | JQ1-48V-F | – | JQ1P-48V-F |
| Contact resistance (Initial) | Max. 100 mΩ (By voltage drop 6 V DC 1 A) | |||
| Contact material | AgSnO2 type | |||
|
Nominal switching capacity (resistive load) |
5 A 125 V AC, 2 A 250 V AC, 5 A 30 V DC |
N.O. side:5 A 125 V AC,
2 A 250 V AC, 3 A 30 V AC N.C. side: 2 A 125 V AC, 1 A 250 V AC, 1 A 30 V DC |
10 A 125 V AC, 5 A 250 V AC, 5 A 30 V DC |
N.O. side: 10 A 125 V AC, 5 A 250 V AC,5 A 30 V AC
N.C. side: 3 A 125 V AC, 2 A 250 V AC, 1 A 30 V DC |
| Max. switching power (resistive load) | 625 VA, 150 W | N.O. side: 625 VA, 90 WN.C. side: 250 VA, 30 W | 1,250 V AC, 150 W | N.O. side: 1,250 VA, 150 WN.C. side: 500 V AC, 30 W |
| Max. switching voltage | 250 V AC, 110 V DC (0.3 A) | |||
| Max. switching current | N.O.: 5 A, N.C.: 2 A | N.O.: 10 A, N.C.: 3 A | ||
| Nominal operating power | 200 mW | 400 mW | 200 mW | 400 mW |
| Min. switching capacity (reference value)*1 | 100 mA, 5 V DC | |||
| Insulation resistance (Initial) | Min. 1,000 MΩ (at 500 V DC) Measurement at same location as “Breakdown voltage” section. | |||
| Between open contacts | 1,000 Vrms for 1 min. | 750 Vrms for 1 min. | 1,000 Vrms for 1 min. | 750 Vrms for 1 min. |
| Between contact and coil | 4,000 Vrms for 1 min. (Detection current: 10 mA) | |||
| Temperature rise (coil) | Max. 45°C(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 5 A, at 70°C) | Max. 45°C(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 10 A, at 70°C) | ||
| Surge breakdown voltage*2 (Between contact and coil) (Initial) | 8,000 V | |||
| Operate time (at nominal voltage) (at 20°C) (Initial) | Max. 20 ms (excluding contact bounce time.) | |||
| Release time (at nominal voltage) (at 20°C) (Initial) | Max. 10 ms (excluding contact bounce time) (Without diode) | |||
| Shock resistance Functional | 294 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10µs.) | |||
| Destructive | 980 m/s2 (Half-wave pulse of sine wave: 6 ms.) | |||
| Vibration resistanceFunctional | 10 to 55 Hz at double amplitude of 1.6 mm (Detection time: 10 µs.) | |||
| Destructive | 10 to 55 Hz at double amplitude of 2.0 mm | |||
| Mechanical (at 180 times / min.) | Min. 107 | |||
| Conditions for operation, transport and storage*3 | Ambient temperature: –40°C to +70°C (class E insulation),–40°C to +85°C *4 (class B insulation)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
|||
| Max. operating speed | 20 times / min. (at nominal switching capacity) | |||
| Unit weight | Approx. 7 g | |||
