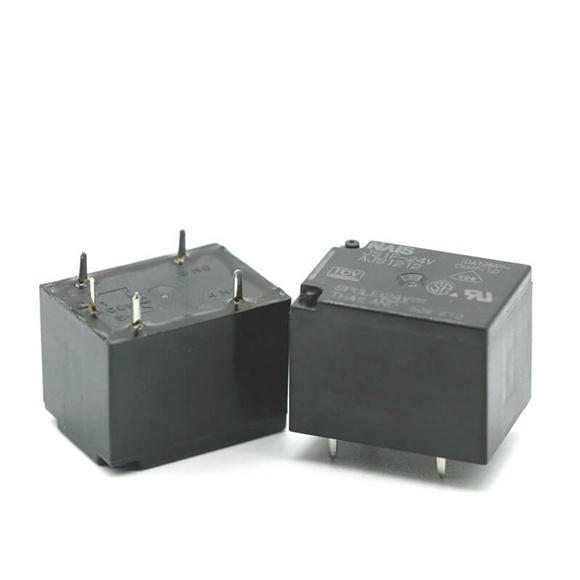

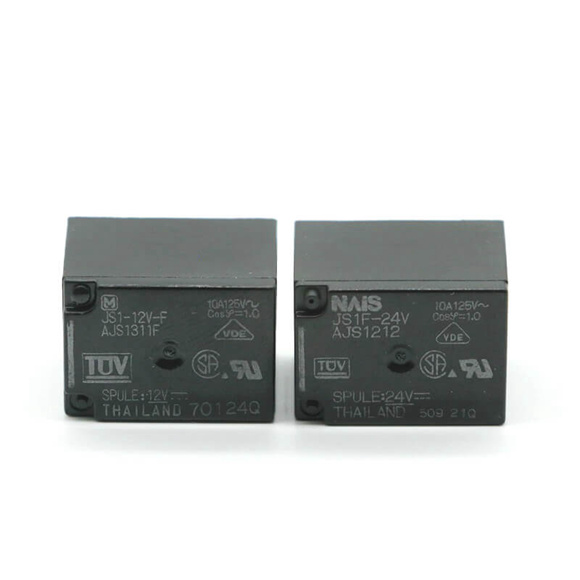

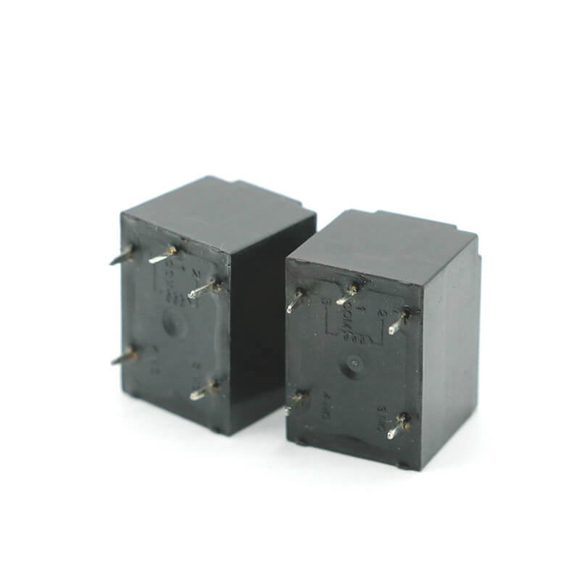

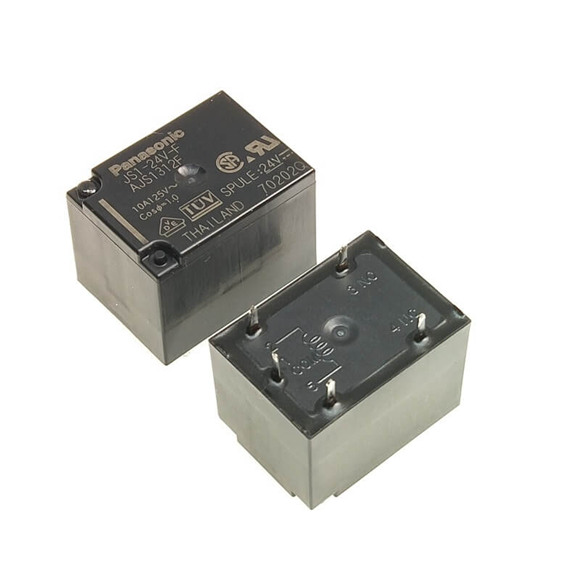

| Item | Specifications | |||||
| Contact
arrangement |
Rated coil voltage | Sealed | Sealed | Flux-resistant | Flux-resistant | |
| 1 Form A | 5 V DC | JS1a-5V-F | AJS3319F | JS1aF-5V-F | AJS3219F | |
| 1 Form A | 6 V DC | JS1a-6V-F | AJS3310F | JS1aF-6V-F | AJS3210F | |
| 1 Form A | 9 V DC | JS1a-9V-F | AJS3315F | JS1aF-9V-F | AJS3215F | |
| 1 Form A | 12 V DC | JS1a-12V-F | AJS3311F | JS1aF-12V-F | AJS3211F | |
| 1 Form A | 18 V DC | JS1a-18V-F | AJS3316F | JS1aF-18V-F | AJS3216F | |
| 1 Form A | 24 V DC | JS1a-24V-F | AJS3312F | JS1aF-24V-F | AJS3212F | |
| 1 Form A | 48 V DC | JS1a-48V-F | AJS3313F | JS1aF-48V-F | AJS3213F | |
| Contact arrangement | 1 Form A, 1 Form C | 1 Form A Long life | ||||
| Contact resistance (Initial) |
Max. 100mΩ (by voltage drop 6V DC 1A) | |||||
| Contact material | AgSnO2 type | |||||
| Contact rating (resistive) |
10A 125V AC, 6A 277V AC, 10A 250V AC (N.O. only), 5A 30V DC |
10A 125V AC, 10A 277V AC, 5A 30V DC |
||||
| Max. switching power (resistive) |
2,500VA 150W (N.O.), 1,662VA 150W (N.C.) |
2,770VA 150W | ||||
| Max. switching voltage | 277V AC, 100V DC (0.5A) | |||||
| Max. switching current | 10A (AC), 5A (DC) | |||||
| Min. switching load (reference value) *1 |
100mA, 5V DC | |||||
| Insulation resistance (Initial) | Min. 100MΩ (at 500V DC, Measured portion is the same as the case of dielectric strength.) | |||||
| Between open contacts | 750Vrms for 1 min (detection current: 10mA) | |||||
| Between contact and coil | 1,500Vrms for 1 min (detection current: 10mA) | |||||
| Operate time | Max. 10ms (at rated coil voltage, at 20°C, without bounce) | |||||
| Release time | Max. 10ms (at rated coil voltage, at 20°C, without bounce, without diode) | |||||
| Functional | Min. 98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10µs) | |||||
| Destructive | Min. 980 m/s2 (half-sine shock pulse: 6 ms) | |||||
| Functional | 10 to 55 Hz (at double amplitude of 1.6 mm, detection time: 10µs) | |||||
| Destructive | 10 to 55 Hz (at double amplitude of 2 mm) | |||||
| Mechanical life | Min. 107 (switching frequency: 180 times/min) | |||||
| Conditions for usage, transport and storage *2 |
Ambient temperature: –40 to +70°C (Class E), –40 to +85°C (Class B) *3, –40 to +105°C (Class F) *3 Humidity: 5 to 85% RH (Avoid icing and condensation) |
Ambient temperature: –40 to +85°C (Class B) *3, Humidity: 5 to 85% RH (Avoid icing and condensation) |
||||
| Unit weight | Approx. 12 g | |||||
