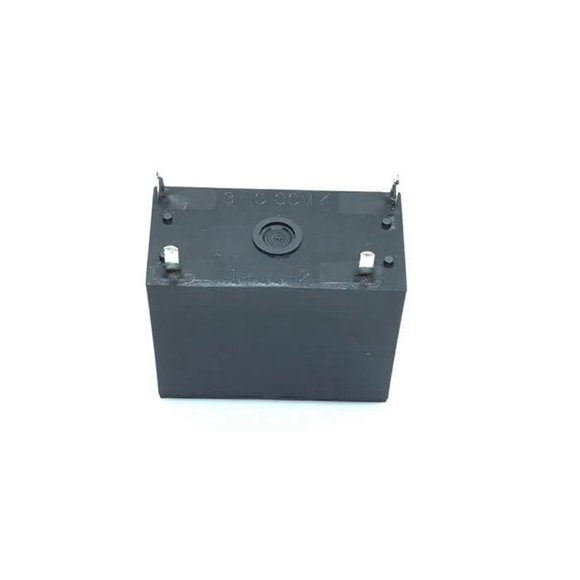

| Item | Specifications | |||||
| Type | Standard type | High capacity type | ||||
| Contact Gap | Contact Gap 1.5 mm .059 inch type Contact Gap 1.8 mm .071 inch type | Contact Gap 1.5 mm .059 inch type | Contact Gap 1.8 mm .071 inch type | |||
| Arrangement | 1 Form A | |||||
| Nominal coil voltage | Standard type | High capacity type | Standard type | High capacity type | ||
| 9V DC | ALFG1PF09 | ALFG2PF09 | ALFG1PF091 | ALFG2PF091 | ||

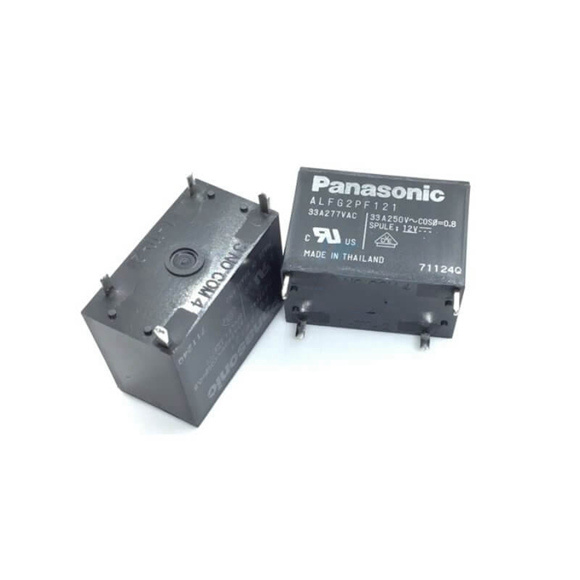

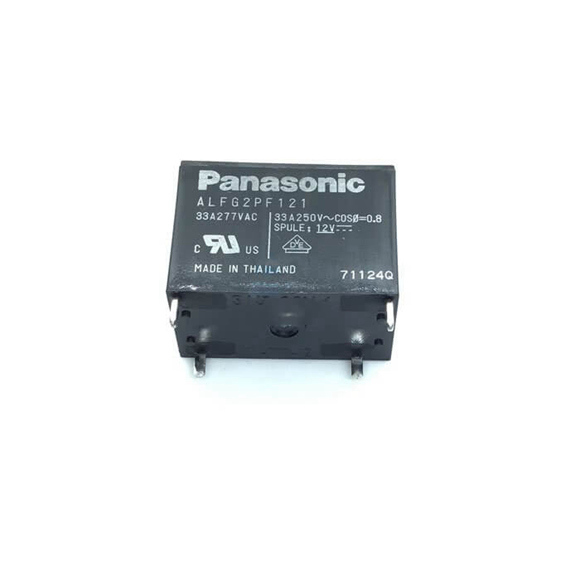

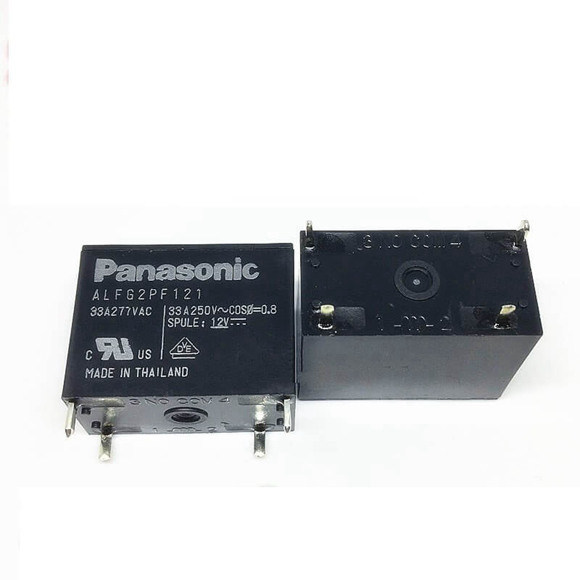

| 12V DC | ALFG1PF12 | ALFG2PF12 | ALFG1PF121 | ALFG2PF121 | ||
| 18V DC | ALFG1PF18 | ALFG2PF18 | ALFG1PF181 | ALFG2PF181 | ||
| 24V DC | ALFG1PF24 | ALFG2PF24 | ALFG1PF241 | ALFG2PF241 | ||
| Contact resistance (Initial) | Max. 100 mΩ (By voltage drop 6 V DC 1A) | |||||
| Contact material | AgSnO2 type | |||||
| Nominal switching capacity | 22A 250V AC | 31A 250V AC | 33A 250V AC | |||
| Max. switching power | 5,500VA | 7,750VA | 8,250VA | |||
| Max. switching voltage | 250V AC | |||||
| Max. switching current | 22A (AC) | 31A (AC) | 33A (AC) | |||
| Nominal operating power | 1,400mW | |||||
| Min. switching capacity (Reference value)*1 | 100mA 5V DC | |||||
| Insulation resistance (Initial) | Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section. | |||||
| Between open contacts | 2,500 Vrms for 1 min. (Detection current: 10 mA) | |||||
| Between contact and coil | 4,000 Vrms for 1 min. (Detection current: 10 mA) | |||||
| Surge breakdown voltage*2 (Between contact and coil) (Initial) | 6,000 V | |||||
| Coil holding voltage*3 | 35 to 120%V (contact carrying current: 22A, at 20°C 68°F) 45 to 80%V (contact carrying current: 22A, at 85°C 185°F) | 35 to 120%V (contact carrying current: 31A, at 20°C 68°F) 45 to 80%V (contact carrying current: 31A, at 85°C 185°F) | 35 to 120%V (contact carrying current: 33A, at 20°C 68°F) 45 to 80%V (contact carrying current: 33A, at 85°C 185°F) | |||
| Operate time (at 20°C 68°F) (Initial) | Max. 20 ms (at nominal coil voltage excluding contact bounce time.) | |||||
| Release time (at 20°C 68°F) (Initial) | Max. 10 ms (at nominal coil voltage excluding contact bounce time, without diode) | |||||
| Shock resistance Functional | Min. 100 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10µs.) | |||||
| Destructive | Min. 1,000 m/s2 (Half-wave pulse of sine wave: 6 ms.) | |||||
| Vibration resistance Functional | 10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs.) | |||||
| Destructive | 10 to 55 Hz at double amplitude of 1.5 mm | |||||
| Mechanical | Contact Gap 1.5 mm .059 inch type: Min. 106 (at 180 times/min.)Contact Gap 1.8 mm .071 inch type: Min. 5×105 (at 180 times/min.) | |||||
| Electrical Resistive load | 22A 250V AC, Min. 3×104(at 20 times/min.) | — | — | |||
|
Inductive load |
Destructive: 22A 250V AC (cosφ = 0.8),Min. 3×104 (on:off = 0.1s:10s) Over load: 35A 250V AC (cosφ = 0.8),
Min. 50 (on:off = 0.1s:10s) |
Destructive: 31A 250V AC (cosφ = 0.8),Min. 3×104 (on:off = 0.1s:10s) Over load: 47A 250V AC (cosφ = 0.8),
Min. 50 (on:off = 0.1s:10s) |
Destructive: 33A 250V AC (cosφ = 0.8),Min. 3×104 (on:off = 0.1s:10s) Over load: 50A 250V AC (cosφ = 0.8),
Min. 50 (on:off = 0.1s:10s) |
|||
| Conditions for operation, transport and storage*4 | Ambient temperature: –40°C to +60°C –40°F to +140°F (When nominal coil voltage applied)–40°C to +85°C –40°F to +185°F (Coil holding voltage is when 45 to 80%V
of nominal coil voltage is applied.) Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) Air pressure: 86 to 106 kPa |
|||||
| Unit Weight | Approx. 23 g .81 oz | |||||
