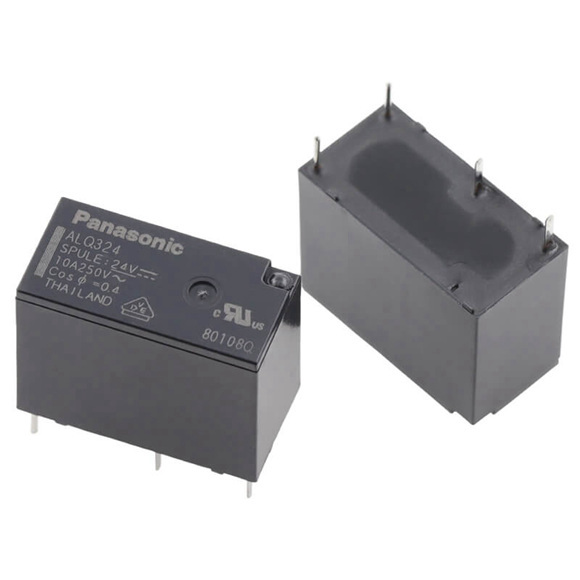

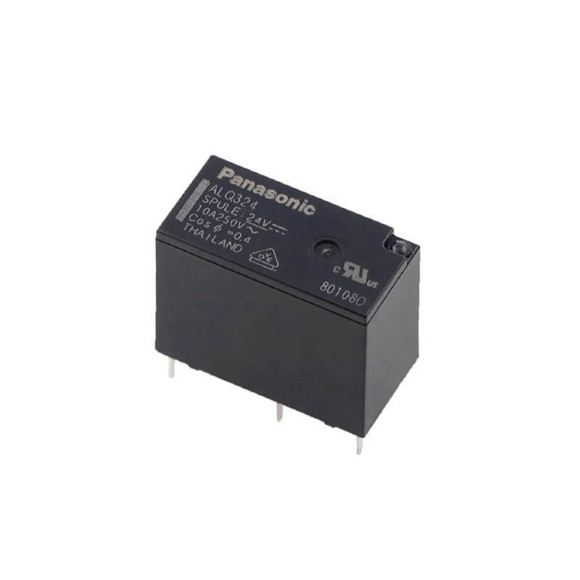

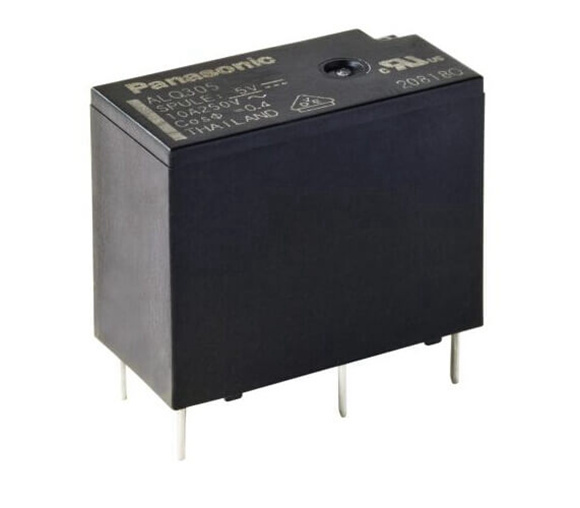

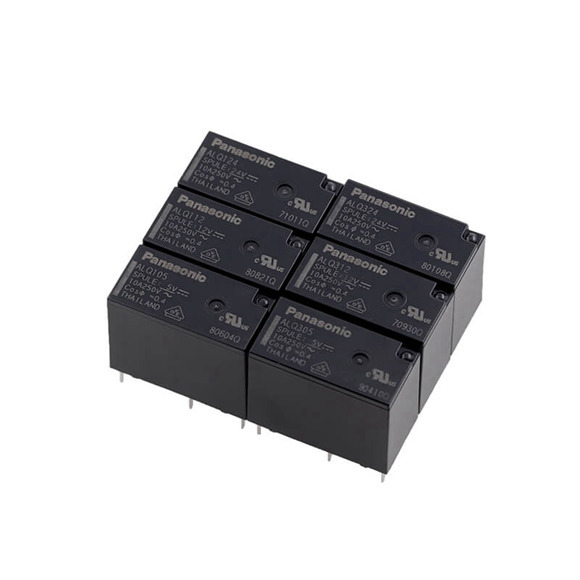

Panasonic Power LQ Relays ALQ1F05 ALQ1F06 ALQ1F09 ALQ1F12 ALQ1F18 ALQ1F24

Series#: Panasonic Power Relays

Product Details

Qty:

Specification

Item Specifications
Contact arrangement 1 Form A 1 Form C
5 V DC ALQ305 ALQ3F05 ALQ105 ALQ1F05
6 V DC ALQ306 ALQ3F06 ALQ106 ALQ1F06
9 V DC ALQ309 ALQ3F09 ALQ109 ALQ1F09
12 V DC ALQ312 ALQ3F12 ALQ112 ALQ1F12
18 V DC ALQ318 ALQ3F18 ALQ118 ALQ1F18
24 V DC ALQ324 ALQ3F24 ALQ124 ALQ1F24
Contact resistance (initial) Max. 100 mΩ (by voltage drop 6 V DC 1 A)
Contact material AgNi type
 Contact rating (resistive)  5 A 30 V DC, 10 A 125 V AC, 5 A 250 V AC Form A contact: 10 A 125 V AC, 5 A 250 V AC, 5 A 30 V DCForm B contact: 3 A 125 V AC, 2 A 250 V AC, 1 A 30 V DC
Max. switching power(resistive)  1,250 VA, 150 W Form A contact: 1,250 VA, 150 WForm B contact: 500 VA, 30 W
Max. switching voltage 250 V AC
 Max. switching current  10 A (125 V AC) Form A contact: 10 A (125 V AC)Form B contact: 3 A (125 V AC)
Min. switching load(reference value)*1 100 mA 5 V DC
Insulation resistance (initial) Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength)
Between open contacts 1,000 Vrms for 1 min (detection current: 10 mA) 750 Vrms for 1 min (detection current: 10 mA)
Between contact and coil 4,000 Vrms for 1 min (detection current: 10 mA)
Between contact and coil 8,000 V
Operate time Max. 20 ms (at rated coil voltage, at 20°C, without bounce)
Release time Max. 20 ms (at rated coil voltage, at 20°C, without bounce, with diode)
 Functional  294 m/s2 (half-sine shock pulse: 11 ms, detection

time: 10 μs)

 196 m/s2 (half-sine shock pulse: 11 ms, detection

time: 10 μs)

Destructive 980 m/s2 (half-sine shock pulse: 6 ms)
Functional 10 to 55 Hz (at double amplitude of 1.6 mm, detection time: 10 μs)
Destructive 10 to 55 Hz (at double amplitude of 2 mm)
Mechanical life Min. 107 (at 180 times/min)
 Conditions for usage,

transport and storage*3

 Ambient temperature: -40 to +85°C*4

Humidity: 5 to 85% RH (Avoid icing and condensation)

Unit weight Approx. 7 g
