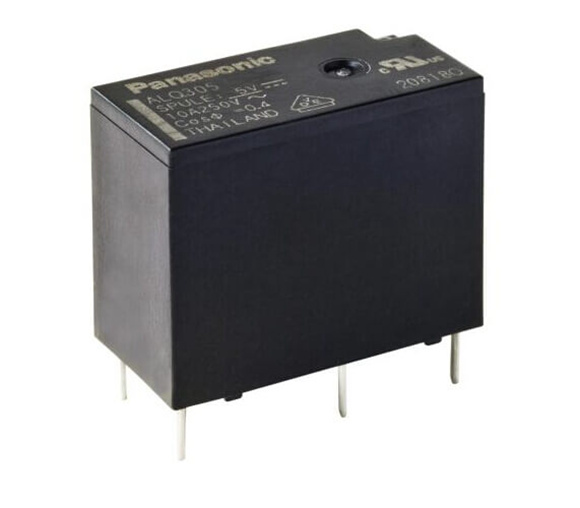

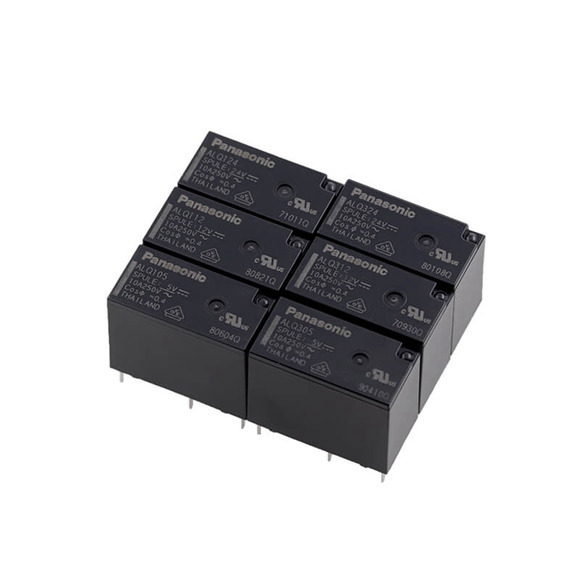

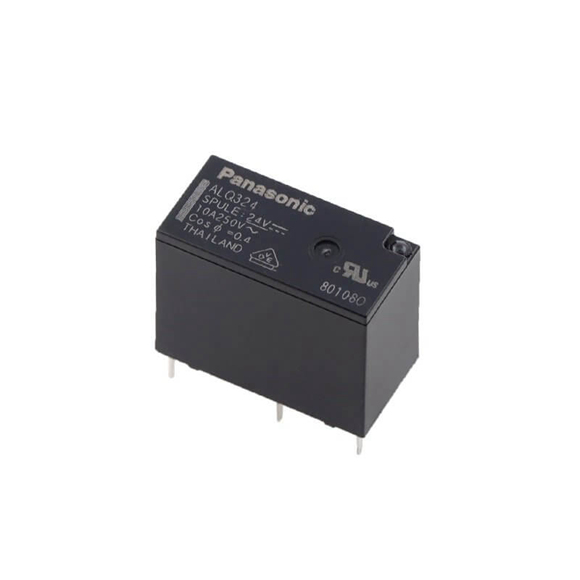

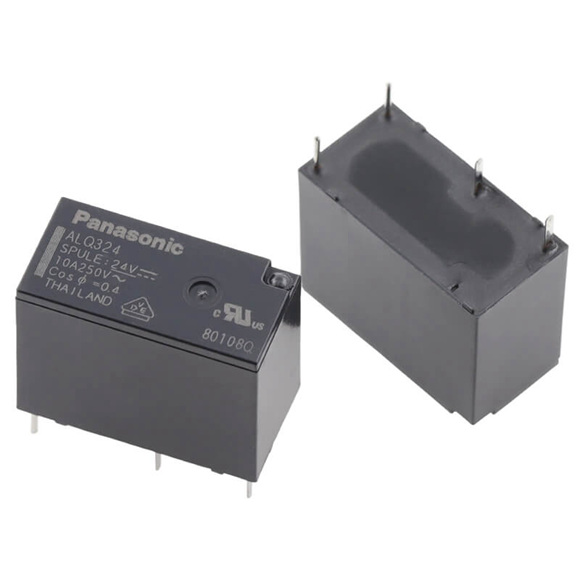

Panasonic Power LQ Relays ALQ305 ALQ306 ALQ309 ALQ312 ALQ318 ALQ324
We are First Class Panasonic Relays dealer and Panasonic Relays distributor in China.
We can Supply All kinds of Panasonic Relays,such as Panasonic Control Panel Relays,Panasonic PhotoMOS Couplers,Panasonic Power Relays,Panasonic Signal Relays and Ect.
100% Original and new,In stock by Panasonic Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Specifications
Contact arrangement	1 Form A		1 Form C
5 V DC	ALQ305	ALQ3F05		ALQ105	ALQ1F05
6 V DC	ALQ306	ALQ3F06		ALQ106	ALQ1F06
9 V DC	ALQ309	ALQ3F09		ALQ109	ALQ1F09
12 V DC	ALQ312	ALQ3F12		ALQ112	ALQ1F12
18 V DC	ALQ318	ALQ3F18		ALQ118	ALQ1F18
24 V DC	ALQ324	ALQ3F24		ALQ124	ALQ1F24
Contact resistance (initial)	Max. 100 mΩ (by voltage drop 6 V DC 1 A)
Contact material	AgNi type
Contact rating (resistive)	5 A 30 V DC, 10 A 125 V AC, 5 A 250 V AC		Form A contact: 10 A 125 V AC, 5 A 250 V AC, 5 A 30 V DC Form B contact: 3 A 125 V AC, 2 A 250 V AC, 1 A 30 V DC
Max. switching power (resistive)	1,250 VA, 150 W		Form A contact: 1,250 VA, 150 W Form B contact: 500 VA, 30 W
Max. switching voltage	250 V AC
Max. switching current	10 A (125 V AC)		Form A contact: 10 A (125 V AC) Form B contact: 3 A (125 V AC)
Min. switching load (reference value)*1	100 mA 5 V DC
Insulation resistance (initial)	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength)
Between open contacts	1,000 Vrms for 1 min (detection current: 10 mA)		750 Vrms for 1 min (detection current: 10 mA)
Between contact and coil	4,000 Vrms for 1 min (detection current: 10 mA)
Between contact and coil	8,000 V
Operate time	Max. 20 ms (at rated coil voltage, at 20°C, without bounce)
Release time	Max. 20 ms (at rated coil voltage, at 20°C, without bounce, with diode)
Functional	294 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs)		196 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs)
Destructive	980 m/s2 (half-sine shock pulse: 6 ms)
Functional	10 to 55 Hz (at double amplitude of 1.6 mm, detection time: 10 μs)
Destructive	10 to 55 Hz (at double amplitude of 2 mm)
Mechanical life	Min. 107 (at 180 times/min)
Conditions for usage, transport and storage*3	Ambient temperature: -40 to +85°C*4 Humidity: 5 to 85% RH (Avoid icing and condensation)
Unit weight	Approx. 7 g
