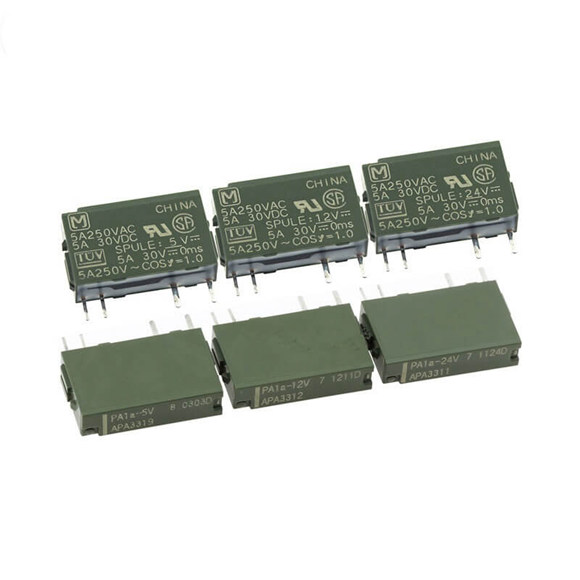

Panasonic Power PA relays PA1a-5V PA1a-6V PA1a-9V PA1a-12V PA1a-18V PA1a-24V

Series#: Panasonic Power Relays

Product Details

Qty:

Specification

Item Specifications
Arrangement 1 Form A (Bifurcated)
Contact arrangement Nominal coil voltage Part No.
1 Form A 5V DC PA1a-5V
1 Form A 6V DC PA1a-6V
1 Form A 9V DC PA1a-9V
1 Form A 12V DC PA1a-12V
1 Form A 18V DC PA1a-18V
1 Form A 24V DC PA1a-24V
Contact resistance (Initial) Max. 30 mΩ (By voltage drop 6 V DC 1A)
Contact material Au-clad AgNi type
Nominal switching capacity (resistive load) 5 A 250 V AC, 5 A 30 V DC
Max. switching power (resistive load) 1,250 VA, 150 W
Max. switching voltage 250 V (AC), 110 V (DC)
Max. switching current 5 A
Nominal operating power 120 mW (5 to 18 V DC), 180 mW (24 V DC)
Min. switching capacity (Reference value)*1 100mA 100mV DC
Insulation resistance (Initial) Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
Breakdown voltage (Initial)

Between open contacts

1,000 Vrms for 1min. (Detection current: 10mA.)
Between contact and coil 2,000 Vrms for 1min. (Detection current: 10mA.)
Surge breakdown voltage (Initial)

Between contacts and coil*2

4,000 V
Temperature rise (coil) (at 20°C 68°F) Max. 45°C

(By resistive method, nominal coil voltage applied to the coil, nominal switching capacity.)

Operate time (at nominal voltage) (at 20°C 68°F) Max. 10 ms
Release time (at nominal voltage) (at 20°C 68°F) Max. 5 ms
Shock resistance Functional Min. 147 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10ms.)
Shock resistance Destructive Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Vibration resistance Functional 10 to 55 Hz at double amplitude of 2.5 mm (Detection time: 10ms.)
Vibration resistance Destructive 10 to 55 Hz at double amplitude of 3.5 mm
Mechanical Min. 2´107 (at 180 times/min.)
Electrical Min. 105 (3 A 250 V AC, 30 V DC, resistive load)

Min. 5´104 (5 A 250 V AC, 30 V DC, resistive load) (at 20 times/min.)

Conditions for operation, transport and storage*3 Ambient temperature: –40°C to 70°C –40°F to 158°F;

Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

Max. operating speed 20 times/min. (at nominal switching capacity)
Approx. 3 g .15 oz
