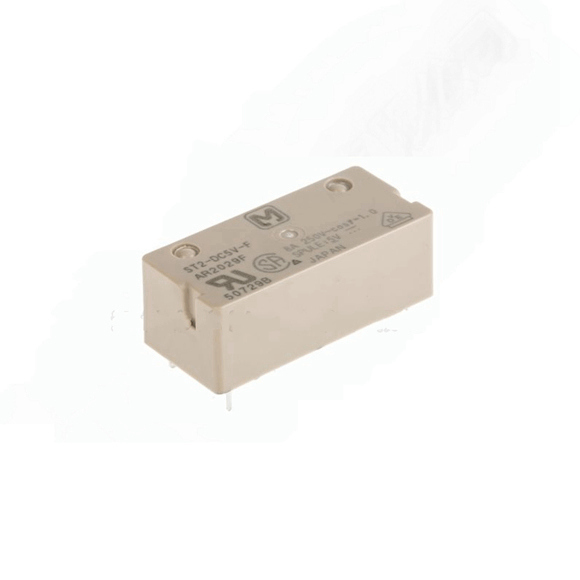

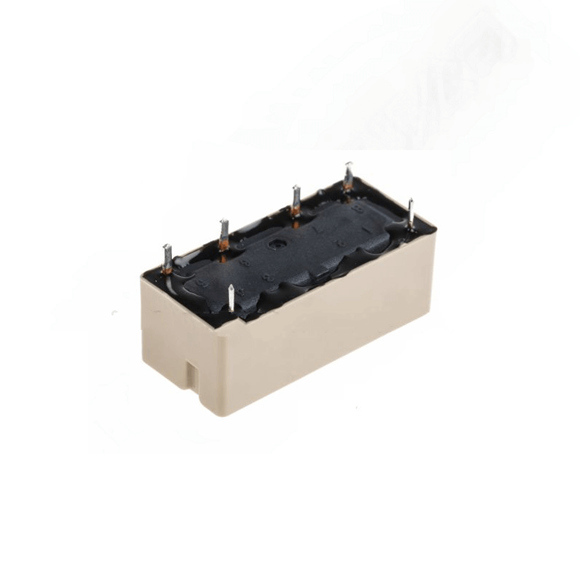

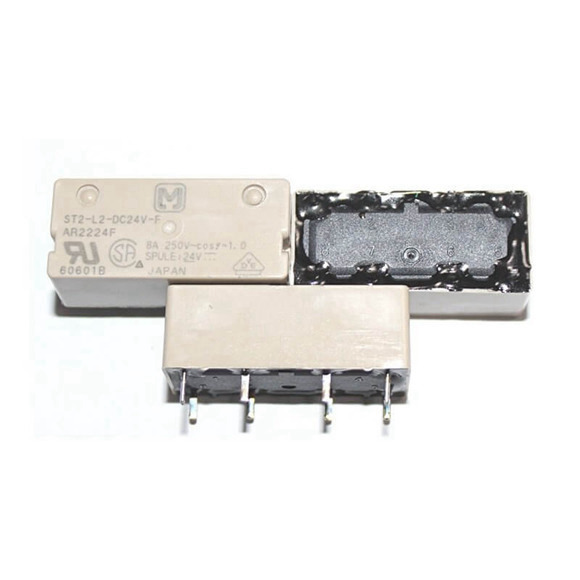

Panasonic Power ST Relays ST1-L2-DC3V-F ST1-L2-DC5V-F ST1-L2-DC6V-F ST1-L2-DC9V-F
We are First Class Panasonic Relays dealer and Panasonic Relays distributor in China.
We can Supply All kinds of Panasonic Relays,such as Panasonic Control Panel Relays,Panasonic PhotoMOS Couplers,Panasonic Power Relays,Panasonic Signal Relays and Ect.
100% Original and new,In stock by Panasonic Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Specifications
Arrangement	1 Form A 1 Form B, 2 Form A
Nominal coil voltage	Single side stable	2 coil latching
3V DC	ST1-DC3V-F	ST1-L2-DC3V-F
5V DC	ST1-DC5V-F	ST1-L2-DC5V-F
6V DC	ST1-DC6V-F	ST1-L2-DC6V-F
9V DC	ST1-DC9V-F	ST1-L2-DC9V-F
12V DC	ST1-DC12V-F	ST1-L2-DC12V-F
24V DC	ST1-DC24V-F	ST1-L2-DC24V-F
48V DC	ST1-DC48V-F	ST1-L2-DC48V-F
Contact material	Au-flashed AgSnO2 type
Contact resistance (Initial)	Max. 30 mΩ (By voltage drop 6 V DC 1A)
Max. switching power (resistive load)	3,040 VA, 150 W
Max. switching voltage	380 V AC, 250 V DC
Max. switching current	8 A
Min. switching capacity (Reference value)*¹	100 mA 5V DC
Insulation resistance (Initial)(at 25°C, 50% relative humidity)	Min. 1,000MΩ (at 500V DC)Measurement at same location as “Breakdown voltage” section.
Between open contacts	1,200 Vrms for 1 min. (Detection current: 10 mA)
Between contact sets	2,000 Vrms for 1 min. (Detection current: 10 mA)
Between contact and coil	3,750 Vrms for 1 min. (Detection current: 10 mA)
Surge breakdown voltage (Initial)*²	6,000 V (Between contact and coil)
Operate time [Set time] (at 20°C 68°F)	Max. 15 ms [Max. 15 ms](Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time [Reset time] (at 20°C 68°F)	Max. 10 ms [Max. 15 ms](Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)
Shock resistanceFunctional	Min. 196 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
Destructive	Min. 980 m/s² (Half-wave pulse of sine wave: 6 ms.)
Vibration resistanceFunctional	10 to 55 Hz at double amplitude of 2 mm (Detection time: 10µs.)
Destructive	10 to 55 Hz at double amplitude of 3 mm
Mechanical	Min. 10⁷ (at 180 times/min.)
Conditions for operation, transport and storage*³	Ambient temperature: –40°C to +60°C –40°F to +140°F;Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Unit Weight	Approx. 10g .353 oz
