| Type | Cylindrical type | |||||
| Model No. | GH-2SE | GH-3SE | GH-5SE | GH-8SE | GH-F8SE | |
| Applicable amplifier | GA-311 | |||||
| Stable sensing range (Note 2) |
0 to 0.6 mm 0 to 0.024 in |
0 to 0.8 mm 0 to 0.031 in |
0 to 1.0 mm 0 to 0.039 in |
0 to 2.0 mm 0 to 0.079 in |
||
| Max. operation distance (Note 2) |
1.2 mm 0.047 in |
1.8 mm 0.071 in |
2.4 mm 0.094 in |
4.0 mm 0.157 in |
||
| Standard sensing object | Iron sheet 5 × 5 × t 1 mm 0.197 × 0.197 × t 0.039 in |
Iron sheet 10 × 10 × t 1 mm 0.394 × 0.394 × t 0.039 in | ||||
| Hysteresis (Note 3) |
0.07 mm 0.003 in or less |
0.05 mm 0.002 in or less |
0.04 mm 0.002 in or less |
|||
| Repeatability (Note 3) |
Along sensing axis, perpendicular to sensing axis: 1 μm 0.039 mil or less | |||||
| Protection | IP50 (IEC) | IP67 (IEC), IP67G (Note 4) | ||||
| Ambient temperature | -10 to +60 ℃ 14 to +140 ℉, Storage: -20 to +70 ℃ -4 to +158 ℉ | |||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each | |||||
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions five times each | |||||
| Temperature characteristics (Note 5) |
Within ±7 % | Within ±5 % | Within ±4 % | |||
| Material | Enclosure: Stainless steel (SUS303) Sensing part: PVC |
Enclosure: Stainless steel (SUS303) Sensing part: ABS |
Enclosure: Stainless steel (SUS303) Sensing part: PAR |
Enclosure: Stainless steel (SUS303) Sensing part: ABS |
Enclosure: Stainless steel (SUS303) Sensing part: Fluorine resin |
|
| Cable (Note 6) | Oil-resistant [Spatter-resistant type: Spatter-resistant cable (Sheath: Fluorine resin)] high-frequency coaxial cable, 3 m 9.843 ft long, with a connector at the end |
|||||
| Weight | Net weight: 15 g approx. Gross weight: 30 g approx. |
Net weight: 35 g approx. Gross weight: 45 g approx. |
Net weight: 40 g approx. Gross weight: 55 g approx. |
Net weight: 55 g approx. Gross weight: 70 g approx. |
||

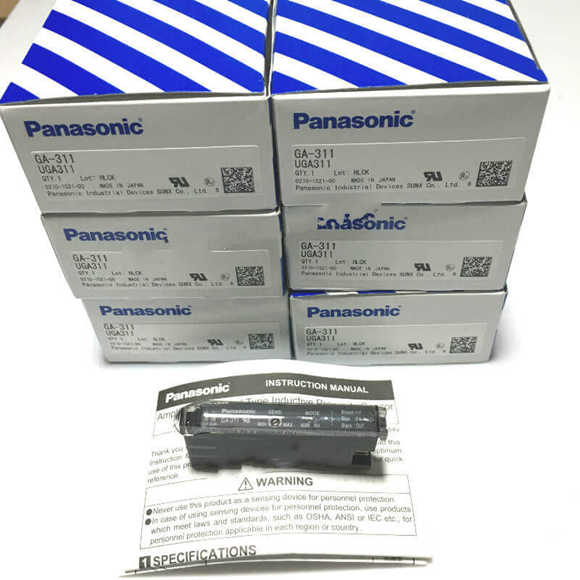

| Model No. | GA-311 | |||||
| Applicable sensor head | GH-□SE | |||||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | |||||
| Current consumption | 25 mA or less | |||||
| Output | NPN open-collector transistor ・Maximum sink current: 100 mA (50 mA, if five, or more, amplifiers are connected in cascade.) ・Applied voltage: 30 V DC or less (between sensing output and 0 V) ・Residual voltage: 1 V or less [at 100 mA (at 50 mA, if five, or more, amplifiers are connected in cascade) sink current.] |
|||||
| Max. response frequency | 3.3 kHz | |||||
| Operation indicator | Orange LED (lights up when the output is ON) | |||||
| Disconnection alarm indicator | Red LED (lights up when the sensor head cable is disconnected or misconnected) | |||||
| Sensitivity adjuster | 18-turn potentiometer | |||||
| Ambient temperature | -10 to +60 ℃ +14 to +140 ℉ (If 4 to 7 units are connected in cascade : -10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ |
|||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |||||
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||||
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each | |||||
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each | |||||
| Temperature characteristics (Note 2) | Within ±5 % | |||||
| Material | Enclosure: PBT, Cover: Polycarbonate | |||||
| Connecting method | Connector (Note 3) | |||||
| Cable length | Total length up to 100 m 328.084 ft (if 5 to 8 units are connected in cascade: 50 m 164.042 ft, if 9 to 16 units are connected in cascade: 20 m 65.617 ft) is possible with 0.3 mm2, or more, cable. |
|||||
| Weight | Net weight: 15 g approx., Gross weight: 40 g approx. | |||||
