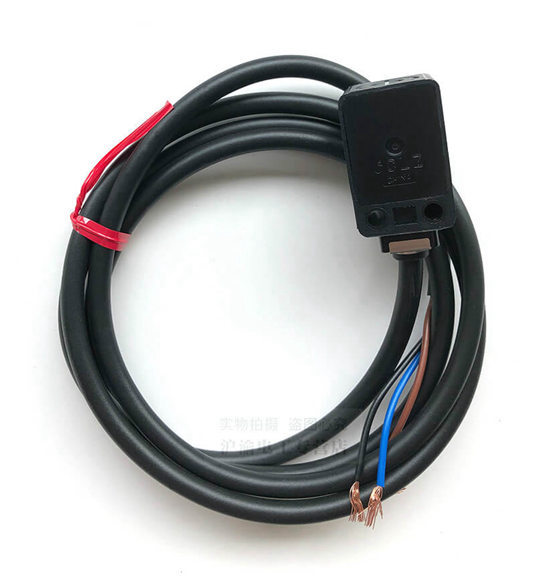

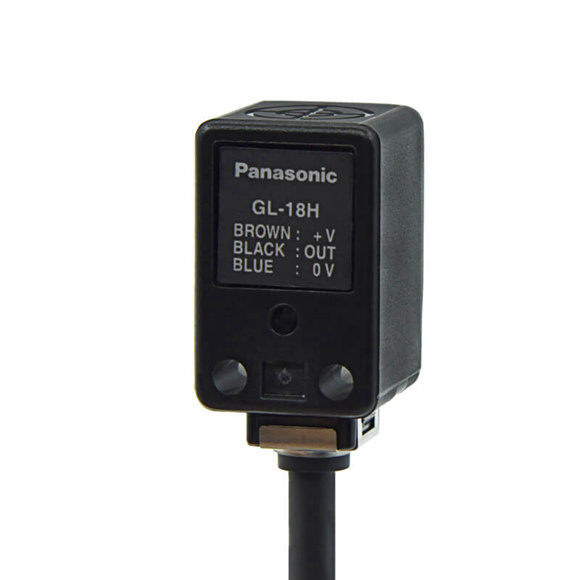

Panasonic Proximity Sensor GL-18HL GL-18HLI GL-18HLB

Series#: Panasonic Proximity Sensor

Product Details

Qty:

Specification

Type Long sensing range
Type Different frequency
Model No. GL-18HL GL-18HLI GL-18HLB
CE marking directive compliance EMC Directive, RoHS Directive
Max. operation distance
(Note 2)
12 mm 0.472 in ± 10 %
Stable sensing range
(Note 2)
0 to 10 mm 0 to 0.394 in
Standard sensing object Iron sheet 40 x 40 x t 1 mm
1.575 x 1.575 x t 0.039 in
Hysteresis 15 % or less of operation distance
(with standard sensing object)
Supply voltage 10 to 30 V DC Ripple P-P 10 % or less
Current consumption 10 mA or less
Output NPN open-collector transistor
– Maximum sink current: 100 mA
– Applied voltage: 30 V DC or less (between output and 0 V)
– Residual voltage: 1.5 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)


Utilization category

DC-12 or DC-13
Output operation Normally open Normally closed
Max. response frequency 500Hz
Operation indicator Red LED (lights up when the output is ON)
Pollution degree 3 (Industrial environment)
Protection IP67 (IEC), IP67G (Note 3)
Ambient temperature -25 to +70 ℃ -13 to +158 ℉,
Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient humidity 45 to 85 % RH, Storage: 45 to 85 % RH
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions three times each
Cable 0.3 mm2 3-core oil resistant cabtyre cable, 1 m 3.281 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight : 45 g approx.
Accessory MS-GL18HL (Sensor mounting bracket): 1 set
