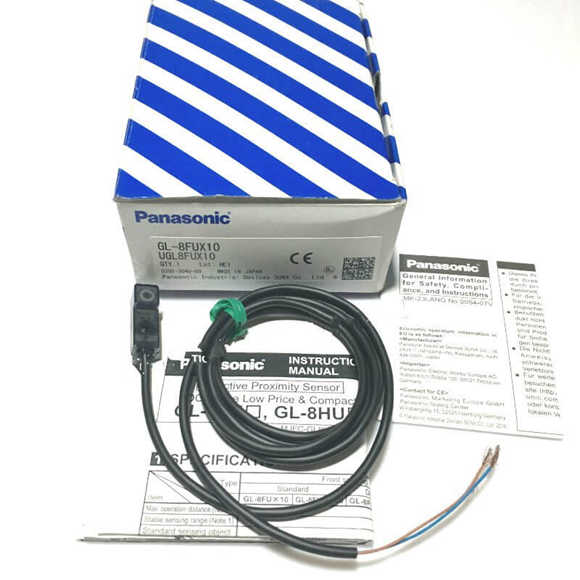

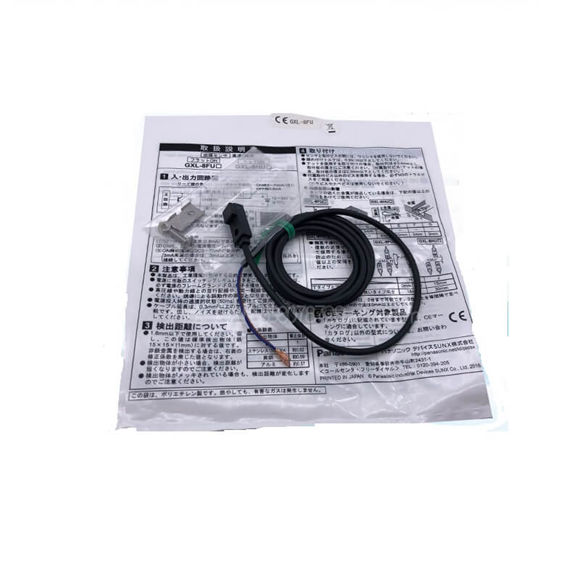

Panasonic Proximity Sensor GXL-8FU GXL-8HU GXL-15FU GXL-15HU GXL-15FLU GXL-15HLU

Series#: Panasonic Proximity Sensor

Product Details

Qty:

Specification

Type GXL-8 type
Type Front sensing Top sensing
Standard Model No. GXL-8FU GXL-8HU
CE marking directive compliance EMC Directive, RoHS Directive
Max. operation distance (Note 3) 2.5 mm 0.098 in ± 20%
Stable sensing range (Note 3) 0 to 1.8 mm 0 to 0.071 in
Standard sensing object Iron sheet 15 x 15 x t 1 mm
0.591 x 0.591 x t 0.039 in
Hysteresis 20 % or less of operation distance
(with standard sensing object)
Repeatability Along sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or less
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption (Note 4) 0.8 mA or less
Output Non-contact DC 2-wire type
・Load current: 3 to 70 mA (Note 5)
・Residual voltage: 3 V or less (Note 6)
Utilization category DC-12 or DC-13
Short-circuit protection Incorporated
Max. response frequency 1 kHz
Operation indicator Normally closed type: Red LED
(lights up when the output is ON)
2-color indicator Normally open type: Lights up in green under stable sensing condition
Lights up in red under unstable sensing condition
Pollution degree 3 (Industrial environment)
Protection IP67 (IEC), IP67G (Note 7)
Ambient temperature -25 to +70 ℃ -13 to +158 ℉, Storage: -30 to +80 ℃ -22 to +176 ℉
Ambient humidity 45 to 85 % RH, Storage: 35 to 95 % RH
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions three times each
Material Enclosure: PBT, Indicator part: Polyarylate
Cable (Note 8) 0.15 mm2 2-core oil, heat and cold resistant cable, 1 m 3.281 ft long
Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 12 g approx.
Accessories MS-GXL8-4
(Sensor mounting bracket): 1 set
