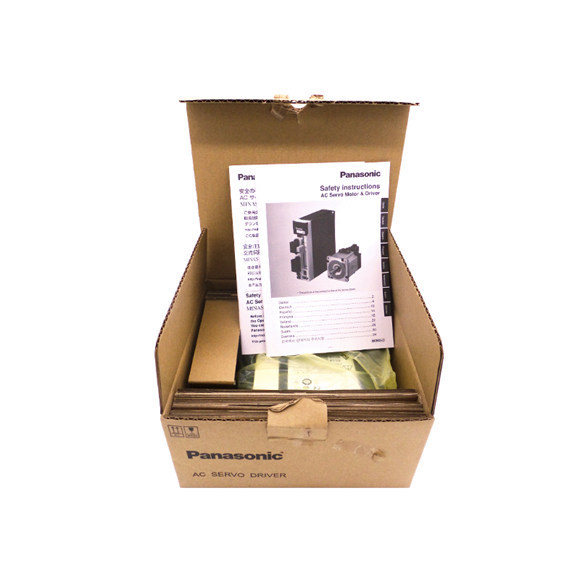

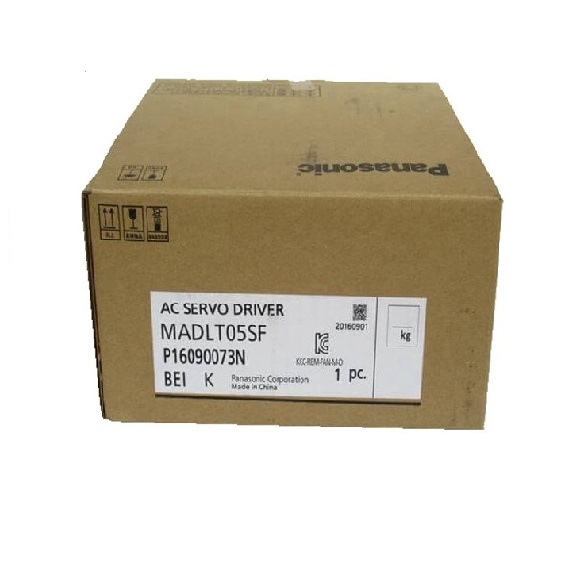

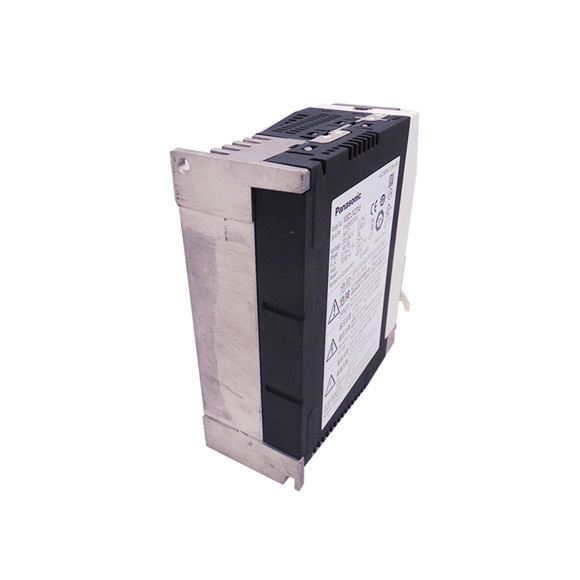

Panasonic Servo Driver MINAS A4 1.5kW MDDDT5540/MDDDT5540003/MDDDT5540053/052

Series#: Panasonic Servo Drive

Product Details

  • Panasonic Servo Driver MINAS A4 1.5kW MDDDT5540/MDDDT5540003/MDDDT5540053/052
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Driver MINAS A4 Panasonic Servo Driver MINAS A4
100V Main circuit Single phase, 100 – 115V + 10% 50/60Hz–15%
 Control circuit Single phase, 100 – 115V + 10% 50/60Hz–15%
200V A and B-frame Single phase, 200 – 240V + 10% 50/60Hz–15%
C and D-frame Single/3-phase, 200 – 240V + 10% 50/60Hz–15%
E and F-frame 3-phase, 200 – 230V + 10% 50/60Hz–15%
A toD-frame Single phase, 200 – 240V + 10% 50/60Hz–15%
E and F-frame Single phase, 200 – 230V + 10% 50/60Hz–15%
Temperature Operating : 0 to 55˚C, Storage : –20 to + 80˚C
Humidity Both operating and storage : 90%RH or less (free from condensation)
Altitude 1000m or lower
Vibration 5.88m/s2 or less, 10 to 60Hz (No continuous use at resonance frequency)
Control method IGBT PWM Sinusoidal wave drive
 Encoder feedback 17-bit (131072 resolution) absolute/incremental encoder,2500P/r (10000 resolution) incremental encoder
 External scale feedback AT500 series by Mitutoyo (Resolution 0.05[mm] , max. speed 2[ m/s] )ST771 by Mitutoyo (Resolution 0.5[mm] , max. speed 2[ m/s] )




Control signal

Input

10 Inputs(1) Servo-ON, (2) Control mode switching, (3) Gain switching/Torque limit switching, (4) Alarm clear Other inputs vary depending on the control mode.
 Output 6 outputs(1) Servo alarm, (2) Servo ready, (3) Release signal of external brake (4) Zero speed detection,

(5) Torque in-limit. Other outputs vary depending on the control mode.

analog signal

Input

3 inputs (16Bit A/D : 1 input, 10Bit A/D : 2 inputs)




Output

2 outputs (for monitoring)(1) Velocity monitor (Monitoring of actual motor speed or command speed is enabled. Select the content and scale with parameter.), (2) Torque monitor (Monitoring of torque command, (approx.. 3V/rated torque)), deviation counter or full-closed deviation is enabled.

Select the content or scale with parameter.)





Pulse signal

Input

4 inputsSelect the exclusive input for line driver or photo-coupler input with parameter.
 Output 4 outputsFeed out the encoder pulse (A, B and Z-phase) or external scale pulse (EXA, EXB and EXZ-phase) in line driver. Z-phase and EXZ-phase pulse is also fed out in open collector.
Communication function RS232 1 : 1 communication to a host with RS23 interface is enabled.
RS485 1 : n communication up to 15 axes to a host with RS485 interface is enabled.
Front panel (1) 5 keys (MODE, SET, UP, DOWN, SHIFT), (2) LED (6-digit)
 Regeneration A and B-frame : no built-in regenerative resistor (external resistor only) C to F-frame :Built-in regenerative resistor (external resistor is also enabled.)
 Dynamic brake Setup of action sequence at Power-OFF, Servo-OFF, at protective function activation andover-travel inhibit input is enabled.
 Control mode Switching among the following 7 mode is enabled, (1) Position control, (2) Velocity control,(3) Toque control, (4) Position/Velocity control, (5) Position/Torque control,

(6) Velocity/Torque control and (7) Full-closed control.
