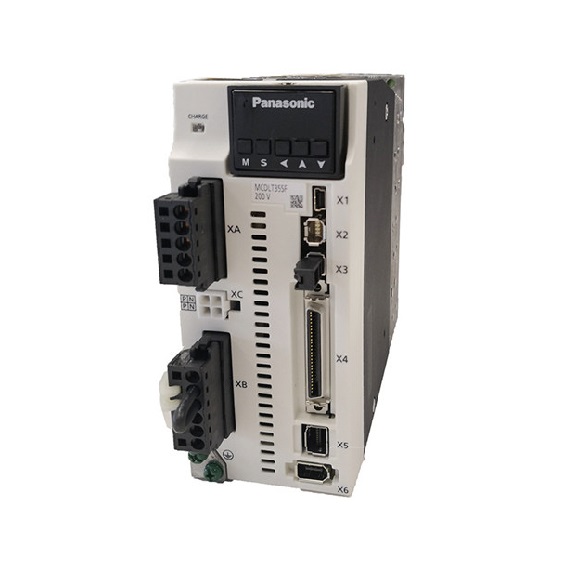

Panasonic Servo Driver MINAS A6 1000W MDDLT55SF

Series#: Panasonic Servo Drive

Product Details

  • Panasonic Servo Driver MINAS A6 1000W MDDLT55SF
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Driver MINAS A6 MDDLN45SE MDDLN45SG MDDLT45SF MDDLN55SE MDDLN55SG MDDLT55SF MEDLN83SE MEDLN83SG MEDLT83SF MEDLN93SE MEDLN93SG MEDLT93SF
Power supply input Single phase/ 3 phase 200 V Single phase/ 3 phase 200 V 3 phase 200V 3 phase 200V
Maximum output current 24 A 40 A 60 A 80 A
Rotary encoder Resolution:8388608 P/r Resolution:8388608 P/r Resolution:8388608 P/r Resolution:8388608 P/r
Regenerative resistor Built-in Built-in Built-in Built-in
Auto gain tuning function Provided Provided Provided Provided
Dynamic brake function Provided Provided Provided Provided
Absolute system Available NOTE) Available NOTE) Available NOTE) Available NOTE)
Operation temperature 0 – 55 °C 0 – 55 °C 0 – 55 °C 0 – 55 °C
Control power cable HVSF 0.75 mm2 HVSF 0.75 mm2 HVSF 0.75 mm2 HVSF 0.75 mm2
Control power cable AWG18 AWG18 AWG18 AWG18
Main power supply cable HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2
Main power supply cable AWG14 AWG14 AWG14 AWG14
Ground cable HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2
Ground cable AWG14 AWG14 AWG14 AWG14
Motor cable HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 3.5 mm2
Motor cable AWG14 AWG14 AWG14 AWG12
Inrush current(Main power supply) (*1) Max. 29 A Max. 29 A Max. 29 A Max. 29 A
Inrush current(Control power supply) (*1) Max. 14 A Max. 14 A Max. 14 A Max. 14 A
Weight Approx 2.1 kg Approx 2.1 kg Approx 2.7 kg Approx 2.7 kg
Dimensions Size D Size D Size E Size E
