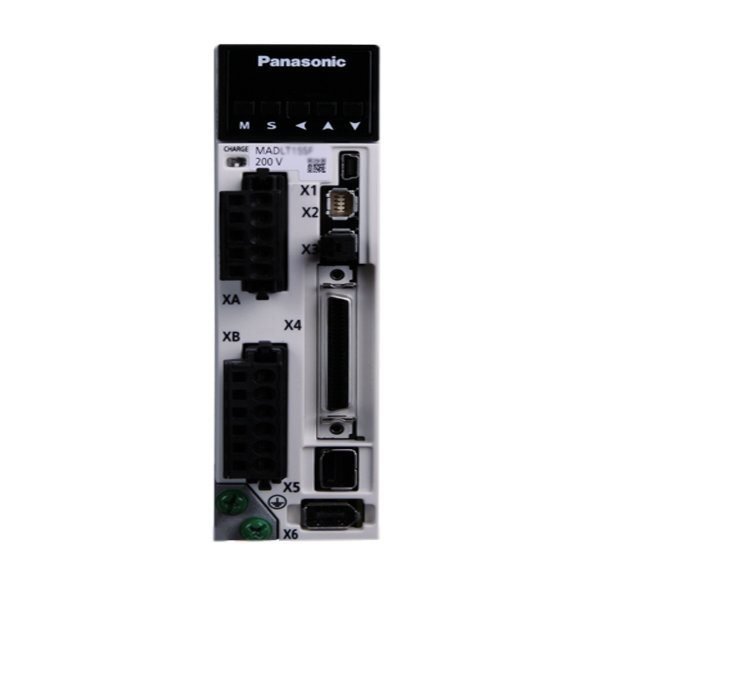

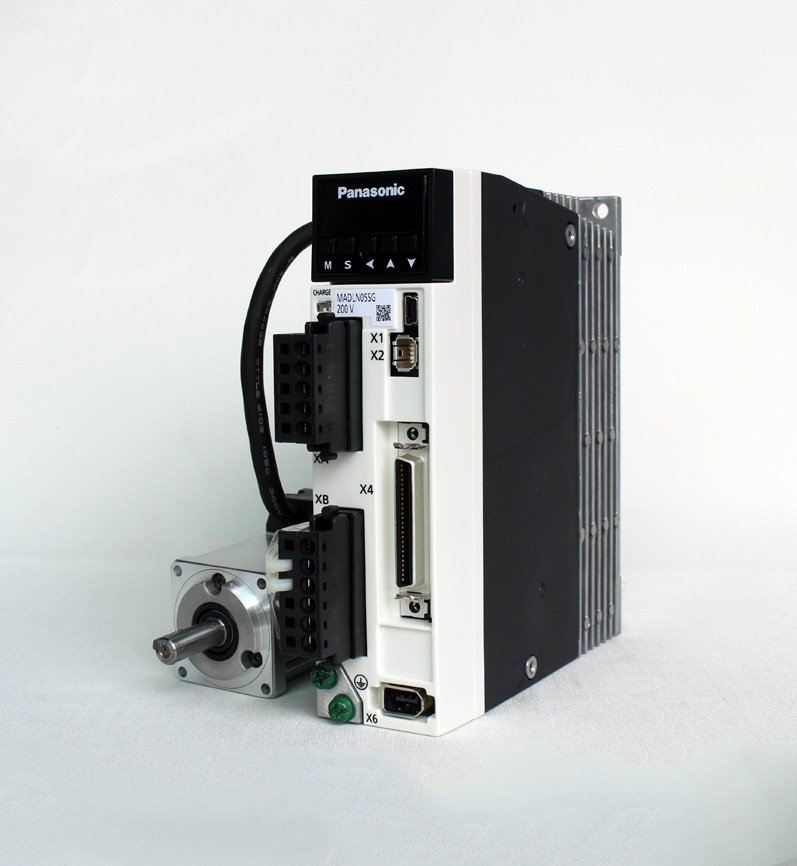

Panasonic Servo Driver MINAS A6 50w MADLN05NE

Panasonic Servo Driver MINAS A6 50w MADLN05NE
Multifunctional software for quick adjustment support
Enhanced position detecting resolution enables smoother and more precise positioning.
High-speed response, high-precision positioning for quick and accurate movement
Small, light, powerful^*1 and speedy
Easy and quick setting, shortening conventional settling time by approx. 64%^*1.
Realized 3.2 kHz frequency response to improve productivity.
Lineup of motors protected by high dust-proof, high heat-resistant oil seal (With protective lip)

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Model No.	MADLN01SE MADLN01SG MADLT01SF	MADLN11SE MADLN11SG MADLT11SF	MADLN05SE MADLN05SG MADLT05SF	MADLN15SE MADLN15SG MADLT15SF
Power supply input	Single phase 100 V	Single phase 100 V	Single phase/ 3 phase 200 V	Single phase/ 3 phase 200 V
Maximum output current	6 A	8 A	6 A	8 A
Rotary encoder	Resolution:8388608 P/r	Resolution:8388608 P/r	Resolution:8388608 P/r	Resolution:8388608 P/r
Regenerative resistor	Externally connected	Externally connected	Externally connected	Externally connected
Auto gain tuning function	Provided	Provided	Provided	Provided
Dynamic brake function	Provided	Provided	Provided	Provided
Absolute system	Available NOTE)	Available NOTE)	Available NOTE)	Available NOTE)
Operation temperature	0 – 55 °C	0 – 55 °C	0 – 55 °C	0 – 55 °C
Control power cable	HVSF 0.75 mm2	HVSF 0.75 mm2	HVSF 0.75 mm2	HVSF 0.75 mm2
Control power cable	AWG18	AWG18	AWG18	AWG18
Main power supply cable	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2
Main power supply cable	AWG14 – 18	AWG14 – 18	AWG14 – 18	AWG14 – 18
Ground cable	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2
Ground cable	AWG14	AWG14	AWG14	AWG14
Motor cable	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2	HVSF0.75 – 2.0 mm2
Motor cable	AWG14 – 18	AWG14 – 18	AWG14 – 18	AWG14 – 18
Inrush current(Main power supply) (*1)	Max. 7 A	Max. 7 A	Max. 14 A	Max. 14 A
Inrush current(Control power supply) (*1)	Max. 7 A	Max. 7 A	Max. 14 A	Max. 14 A
Weight	Approx 0.8 kg	Approx 0.8 kg	Approx 0.8 kg	Approx 0.8 kg
Dimensions	Size A	Size A	Size A	Size A
